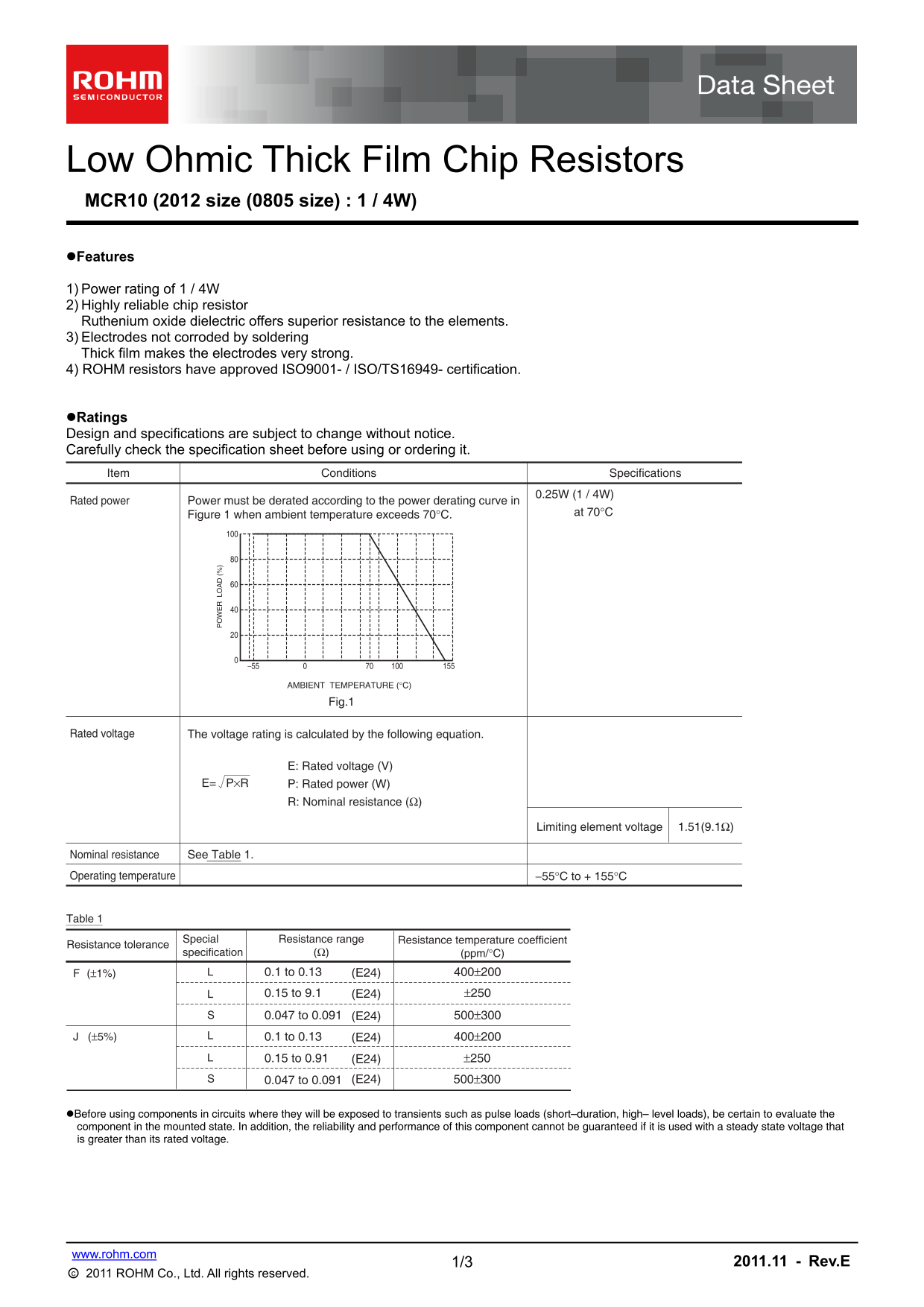

Page 1 Text Content
Low Ohmic Thick Film Chip Resistors MCR10 (2012 size (0805 size) : 1 / 4W) Features 1) Power rating of 1 / 4W 2) Highly reliable chip resistor Ruthenium oxide dielectric offers superior resistance to the elements. 3) Electrodes not corroded by soldering Thick film makes the electrodes very strong. 4) ROHM resistors have approved ISO9001- / ISO/TS16949- certification.
Ratings Design and specifications are subject to change without notice. Carefully check the specification sheet before using or ordering it. Item Conditions Specifications
Rated power Power must be derated according to the power derating curve in
Figure 1 when ambient temperature exceeds 70°C. at 70°C
AMBIENT TEMPERATURE (°C)
Fig.1
Rated voltage The voltage rating is calculated by the following equation.
E: Rated voltage (V)
E= P×R P: Rated power (W)
R: Nominal resistance (Ω)
Limiting element voltage 1.51(9.1Ω)
Nominal resistance See Table 1.
Operating temperature −55°C to + 155°C
Table 1
Special Resistance range Resistance temperature coefficient
Resistance tolerance
specification (Ω) (ppm/°C)
(±1%) 0.1 to 0.13 (E24) 400±200 0.15 to 9.1 (E24) ±250
0.047 to 0.091 (E24) 500±300
J (±5%) 0.1 to 0.13 (E24) 400±200
0.15 to 0.91 (E24) ±250
(E24) 500±3000.047 to 0.091
Before using components in circuits where they will be exposed to transients such as pulse loads (short–duration, high– level loads), be certain to evaluate the component in the mounted state. In addition, the reliability and performance of this component cannot be guaranteed if it is used with a steady state voltage that is greater than its rated voltage.
www.rohm.com
1/3 2011.11 - Rev.E
○c 2011 ROHM Co., Ltd. All rights reserved.
