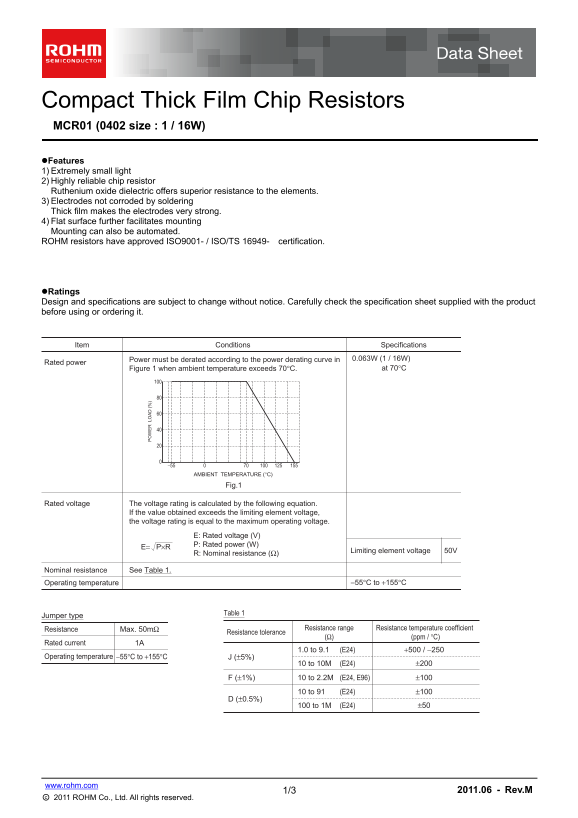

Compact Thick Film Chip Resistors MCR01 (0402 size : 1 / 16W) Features 1) Extremely small light 2) Highly reliable chip resistor Ruthenium oxide dielectric offers superior resistance to the elements. 3) Electrodes not corroded by soldering Thick film makes the electrodes very strong. 4) Flat surface further facilitates mounting Mounting can also be automated. ROHM resistors have approved ISO9001- / ISO/TS 16949- certification.
Ratings Design and specifications are subject to change without notice. Carefully check the specification sheet supplied with the product before using or ordering it.
Item Conditions Specifications
Power must be derated according to the power derating curve in 0.063W (1 / 16W)
Rated power
Figure 1 when ambient temperature exceeds 70°C. at 70°C
AMBIENT TEMPERATURE (°C)
Fig.1
Rated voltage The voltage rating is calculated by the following equation. If the value obtained exceeds the limiting element voltage, the voltage rating is equal to the maximum operating voltage.
E: Rated voltage (V) P: Rated power (W)
Limiting element voltage 50V
R: Nominal resistance (Ω)
Nominal resistance See Table 1.
Operating temperature −55°C to +155°C
Table 1
Jumper type
Resistance Max. 50mΩ Resistance range Resistance temperature coefficient
Resistance tolerance
(Ω) (ppm / °C)
Rated current 1A
1.0 to 9.1 (E24) +500 / −250
Operating temperature −55°C to +155°C J (±5%)
(E24) ±20010 to 10M
F (±1%) 10 to 2.2M (E24, E96) ±100
10 to 91 (E24) ±100
(E24) ±50100 to 1M
www.rohm.com
1/3 2011.06 - Rev.M
○c 2011 ROHM Co., Ltd. All rights reserved.
