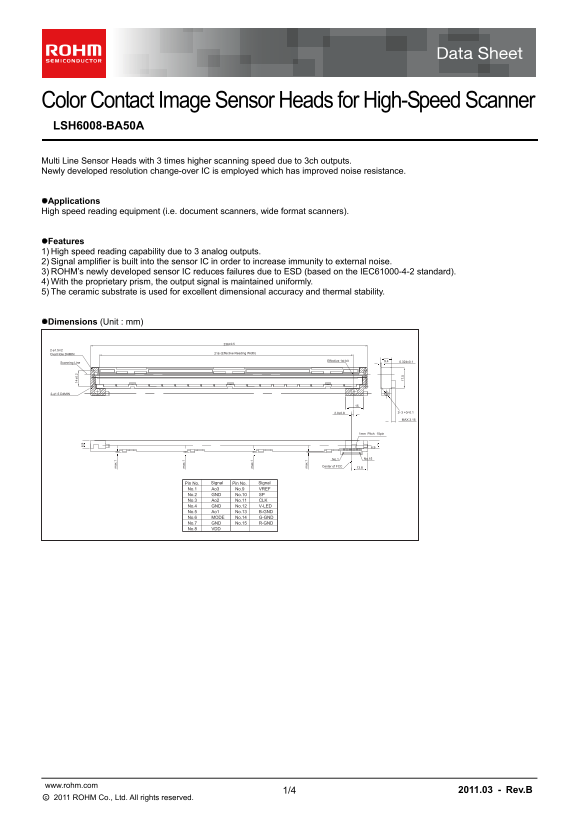

Page 1 Text Content
Color Contact Image Sensor Heads for High-Speed Scanner
ax .1
LSH6008-BA50A
Multi Line Sensor Heads with 3 times higher scanning speed due to 3ch outputs. Newly developed resolution change-over IC is employed which has improved noise resistance.
ax .1
Applications High speed reading equipment (i.e. document scanners, wide format scanners).
Features
1) High speed reading capability due to 3 analog outputs. ax .1
2) Signal amplifier is built into the sensor IC in order to increase immunity to external noise. 3) ROHM’s newly developed sensor IC reduces failures due to ESD (based on the IEC61000-4-2 standard). 4) With the proprietary prism, the output signal is maintained uniformly. 5) The ceramic substrate is used for excellent dimensional accuracy and thermal stability.
ax .1
Dimensions (Unit : mm)
Oval Hole D4MIN (Effective Reading Width)216
Scanning Line Effective 1st bit 9.4 0.324±0.1
2-φ1.5 D4MIN
MAX.3.15
15pin Pitch1mm
No.1 No.15
13.8Center of FCC
Pin No. Signal Signal Pin No. No.1 Ao3 No.9 VREF No.2 GND No.10 SP No.3 Ao2 No.11 CLK No.4 GND No.12 V-LED
No.5 Ao1 No.13 B-GND No.6 MODE No.14 G-GND No.7 GND No.15 R-GND
No.8 VDD
www.rohm.com
1/4 2011.03 - Rev.B
○c 2011 ROHM Co., Ltd. All rights reserved.
