ROHM LSH1208-BD70A User Guide
Summary
Elevate your capture efficiency with these multi line sensor heads, engineered for high-speed reading of wide formats. Featuring six analog output channels and dual light sources, this advanced sensor minimizes shadows from wrinkles while ensuring exceptional anti-noise performance through a shielded IC structure. This documentation provides comprehensive technical details, including complete pin assignments, operational timing charts, and key specifications for varying DPI modes (up to 1200 dpi). Ideal for manufacturers of high-speed scanners and document reading equipment requiring reliable image quality and accuracy.

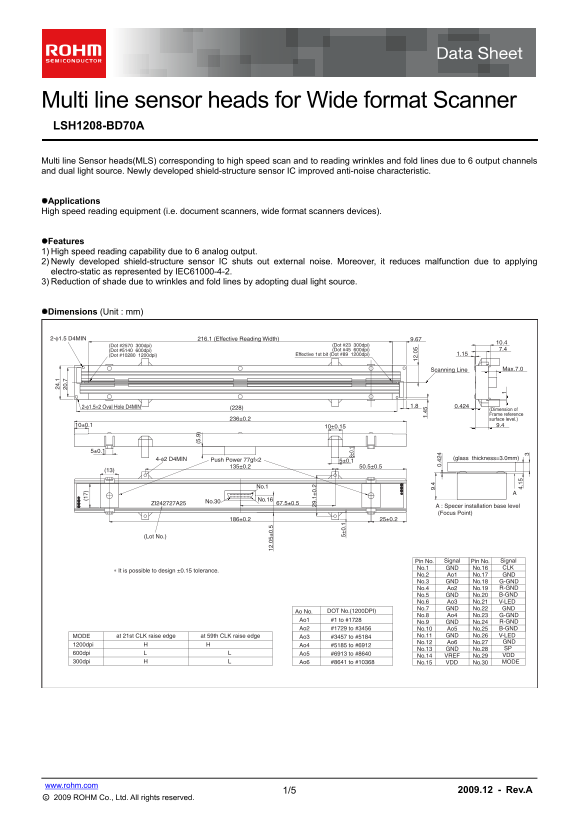

Page 1 Text Content
Multi line sensor heads for Wide format Scanner LSH1208-BD70A Multi line Sensor heads(MLS) corresponding to high speed scan and to reading wrinkles and fold lines due to 6 output channels and dual light source. Newly developed shield-structure sensor IC improved anti-noise characteristic.
Applications High speed reading equipment (i.e. document scanners, wide format scanners devices).
Features 1) High speed reading capability due to 6 analog output. 2) Newly developed shield-structure sensor IC shuts out external noise. Moreover, it reduces malfunction due to applying electro-static as represented by IEC61000-4-2. 3) Reduction of shade due to wrinkles and fold lines by adopting dual light source.
Dimensions (Unit : mm)
www.rohm.com
1/5 2009.12 - Rev.A
○c 2009 ROHM Co., Ltd. All rights reserved.
Page Summary Contents For ROHM LSH1208-BD70A User Guide
Manual Details
| Brand | ROHM |
|---|---|
| Pages | 6 |
| File Size | 249.76 KB |
| Published | June 20, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
How does this sensor head minimize reading errors from wrinkles or folds?
It incorporates a dual light source to reduce shading caused by wrinkles and fold lines.
What is the maximum effective scanning width of the unit?
The effective scanning width is -216 mm.
Can I use this product for highly critical applications, like medical instruments?
No. It is not designed or manufactured for equipment requiring extremely high reliability, such as medical instruments or aerospace machinery.
