ROHM IMX17 Product Manual
Summary
This dual-packaged NPN silicon transistor provides two independent emitter chips in a compact SMT format, offering high collector current and reduced installation space for designers. This manual details the product's technical specifications, including absolute maximum ratings, comprehensive electrical characteristics, packaging guides, and performance curves. It is intended for engineers designing standard electronic equipment such as audio-visual, office automation, or communication devices, but users must note that it is not suitable for life-critical systems like aerospace or medical machinery.

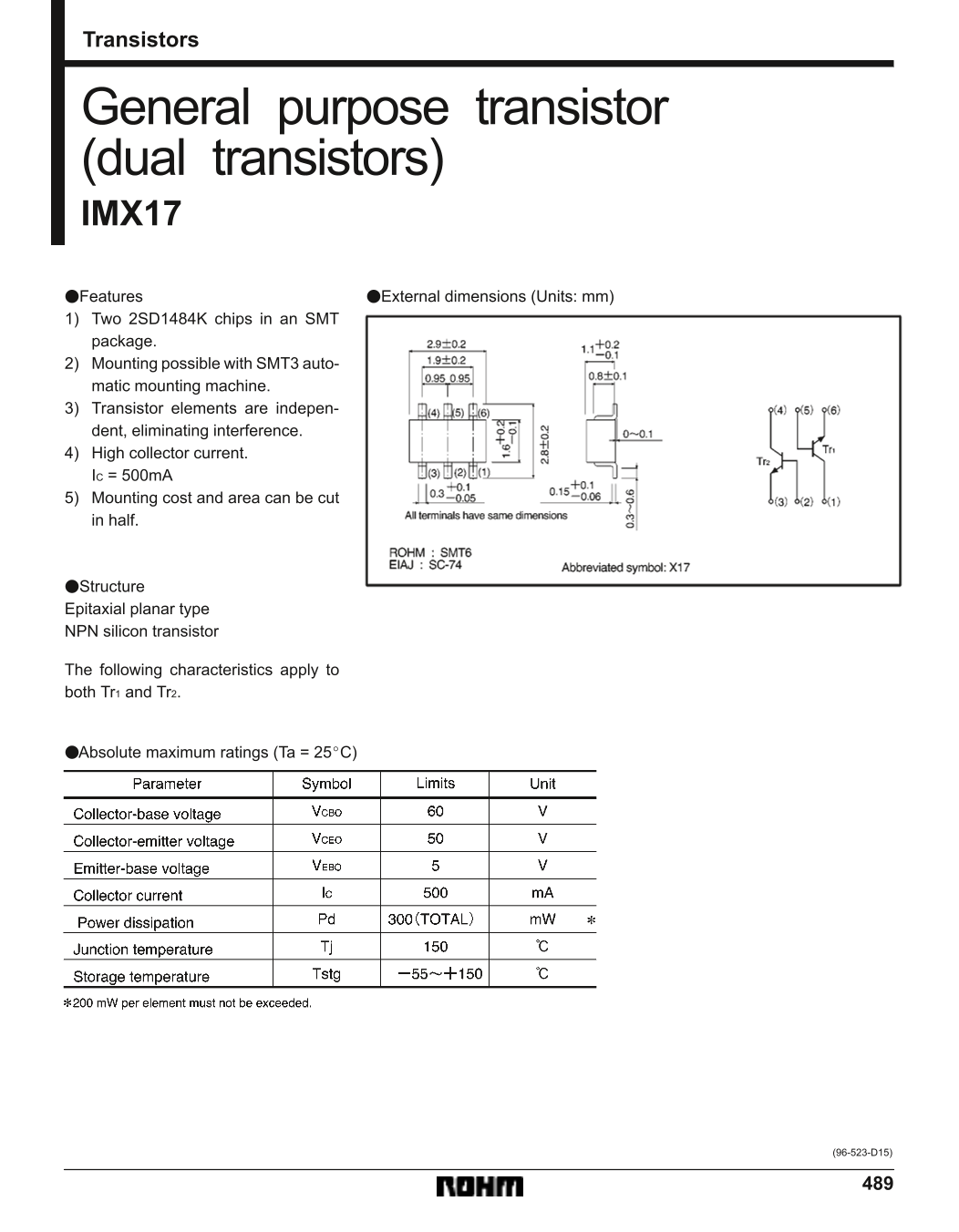

Page 1 Text Content
Transistors
General purpose transistor (dual transistors) IMX17 Features External dimensions (Units: mm) 1) Two 2SD1484K chips in an SMT package. 2) Mounting possible with SMT3 auto- matic mounting machine. 3) Transistor elements are indepen- dent, eliminating interference. 4) High collector current. IC = 500m A 5) Mounting cost and area can be cut in half.
Structure Epitaxial planar type NPN silicon transistor
The following characteristics apply to both Tr1 and Tr2.
Absolute maximum ratings (Ta = 25C)
Page Summary Contents For ROHM IMX17 Product Manual
Manual Details
| Brand | ROHM |
|---|---|
| Pages | 4 |
| File Size | 90.71 KB |
| Published | July 12, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What types of chips are contained within the IMX17?
It contains two 2SD1484K chips in an SMT package.
Can the IMX17 be mounted using automated machinery?
Yes, mounting is possible with an SMT3 automatic mounting machine.
Does the transistor element design cause interference between elements?
No, the transistor elements are independent, eliminating interference.
What precautions should be taken when designing circuits with this product?
Pay careful attention to peripheral conditions and follow expert consultation for essential life applications (like medical or transport equipment).
Are there any limitations regarding high-reliability use cases?
The products are addressed for ordinary electronic equipment, but for extremely high reliability needs (e.g., aerospace), consult a sales representative first.
