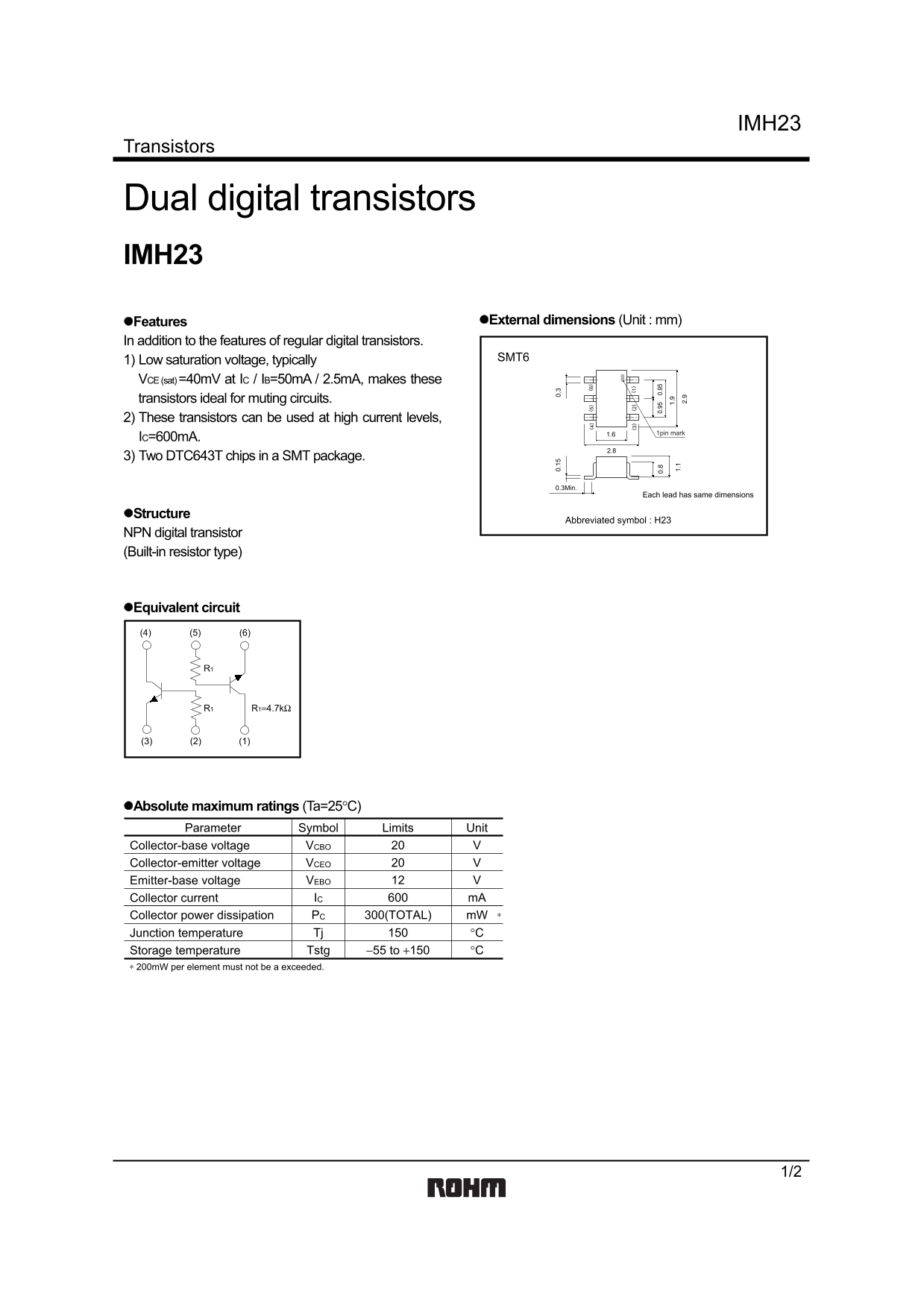

Page 1 Text Content
IMH23
Transistors
Dual digital transistors IMH23
Features External dimensions (Unit : mm)
In addition to the features of regular digital transistors.
1) Low saturation voltage, typically SMT6
VCE (sat) =40m V at IC / IB=50m A / 2.5m A, makes these transistors ideal for muting circuits. 2) These transistors can be used at high current levels,
1.6 1pin mark
IC=600m A.
3) Two DTC643T chips in a SMT package.
0.3Min.
Each lead has same dimensions
Structure
Abbreviated symbol : H23
NPN digital transistor (Built-in resistor type)
Equivalent circuit (4) (5) (6)
Absolute maximum ratings (Ta=25°C)
Parameter Symbol Limits Unit
Collector-base voltage VCBO Collector-emitter voltage VCEO Emitter-base voltage VEBO Collector current IC m A
Collector power dissipation 300(TOTAL)PC m W Tj 150Junction temperature °C
Storage temperature Tstg −55 to +150 °C
∗ 200m W per element must not be a exceeded.
