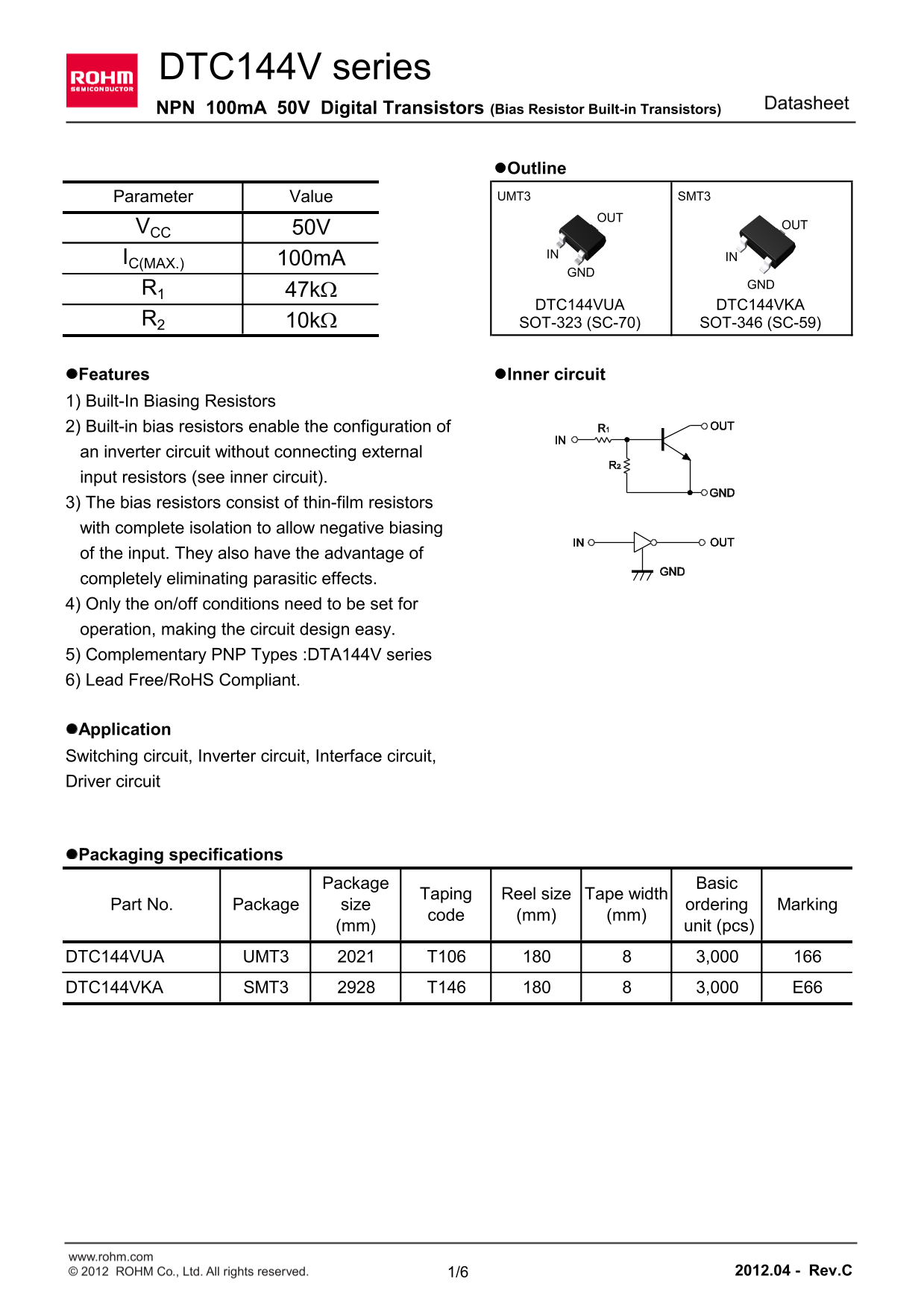

DTC144V series
Datasheet
NPN 100m A 50V Digital Transistors (Bias Resistor Built-in Transistors)
l Outline Parameter Value UMT3 SMT3
VCC 50V OUT
IN IN
IC(MAX.) 100m A
DTC144VUA DTC144VKA
R2 10k W SOT-323 (SC-70) SOT-346 (SC-59)
l Features l Inner circuit 1) Built-In Biasing Resistors 2) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see inner circuit). 3) The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input. They also have the advantage of completely eliminating parasitic effects. 4) Only the on/off conditions need to be set for operation, making the circuit design easy. 5) Complementary PNP Types :DTA144V series 6) Lead Free/Ro HS Compliant.
l Application Switching circuit, Inverter circuit, Interface circuit, Driver circuit
l Packaging specifications
Package Basic
Taping Reel size Tape width
Part No. Package size ordering Marking
code (mm) (mm)
(mm) unit (pcs)
DTC144VUA UMT3 T106 3,000 DTC144VKA SMT3 T146 3,000 E66
www.rohm.com © 2012 ROHM Co., Ltd. All rights reserved. 1/6 2012.04 - Rev.C
