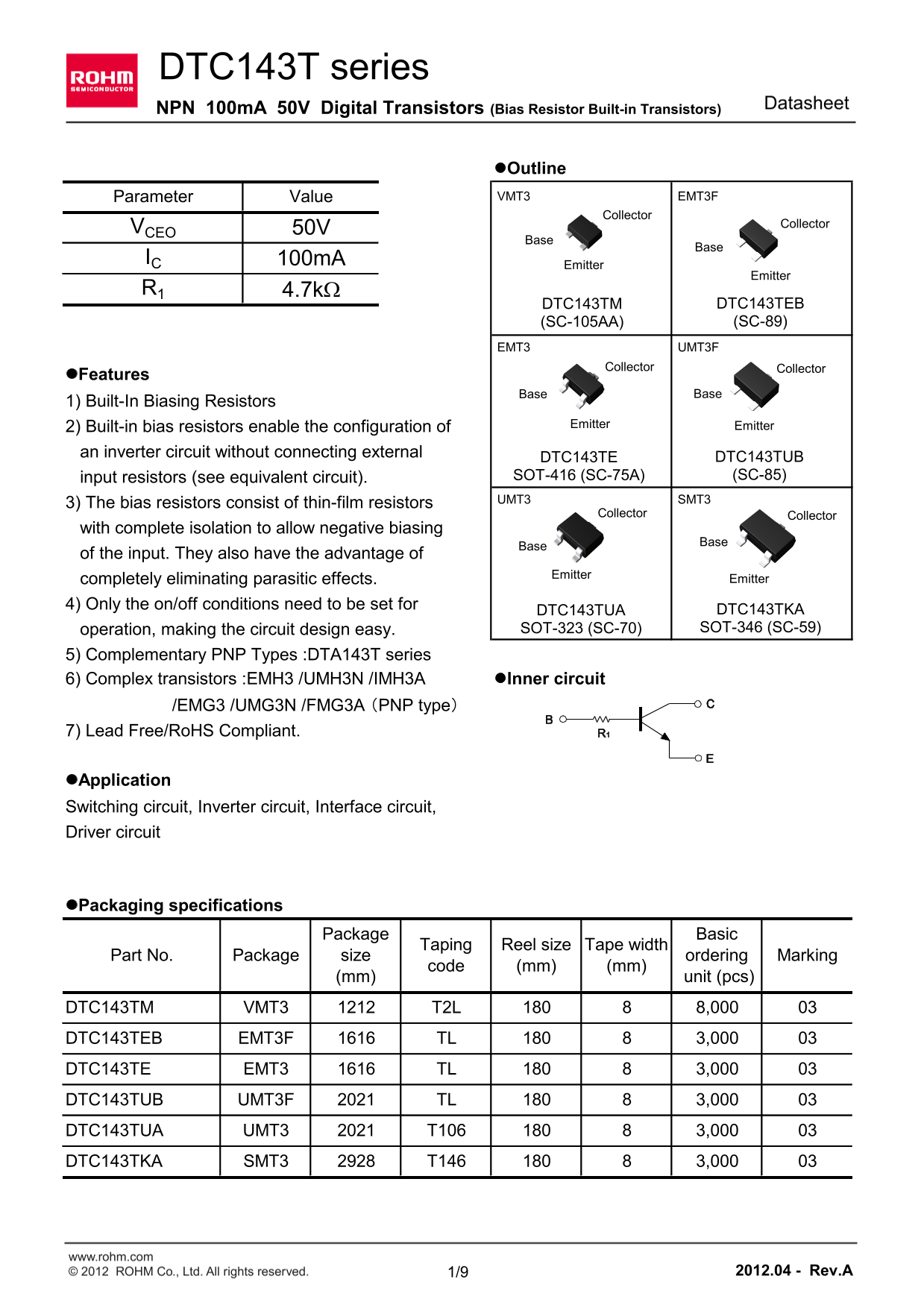

DTC143T series
Datasheet
NPN 100m A 50V Digital Transistors (Bias Resistor Built-in Transistors)
l Outline Parameter Value VMT3 EMT3F
Collector
Collector
VCEO 50V IC 100m A
Emitter
Emitter
DTC143TM DTC143TEB (SC-105AA) (SC-89)
EMT3 UMT3F
Collector Collector
l Features 1) Built-In Biasing Resistors
2) Built-in bias resistors enable the configuration of Emitter Emitter
an inverter circuit without connecting external
DTC143TE DTC143TUB input resistors (see equivalent circuit). SOT-416 (SC-75A) (SC-85)
UMT3 SMT3
3) The bias resistors consist of thin-film resistors
Collector Collector
with complete isolation to allow negative biasing of the input. They also have the advantage of
Emitter
completely eliminating parasitic effects. Emitter
4) Only the on/off conditions need to be set for
DTC143TUA DTC143TKA operation, making the circuit design easy. SOT-323 (SC-70) SOT-346 (SC-59)
5) Complementary PNP Types :DTA143T series
6) Complex transistors :EMH3 /UMH3N /IMH3A l Inner circuit
/EMG3 /UMG3N /FMG3A （PNP type） 7) Lead Free/Ro HS Compliant.
l Application Switching circuit, Inverter circuit, Interface circuit, Driver circuit
l Packaging specifications
Package Basic
Taping Reel size Tape width
Part No. Package size ordering Marking
code (mm) (mm)
(mm) unit (pcs)
DTC143TM VMT3 T2L 8,000 DTC143TEB EMT3F TL 3,000 DTC143TE EMT3 TL 3,000 DTC143TUB UMT3F TL 3,000 DTC143TUA UMT3 T106 3,000 DTC143TKA SMT3 T146 3,000
www.rohm.com © 2012 ROHM Co., Ltd. All rights reserved. 1/9 2012.04 - Rev.A
