ROHM DTC124EUA User Guide

Summary

The DTC124E series provides robust NPN/PNP digital transistors designed for easy implementation in switching, driver, and inverter circuits. These components feature integrated biasing resistors, eliminating the need for external input networks and simplifying complex circuit design. This datasheet provides comprehensive technical specifications, including absolute maximum ratings, electrical characteristics (I(on)/I(off) curves), dimensional drawings, and performance data essential for engineers designing professional-grade interface and logic circuitry.

📄 Preview PAGE OF 11

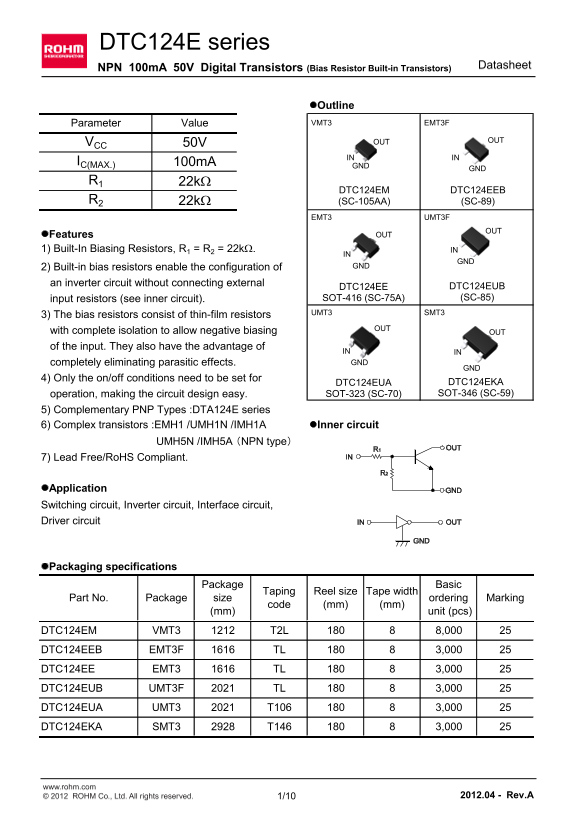

Page 1 Text Content

DTC124E series

Datasheet

NPN 100m A 50V Digital Transistors (Bias Resistor Built-in Transistors)

l Outline Parameter Value VMT3 EMT3F

VCC OUT OUT

IN IN

IC(MAX.) 100m A

DTC124EM DTC124EEB

R2 22k W (SC-105AA) (SC-89)

EMT3 UMT3F

l Features OUT

1) Built-In Biasing Resistors, R1 = R2 = 22k W. IN

2) Built-in bias resistors enable the configuration of GND

an inverter circuit without connecting external

DTC124EE DTC124EUB input resistors (see inner circuit). SOT-416 (SC-75A) (SC-85)

UMT3 SMT3

3) The bias resistors consist of thin-film resistors

with complete isolation to allow negative biasing OUT of the input. They also have the advantage of

IN IN completely eliminating parasitic effects. GND

4) Only the on/off conditions need to be set for

DTC124EUA DTC124EKA operation, making the circuit design easy. SOT-323 (SC-70) SOT-346 (SC-59)

5) Complementary PNP Types :DTA124E series

6) Complex transistors :EMH1 /UMH1N /IMH1A l Inner circuit

UMH5N /IMH5A (NPN type) 7) Lead Free/Ro HS Compliant.

l Application Switching circuit, Inverter circuit, Interface circuit, Driver circuit

l Packaging specifications

Package Basic

Taping Reel size Tape width

Part No. Package size ordering Marking

code (mm) (mm)

(mm) unit (pcs)

DTC124EM VMT3 T2L 8,000 DTC124EEB EMT3F TL 3,000

EMT3 TL 8DTC124EE 3,000

DTC124EUB UMT3F TL 3,000 DTC124EUA UMT3 T106 3,000 DTC124EKA SMT3 T146 3,000

www.rohm.com © 2012 ROHM Co., Ltd. All rights reserved. 1/10 2012.04 - Rev.A

Page Summary Contents For ROHM DTC124EUA User Guide

Page 1 DTC124E series Datasheet NPN 100m A 50V Digital Transistors (Bias Resistor Built-in Transistors) l Outline Parameter Value VMT3 EMT3F VCC OUT OUT IN IN IC(MAX.) 100m A DTC124EM DTC124EEB R2 22k W (SC-...
Page 2 Data Sheet DTC124E series l Absolute maximum ratings (Ta = 25C) Parameter Symbol Values Unit Supply voltage VCC Input voltage VIN -10 to +40 Output current IO m A *1 Collector current IC(MAX.) m A DT...
Page 3 Data Sheet DTC124E series IN [V l Electrical characteristic curves(Ta = 25°C) Fig.1 Input voltage vs. output current Fig.2 Output current vs. input voltage (ON characteristics) (OFF characteristics) O...
Page 4 Data Sheet DTC124E series l Electrical characteristic curves(Ta = 25°C) Fig.5 Output voltage vs. output current OUTPUT CURRENT : IO [A] www.rohm.com © 2012 ROHM Co., Ltd. All rights reserved. 4/10 201...
Page 5 Data Sheet DTC124E series l Dimensions (Unit : mm) Patterm of terminal position areas MILIMETERS INCHES MIN MAX MIN MAX 0.45 0.55 0.018 0.022 HE 1.10 1.30 0.043 0.051 Lp 0.20 0.40 0.008 MILIMETERS INC...
Page 6 Data Sheet DTC124E series l Dimensions (Unit : mm) EMT3F Patterm of terminal position areas MILIMETERS INCHES MIN MAX MIN MAX 0.65 0.85 HE 1.50 1.70 0.059 0.067 Lp 0.35 0.55 0.014 0.022 MILIMETERS INC...
Page 7 Data Sheet DTC124E series l Dimensions (Unit : mm) Patterm of terminal position areas MILIMETERS INCHES MIN MAX MIN MAX 0.60 0.80 0.024 0.031 HE 1.40 1.80 0.055 0.071 L1 0.10 0.004 Lp 0.15 0.006 MILIM...
Page 8 Data Sheet DTC124E series l Dimensions (Unit : mm) UMT3F Patterm of terminal position areas MILIMETERS INCHES MIN MAX MIN MAX 0.85 1.05 0.033 0.041 HE 2.00 2.20 0.079 0.087 Lp 0.43 0.63 0.017 0.025 MI...
Page 9 Data Sheet DTC124E series l Dimensions (Unit : mm) Patterm of terminal position areas MILIMETERS INCHES MIN MAX MIN MAX 0.80 1.00 0.031 0.039 HE 2.00 2.20 0.079 0.087 L1 0.20 0.50 0.008 0.02 Lp 0.25 0...
Page 10 Data Sheet DTC124E series l Dimensions (Unit : mm) Patterm of terminal position areas MILIMETERS INCHES MIN MAX MIN MAX 1.00 1.30 0.051 HE 2.60 3.00 0.102 0.118 L1 0.30 0.60 0.012 0.024 Lp 0.40 0.70 0...
Page 11 Notice No copying or reproduction of this document, in part or in whole, is permitted without the consent of ROHM Co.,Ltd. The content specified herein is subject to change for improvement without not...

Manual Details

Brand ROHM
Pages 11
File Size 785.75 KB
Published June 20, 2026
1 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

Are external resistors needed for inverter circuit configuration?

No, the built-in bias resistors allow the configuration of an inverter circuit without connecting external input resistors.

What critical applications are restricted from using this component?

It cannot be used in equipment requiring extreme reliability where failure could threaten human life, such as medical instruments or aerospace machinery.

What is the specified maximum collector current rating?

The datasheet specifies the maximum collector current ($I_C$) at 100 mA.
