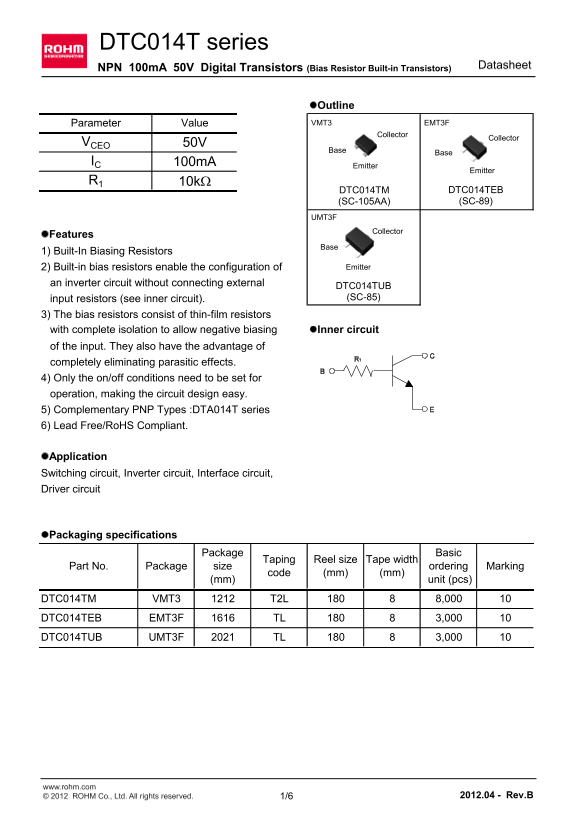

DTC014T series
Datasheet
NPN 100m A 50V Digital Transistors (Bias Resistor Built-in Transistors)
l Outline Parameter Value VMT3 EMT3F
Collector
Collector
VCEO 50V IC 100m A
Emitter
Emitter
DTC014TM DTC014TEB (SC-105AA) (SC-89)
UMT3F
Collector
l Features 1) Built-In Biasing Resistors
2) Built-in bias resistors enable the configuration of Emitter
an inverter circuit without connecting external
DTC014TUB input resistors (see inner circuit). (SC-85)
3) The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing l Inner circuit of the input. They also have the advantage of completely eliminating parasitic effects. 4) Only the on/off conditions need to be set for operation, making the circuit design easy. 5) Complementary PNP Types :DTA014T series 6) Lead Free/Ro HS Compliant.
l Application Switching circuit, Inverter circuit, Interface circuit, Driver circuit
l Packaging specifications
Package Basic
Taping Reel size Tape width
Part No. Package size ordering Marking
code (mm) (mm)
(mm) unit (pcs)
DTC014TM VMT3 T2L 8,000 DTC014TEB EMT3F TL 3,000
UMT3F TL 3,000 10DTC014TUB
