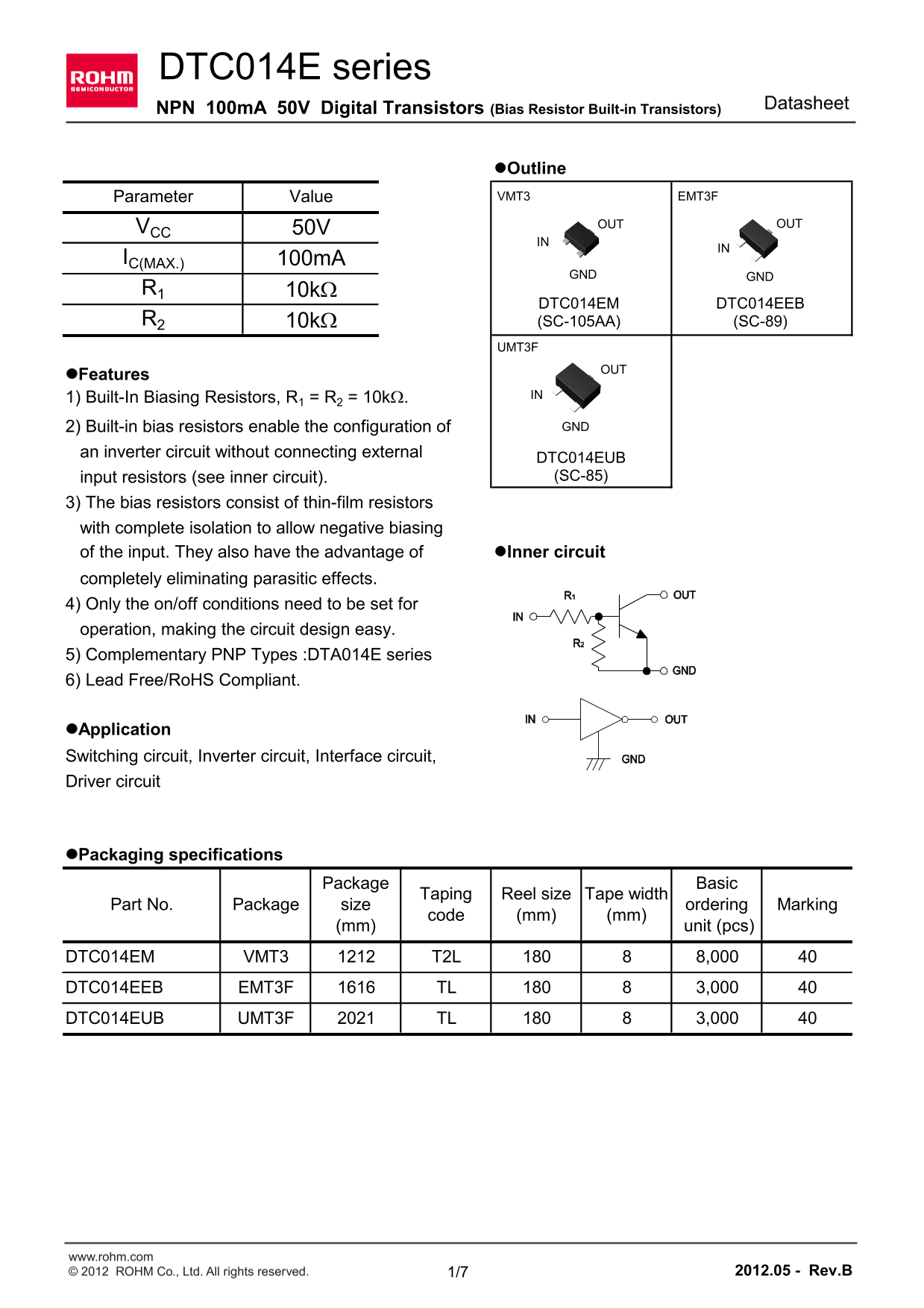

Page 1 Text Content

DTC014E series

Datasheet

NPN 100m A 50V Digital Transistors (Bias Resistor Built-in Transistors)

l Outline Parameter Value VMT3 EMT3F

OUT OUT

VCC 50V

IC(MAX.) 100m A

GND GND

DTC014EM DTC014EEB

R2 10k W (SC-105AA) (SC-89)

UMT3F

l Features

1) Built-In Biasing Resistors, R1 = R2 = 10k W. IN

2) Built-in bias resistors enable the configuration of GND

an inverter circuit without connecting external

DTC014EUB input resistors (see inner circuit). (SC-85)

3) The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing

of the input. They also have the advantage of l Inner circuit

completely eliminating parasitic effects. 4) Only the on/off conditions need to be set for operation, making the circuit design easy. 5) Complementary PNP Types :DTA014E series 6) Lead Free/Ro HS Compliant.

l Application Switching circuit, Inverter circuit, Interface circuit, Driver circuit

l Packaging specifications

Package Basic

Taping Reel size Tape width

Part No. Package size ordering Marking

code (mm) (mm)

(mm) unit (pcs)

DTC014EM VMT3 T2L 8,000 DTC014EEB EMT3F TL 3,000 DTC014EUB UMT3F TL 3,000

www.rohm.com © 2012 ROHM Co., Ltd. All rights reserved. 1/7 2012.05 - Rev.B

Page Summary Contents For ROHM DTC014EEB User Guide

Page 1 DTC014E series Datasheet NPN 100m A 50V Digital Transistors (Bias Resistor Built-in Transistors) l Outline Parameter Value VMT3 EMT3F OUT OUT VCC 50V IC(MAX.) 100m A GND GND DTC014EM DTC014EEB R2 10k ...
Page 2 Data Sheet DTC014E series l Absolute maximum ratings (Ta = 25°C) Parameter Symbol Values Unit Supply voltage VCC Input voltage VIN 40 to -10 Output current IO m A *1 Collector current IC(MAX.) m A Pow...
Page 3 Data Sheet DTC014E series IN [V l Electrical characteristic curves(Ta = 25°C) Fig.1 Input voltage vs. output current Fig.2 Output current vs. input voltage (ON characteristics) (OFF characteristics) V...
Page 4 Data Sheet DTC014E series l Electrical characteristic curves(Ta = 25°C) Fig.5 Output voltage vs. output current IO/II=10 Ta=125ºC Ta=75ºC Ta=25ºC Ta= -40ºC OUTPUT CURRENT : IO [m A] www.rohm.com © 201...
Page 5 Data Sheet DTC014E series l Dimensions (Unit : mm) Patterm of terminal position areas MILIMETERS INCHES MIN MAX MIN MAX 0.45 0.55 0.018 0.022 HE 1.10 1.30 0.043 0.051 Lp 0.20 0.40 0.008 MILIMETERS INC...
Page 6 Data Sheet DTC014E series l Dimensions (Unit : mm) EMT3F Patterm of terminal position areas MILIMETERS INCHES MIN MAX MIN MAX 0.65 0.85 HE 1.50 1.70 0.059 0.067 Lp 0.35 0.55 0.014 0.022 MILIMETERS INC...
Page 7 Data Sheet DTC014E series l Dimensions (Unit : mm) UMT3F Patterm of terminal position areas MILIMETERS INCHES MIN MAX MIN MAX 0.85 1.05 0.033 0.041 HE 2.00 2.20 0.079 0.087 Lp 0.43 0.63 0.017 0.025 MI...
Page 8 Notice No copying or reproduction of this document, in part or in whole, is permitted without the consent of ROHM Co.,Ltd. The content specified herein is subject to change for improvement without not...
