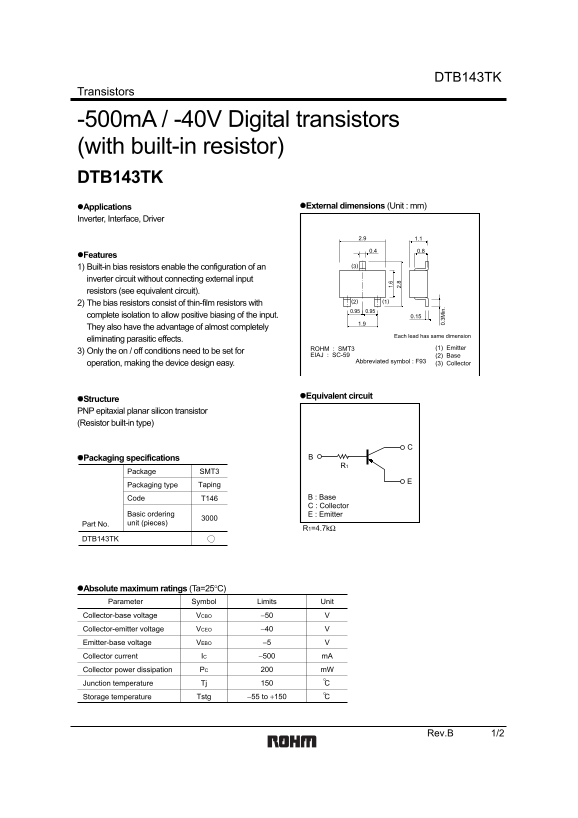

DTB143TK
Transistors
-500m A / -40V Digital transistors (with built-in resistor) DTB143TK
Applications External dimensions (Unit : mm)
Inverter, Interface, Driver
Features
1) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit).
2) The bias resistors consist of thin-film resistors with
complete isolation to allow positive biasing of the input. 0.15
They also have the advantage of almost completely
Each lead has same dimension
eliminating parasitic effects.
ROHM : SMT3 (1) Emitter
3) Only the on / off conditions need to be set for
EIAJ : SC-59 (2) Base
operation, making the device design easy. (3) Collector Abbreviated symbol : F93
Equivalent circuit
Structure 2.
PNP epitaxial planar silicon transistor (Resistor built-in type)
0. 3M in
Packaging specifications
Package SMT3
Packaging type Taping
Code T146 B : Base C : Collector
Basic ordering E : Emitter Part No. unit (pieces)
DTB143TK
Absolute maximum ratings (Ta=25°C)
Symbol Limits Parameter Unit
Collector-base voltage VCBO −50
Collector-emitter voltage VCEO −40
Emitter-base voltage VEBO −5
Collector current IC −500 m A
Collector power dissipation PC m W Junction temperature Tj Storage temperature Tstg −55 to +150
Rev.B 1/2
