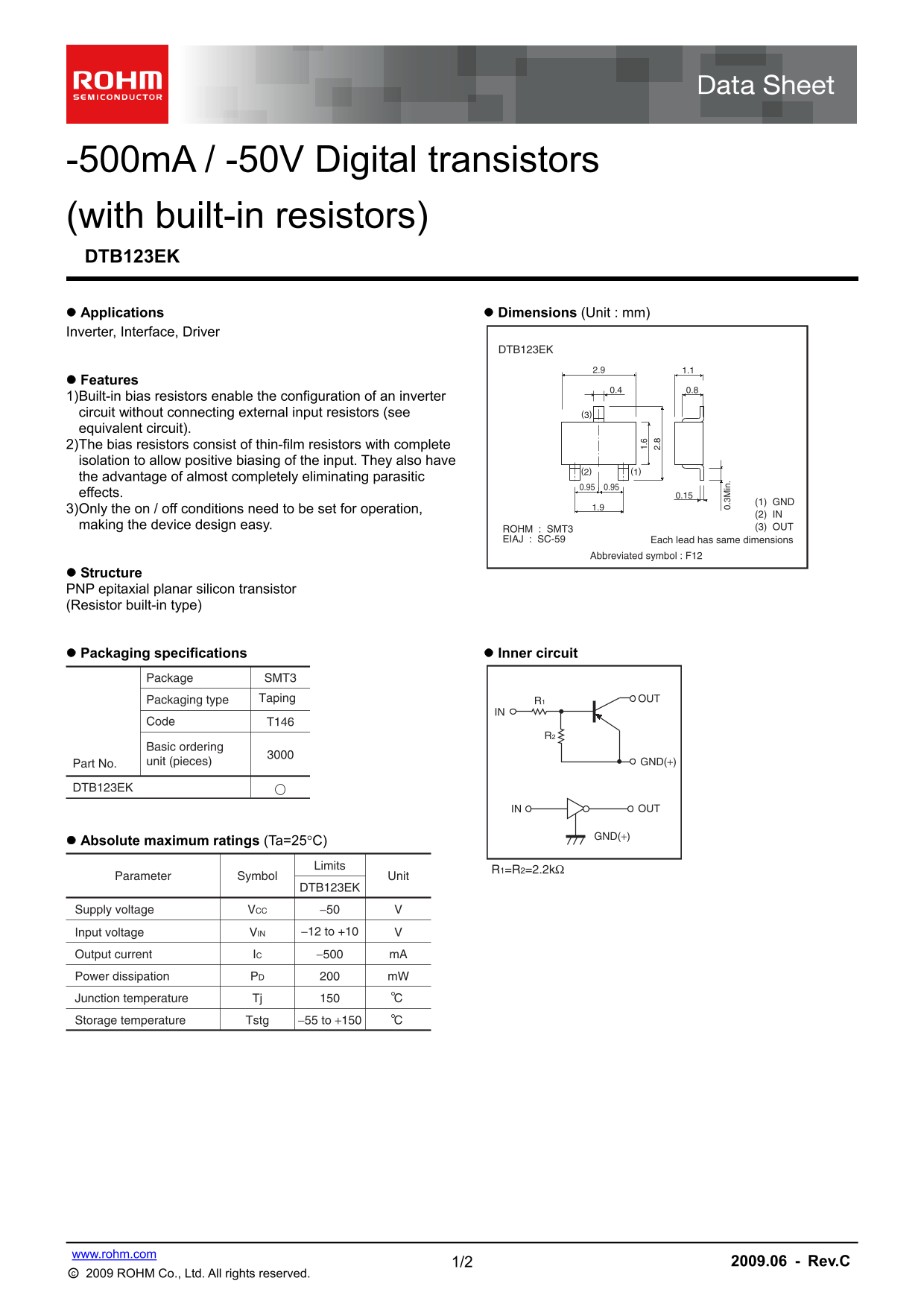

-500m A / -50V Digital transistors (with built-in resistors) DTB123EK Applications Dimensions (Unit : mm) Inverter, Interface, Driver
DTB123EK
Features
1) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see (3) equivalent circuit). 2) The bias resistors consist of thin-film resistors with complete isolation to allow positive biasing of the input. They also have
the advantage of almost completely eliminating parasitic
effects. 0.15
(1) GND
3) Only the on / off conditions need to be set for operation, 1.9
(2) IN
making the device design easy. (3) OUTROHM : SMT3
EIAJ : SC-59 Each lead has same dimensions
Abbreviated symbol : F12
Structure PNP epitaxial planar silicon transistor (Resistor built-in type)
Packaging specifications Inner circuit 2.
Package SMT3
Packaging type Taping R1 OUT
Code T146
0. 3M in
Basic ordering Part No. unit (pieces) GND(+)
DTB123EK
IN OUT
GND(+)
Absolute maximum ratings (Ta=25C)
Limits
Parameter Symbol Unit
DTB123EK
Supply voltage VCC −50
Input voltage VIN −12 to +10
Output current IC −500 m A
Power dissipation PD m W
Junction temperature Tj
Storage temperature Tstg −55 to +150
www.rohm.com
1/2 2009.06 - Rev.C
○c 2009 ROHM Co., Ltd. All rights reserved.
