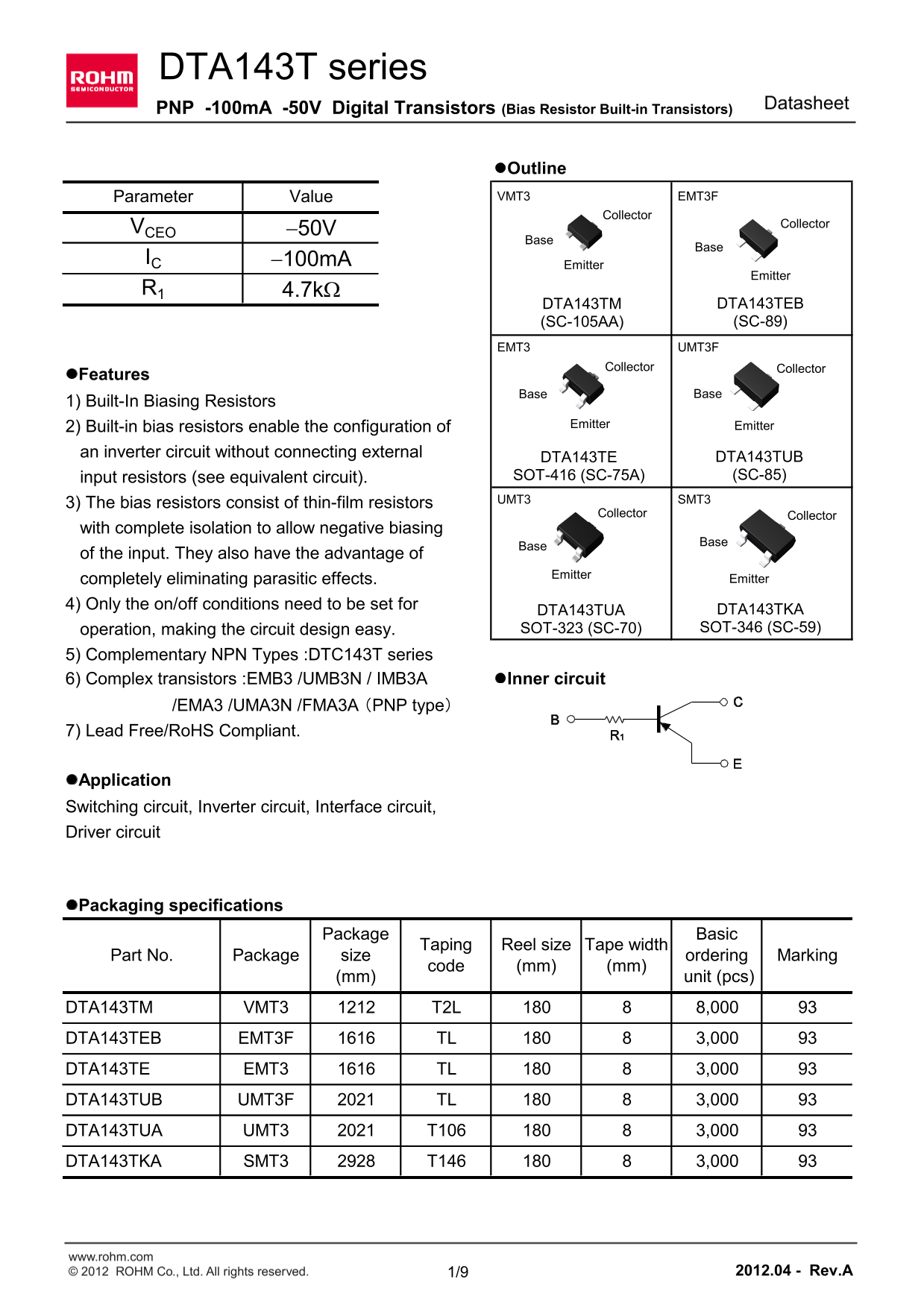

DTA143T series

Datasheet

PNP -100m A -50V Digital Transistors (Bias Resistor Built-in Transistors)

l Outline Parameter Value VMT3 EMT3F

Collector

Collector

VCEO -50V IC -100m A

Emitter

Emitter

DTA143TM DTA143TEB (SC-105AA) (SC-89)

EMT3 UMT3F

Collector Collector

l Features 1) Built-In Biasing Resistors

2) Built-in bias resistors enable the configuration of Emitter Emitter

an inverter circuit without connecting external

DTA143TE DTA143TUB input resistors (see equivalent circuit). SOT-416 (SC-75A) (SC-85)

UMT3 SMT3

3) The bias resistors consist of thin-film resistors

Collector Collector

with complete isolation to allow negative biasing of the input. They also have the advantage of

Emitter

completely eliminating parasitic effects. Emitter

4) Only the on/off conditions need to be set for

DTA143TUA DTA143TKA operation, making the circuit design easy. SOT-323 (SC-70) SOT-346 (SC-59)

5) Complementary NPN Types :DTC143T series 6) Complex transistors :EMB3 /UMB3N / IMB3A l Inner circuit /EMA3 /UMA3N /FMA3A (PNP type) 7) Lead Free/Ro HS Compliant.

l Application Switching circuit, Inverter circuit, Interface circuit, Driver circuit

l Packaging specifications

Package Basic

Taping Reel size Tape width

Part No. Package size ordering Marking

code (mm) (mm)

(mm) unit (pcs)

DTA143TM VMT3 T2L 8,000 DTA143TEB EMT3F TL 3,000 DTA143TE EMT3 TL 3,000 DTA143TUB UMT3F TL 3,000 DTA143TUA UMT3 T106 3,000 DTA143TKA SMT3 T146 3,000

www.rohm.com © 2012 ROHM Co., Ltd. All rights reserved. 1/9 2012.04 - Rev.A

Page Summary Contents For ROHM DTA143TUB User Guide

Page 1 DTA143T series Datasheet PNP -100m A -50V Digital Transistors (Bias Resistor Built-in Transistors) l Outline Parameter Value VMT3 EMT3F Collector Collector VCEO -50V IC -100m A Emitter Emitter DTA143T...
Page 2 Data Sheet DTA143T series l Absolute maximum ratings (Ta = 25C) Parameter Symbol Values Unit Collector-base voltage VCBO -50 Collector-emitter voltage VCEO -50 Emitter-base voltage VEBO -5 Collector ...
Page 3 Data Sheet DTA143T series l Electrical characteristic curves(Ta = 25°C) Fig.1 Grounded emitter propagation Fig.2 Grounded emitter output characteristics characteristics -10 -100 IB= Ta=25ºC -500μA VCE...
Page 4 Data Sheet DTA143T series l Dimensions (Unit : mm) Patterm of terminal position areas MILIMETERS INCHES MIN MAX MIN MAX 0.45 0.55 0.018 0.022 HE 1.10 1.30 0.043 0.051 Lp 0.20 0.40 0.008 MILIMETERS INC...
Page 5 Data Sheet DTA143T series l Dimensions (Unit : mm) EMT3F Patterm of terminal position areas MILIMETERS INCHES MIN MAX MIN MAX 0.65 0.85 HE 1.50 1.70 0.059 0.067 Lp 0.35 0.55 0.014 0.022 MILIMETERS INC...
Page 6 Data Sheet DTA143T series l Dimensions (Unit : mm) Patterm of terminal position areas MILIMETERS INCHES MIN MAX MIN MAX 0.60 0.80 0.024 0.031 HE 1.40 1.80 0.055 0.071 L1 0.10 0.004 Lp 0.15 0.006 MILIM...
Page 7 Data Sheet DTA143T series l Dimensions (Unit : mm) UMT3F Patterm of terminal position areas MILIMETERS INCHES MIN MAX MIN MAX 0.85 1.05 0.033 0.041 HE 2.00 2.20 0.079 0.087 Lp 0.43 0.63 0.017 0.025 MI...
Page 8 Data Sheet DTA143T series l Dimensions (Unit : mm) Patterm of terminal position areas MILIMETERS INCHES MIN MAX MIN MAX 0.80 1.00 0.031 0.039 HE 2.00 2.20 0.079 0.087 L1 0.20 0.50 0.008 0.02 Lp 0.25 0...
Page 9 Data Sheet DTA143T series l Dimensions (Unit : mm) Patterm of terminal position areas MILIMETERS INCHES MIN MAX MIN MAX 1.00 1.30 0.051 HE 2.60 3.00 0.102 0.118 L1 0.30 0.60 0.012 0.024 Lp 0.40 0.70 0...
Page 10 Notice No copying or reproduction of this document, in part or in whole, is permitted without the consent of ROHM Co.,Ltd. The content specified herein is subject to change for improvement without not...
