ROHM DTA114TUB User Guide

Summary

The DTA114T series are high-reliability PNP digital transistors designed to simplify circuit design through built-in biasing resistors. These components enable efficient switching, making them ideal for use in interface, inverter, and driver circuits. This datasheet provides comprehensive electrical characteristics, absolute maximum ratings, và footprint dimensions necessary for electronic engineers developing complex switching or logic systems.

📄 Preview PAGE OF 10

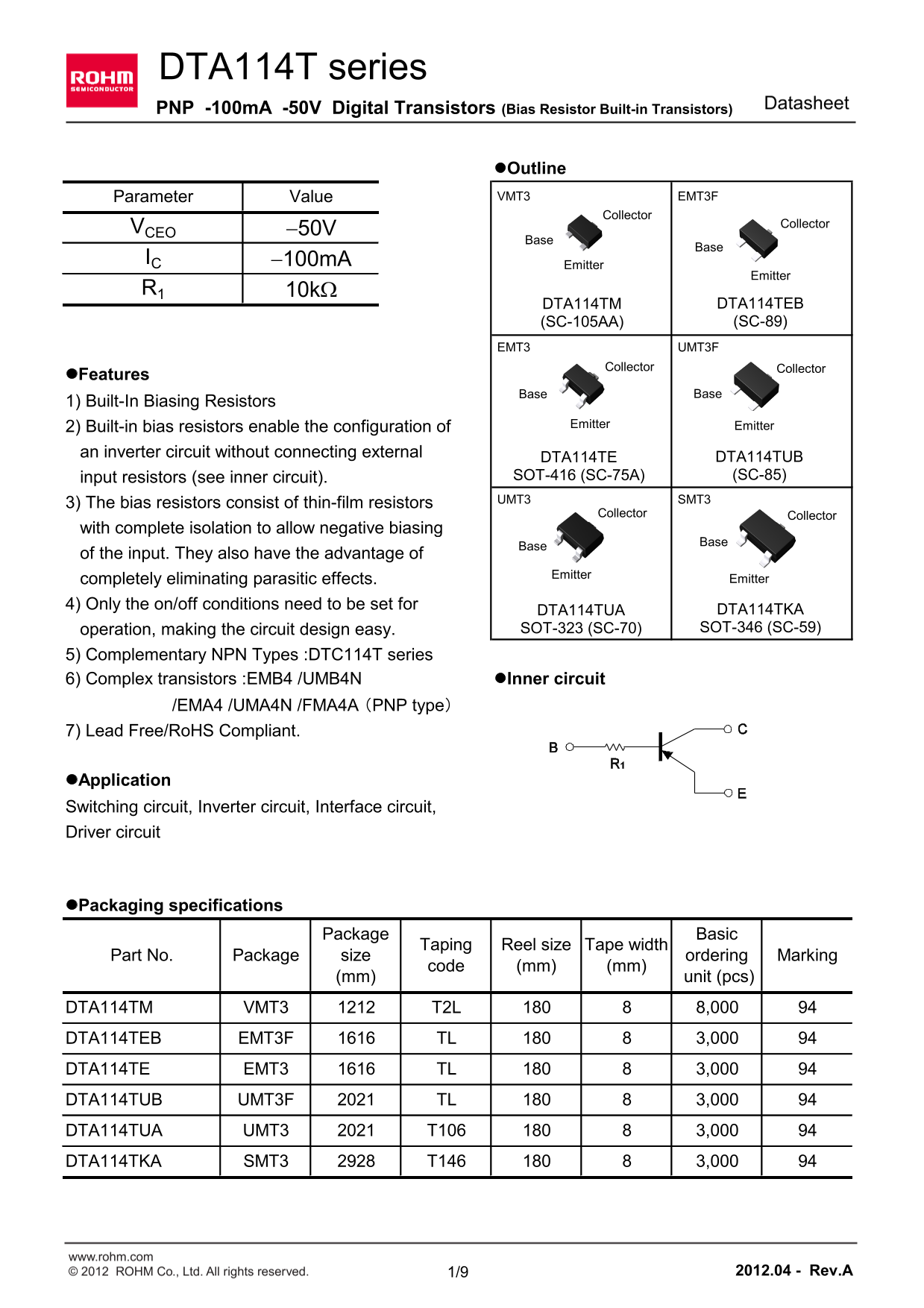

Page 1 Text Content

DTA114T series

Datasheet

PNP -100m A -50V Digital Transistors (Bias Resistor Built-in Transistors)

l Outline Parameter Value VMT3 EMT3F

Collector

Collector

VCEO -50V IC -100m A

Emitter

Emitter

DTA114TM DTA114TEB (SC-105AA) (SC-89)

EMT3 UMT3F

Collector Collector

l Features 1) Built-In Biasing Resistors

2) Built-in bias resistors enable the configuration of Emitter Emitter

an inverter circuit without connecting external

DTA114TE DTA114TUB input resistors (see inner circuit). SOT-416 (SC-75A) (SC-85)

UMT3 SMT3

3) The bias resistors consist of thin-film resistors

Collector Collector

with complete isolation to allow negative biasing of the input. They also have the advantage of

Emitter

completely eliminating parasitic effects. Emitter

4) Only the on/off conditions need to be set for

DTA114TUA DTA114TKA operation, making the circuit design easy. SOT-323 (SC-70) SOT-346 (SC-59)

5) Complementary NPN Types :DTC114T series

6) Complex transistors :EMB4 /UMB4N l Inner circuit

/EMA4 /UMA4N /FMA4A (PNP type) 7) Lead Free/Ro HS Compliant.

l Application Switching circuit, Inverter circuit, Interface circuit, Driver circuit

l Packaging specifications

Package Basic

Taping Reel size Tape width

Part No. Package size ordering Marking

code (mm) (mm)

(mm) unit (pcs)

DTA114TM VMT3 T2L 8,000 DTA114TEB EMT3F TL 3,000 DTA114TE EMT3 TL 3,000 DTA114TUB UMT3F TL 3,000 DTA114TUA UMT3 T106 3,000 DTA114TKA SMT3 T146 3,000

www.rohm.com © 2012 ROHM Co., Ltd. All rights reserved. 1/9 2012.04 - Rev.A

Page Summary Contents For ROHM DTA114TUB User Guide

Page 1 DTA114T series Datasheet PNP -100m A -50V Digital Transistors (Bias Resistor Built-in Transistors) l Outline Parameter Value VMT3 EMT3F Collector Collector VCEO -50V IC -100m A Emitter Emitter DTA114T...
Page 2 Data Sheet DTA114T series l Absolute maximum ratings (Ta = 25C) Parameter Symbol Values Unit Collector-base voltage VCBO -50 Collector-emitter voltage VCEO -50 Emitter-base voltage VEBO -5 Collector ...
Page 3 Data Sheet DTA114T series l Electrical characteristic curves(Ta = 25°C) Fig.1 Grounded emitter propagation Fig.2 Grounded emitter output characteristics characteristics IB= -500μA VCE= -5V Ta=25ºC Ta=...
Page 4 Data Sheet DTA114T series l Dimensions (Unit : mm) Patterm of terminal position areas MILIMETERS INCHES MIN MAX MIN MAX 0.45 0.55 0.018 0.022 HE 1.10 1.30 0.043 0.051 Lp 0.20 0.40 0.008 MILIMETERS INC...
Page 5 Data Sheet DTA114T series l Dimensions (Unit : mm) EMT3F Patterm of terminal position areas MILIMETERS INCHES MIN MAX MIN MAX 0.65 0.85 HE 1.50 1.70 0.059 0.067 Lp 0.35 0.55 0.014 0.022 MILIMETERS INC...
Page 6 Data Sheet DTA114T series l Dimensions (Unit : mm) Patterm of terminal position areas MILIMETERS INCHES MIN MAX MIN MAX 0.60 0.80 0.024 0.031 HE 1.40 1.80 0.055 0.071 L1 0.10 0.004 Lp 0.15 0.006 MILIM...
Page 7 Data Sheet DTA114T series l Dimensions (Unit : mm) UMT3F Patterm of terminal position areas MILIMETERS INCHES MIN MAX MIN MAX 0.85 1.05 0.033 0.041 HE 2.00 2.20 0.079 0.087 Lp 0.43 0.63 0.017 0.025 MI...
Page 8 Data Sheet DTA114T series l Dimensions (Unit : mm) Patterm of terminal position areas MILIMETERS INCHES MIN MAX MIN MAX 0.80 1.00 0.031 0.039 HE 2.00 2.20 0.079 0.087 L1 0.20 0.50 0.008 0.02 Lp 0.25 0...
Page 9 Data Sheet DTA114T series l Dimensions (Unit : mm) Patterm of terminal position areas MILIMETERS INCHES MIN MAX MIN MAX 1.00 1.30 0.051 HE 2.60 3.00 0.102 0.118 L1 0.30 0.60 0.012 0.024 Lp 0.40 0.70 0...
Page 10 Notice No copying or reproduction of this document, in part or in whole, is permitted without the consent of ROHM Co.,Ltd. The content specified herein is subject to change for improvement without not...
