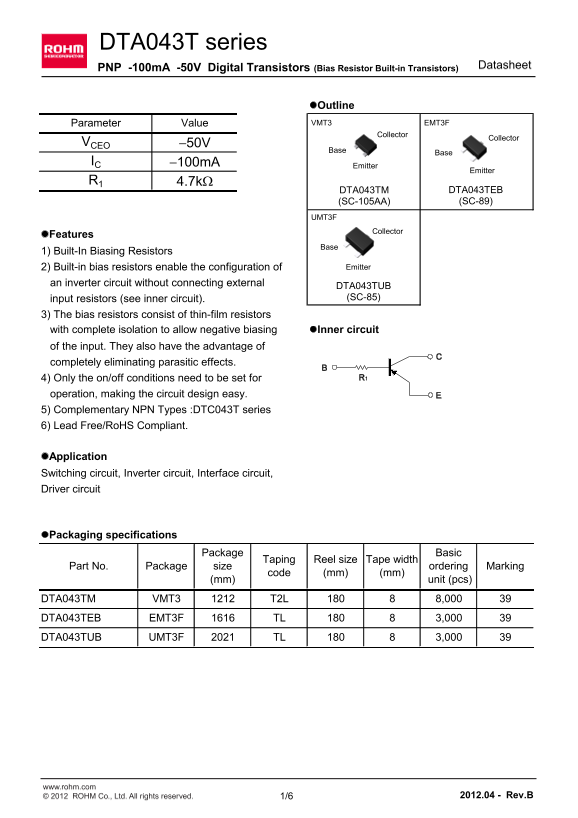

DTA043T series
Datasheet
PNP -100m A -50V Digital Transistors (Bias Resistor Built-in Transistors)
l Outline Parameter Value VMT3 EMT3F
Collector
Collector
VCEO -50V IC -100m A
Emitter
Emitter
DTA043TM DTA043TEB (SC-105AA) (SC-89)
UMT3F
Collector
l Features 1) Built-In Biasing Resistors
2) Built-in bias resistors enable the configuration of Emitter
an inverter circuit without connecting external
DTA043TUB input resistors (see inner circuit). (SC-85)
3) The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing l Inner circuit of the input. They also have the advantage of completely eliminating parasitic effects. 4) Only the on/off conditions need to be set for operation, making the circuit design easy. 5) Complementary NPN Types :DTC043T series 6) Lead Free/Ro HS Compliant.
l Application Switching circuit, Inverter circuit, Interface circuit, Driver circuit
l Packaging specifications
Package Basic
Taping Reel size Tape width
Part No. Package size ordering Marking
code (mm) (mm)
(mm) unit (pcs)
DTA043TM VMT3 T2L 8,000 DTA043TEB EMT3F TL 3,000
UMT3F TL 3,000 39DTA043TUB
www.rohm.com © 2012 ROHM Co., Ltd. All rights reserved. 1/6 2012.04 - Rev.B
Page Summary Contents For ROHM DTA043TUB User Guide
