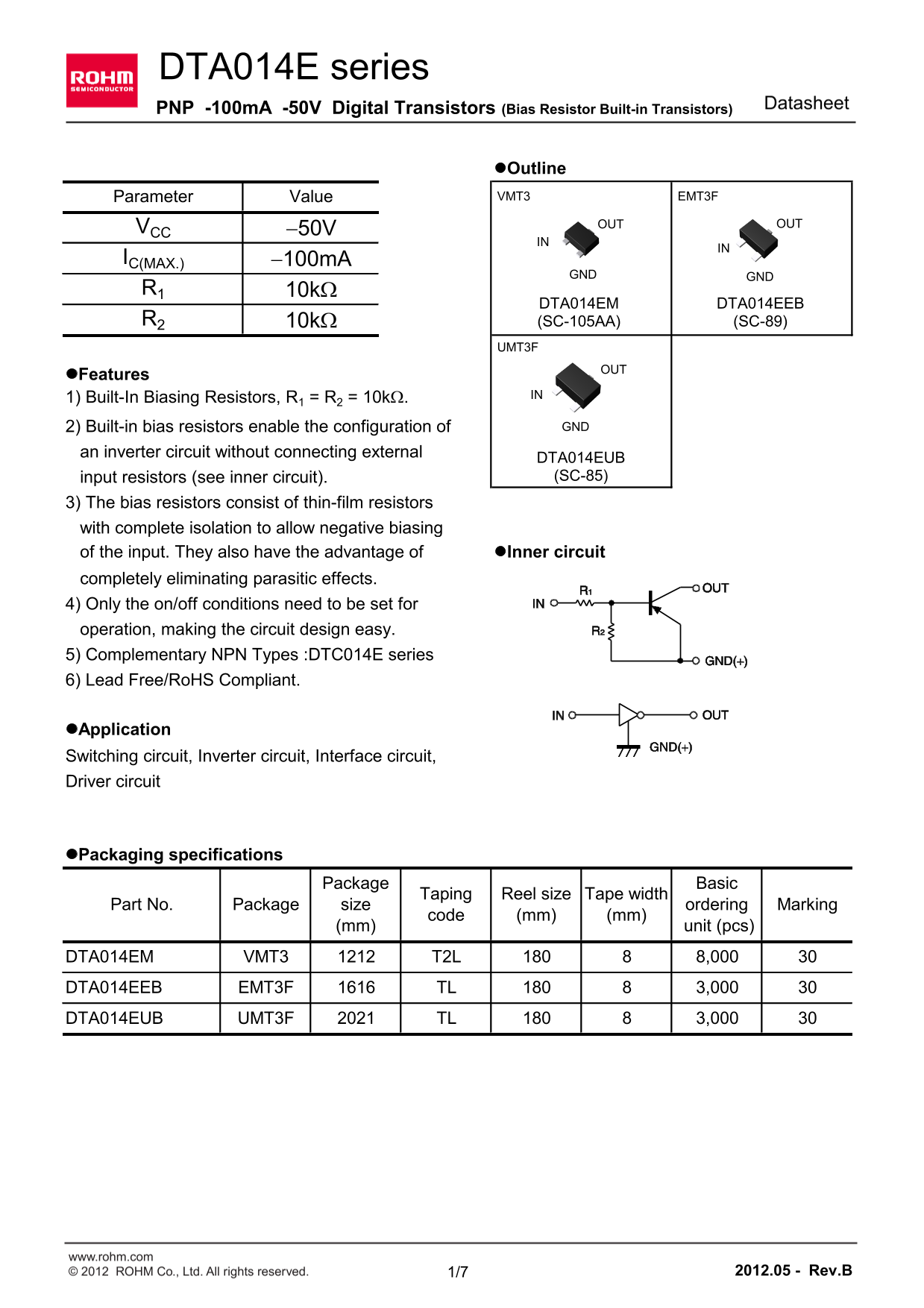

DTA014E series
Datasheet
PNP -100m A -50V Digital Transistors (Bias Resistor Built-in Transistors)
l Outline Parameter Value VMT3 EMT3F
OUT OUT
VCC -50V
IC(MAX.) -100m A
GND GND
DTA014EM DTA014EEB
R2 10k W (SC-105AA) (SC-89)
UMT3F
l Features
1) Built-In Biasing Resistors, R1 = R2 = 10k W. IN
2) Built-in bias resistors enable the configuration of GND
an inverter circuit without connecting external
DTA014EUB input resistors (see inner circuit). (SC-85)
3) The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing
of the input. They also have the advantage of l Inner circuit
completely eliminating parasitic effects. 4) Only the on/off conditions need to be set for operation, making the circuit design easy. 5) Complementary NPN Types :DTC014E series 6) Lead Free/Ro HS Compliant.
l Application Switching circuit, Inverter circuit, Interface circuit, Driver circuit
l Packaging specifications
Package Basic
Taping Reel size Tape width
Part No. Package size ordering Marking
code (mm) (mm)
(mm) unit (pcs)
DTA014EM VMT3 T2L 8,000 DTA014EEB EMT3F TL 3,000 DTA014EUB UMT3F TL 3,000
