Capacitive Sensor Control IC Series

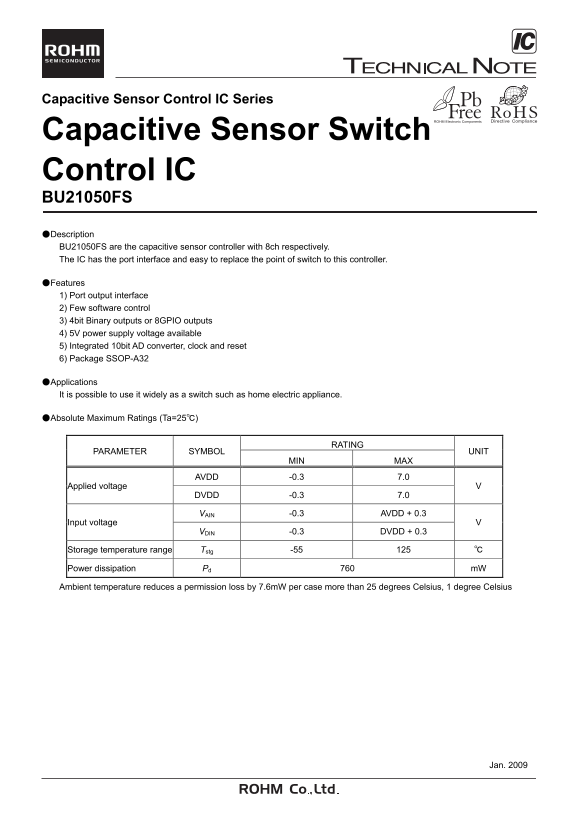

Capacitive Sensor Switch Control IC BU21050FS ●Description BU21050FS are the capacitive sensor controller with 8ch respectively. The IC has the port interface and easy to replace the point of switch to this controller. ●Features 1) Port output interface 2) Few software control 3) 4bit Binary outputs or 8GPIO outputs 4) 5V power supply voltage available 5) Integrated 10bit AD converter, clock and reset 6) Package SSOP-A32 ●Applications It is possible to use it widely as a switch such as home electric appliance. ●Absolute Maximum Ratings (Ta=25℃)
RATING
PARAMETER SYMBOL UNIT
MIN MAX
AVDD -0.3 7.0
Applied voltage
DVDD -0.3 7.0
VAIN -0.3 AVDD + 0.3
Input voltage
VDIN -0.3 DVDD + 0.3
Storage temperature range Tstg -55 125 ℃
Power dissipation Pd 760 m W
Ambient temperature reduces a permission loss by 7.6m W per case more than 25 degrees Celsius, 1 degree Celsius
