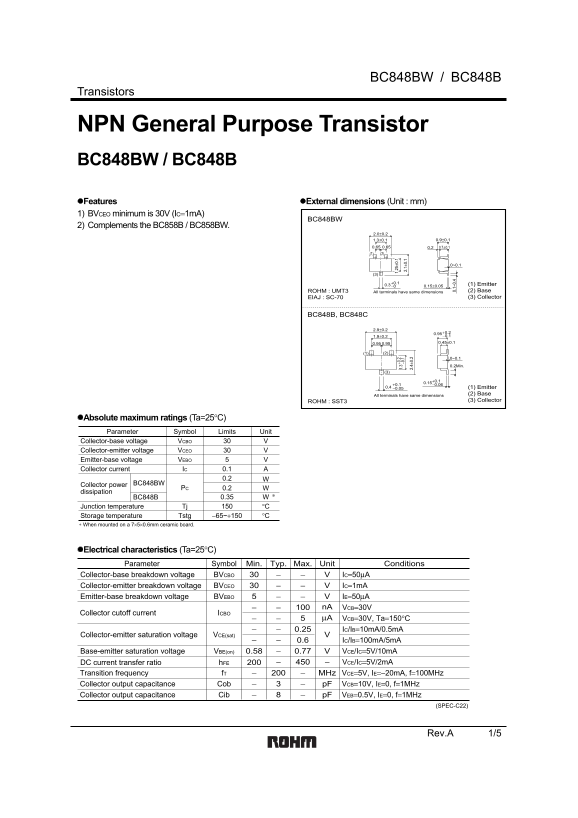

BC848BW / BC848B
Transistors
NPN General Purpose Transistor BC848BW / BC848B
Features External dimensions (Unit : mm)
1) BVCEO minimum is 30V (IC=1m A)
BC848BW
2) Complements the BC858B / BC858BW.
+0.1 (1) Emitter
ROHM : UMT3 All terminals have same dimensions (2) Base EIAJ : SC-70 (3) Collector
BC848B, BC848C
0~0.1 0.2Min.
0.4 −0.05 (1) Emitter
All terminals have same dimensions (2) Base
1. +0 .2 (3) Collector
ROHM : SST3 −0 .1
Absolute maximum ratings (Ta=25°C) Parameter Symbol Limits Unit
Collector-base voltage VCBO Collector-emitter voltage VCEO
Emitter-base voltage VEBO Collector current IC 0.1
Collector power BC848BW
PC 0.2
dissipation
BC848B 0.35
Junction temperature Tj °C Storage temperature Tstg −65~+150 °C
∗ When mounted on a 7×5×0.6mm ceramic board.
Electrical characteristics (Ta=25°C)
Parameter Symbol Min. Typ. Max. Unit Conditions
Collector-base breakdown voltage BVCBO IC=50µA Collector-emitter breakdown voltage BVCEO IC=1m A
Emitter-base breakdown voltage BVEBO IE=50µA
n A VCB=30V
Collector cutoff current ICBO
µA VCB=30V, Ta=150°C 0.25 IC/IB=10m A/0.5m A
Collector-emitter saturation voltage VCE(sat)
0.6 IC/IB=100m A/5m A
Base-emitter saturation voltage VBE(on) 0.58 0.77 VCE/IC=5V/10m A
DC current transfer ratio h FE VCE/IC=5V/2m A Transition frequency f T MHz VCE=5V, IE=−20m A, f=100MHz Collector output capacitance Cob p F VCB=10V, IE=0, f=1MHz Collector output capacitance Cib p F VEB=0.5V, IE=0, f=1MHz
(SPEC-C22)
Rev.A 1/5
