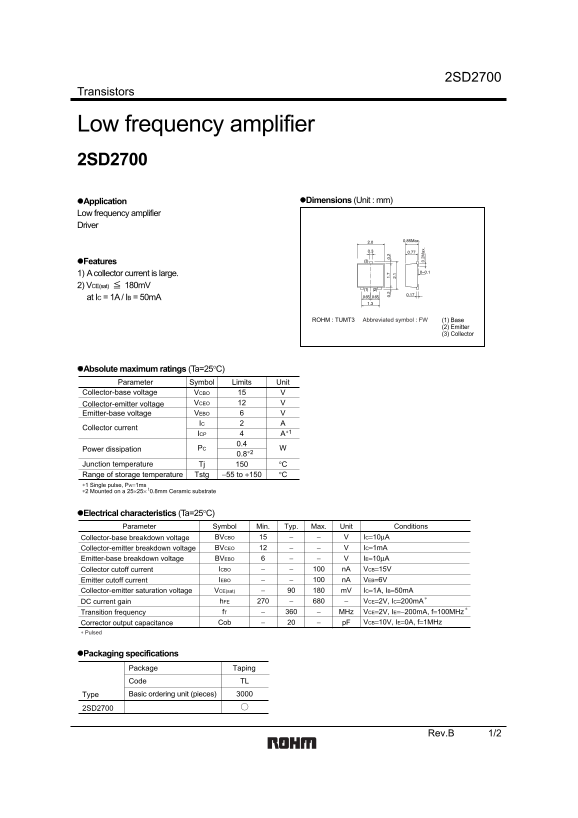

Page 1 Text Content
2SD2700
Transistors
Low frequency amplifier 2SD2700
Application Dimensions (Unit : mm)
Low frequency amplifier Driver
Features 1) A collector current is large. 2) VCE(sat) ≦ 180m V at IC = 1A / IB = 50m A
ROHM : TUMT3 Abbreviated symbol : FW (1) Base
(2) Emitter (3) Collector
Absolute maximum ratings (Ta=25°C) Parameter Symbol Limits Unit Collector-base voltage VCBO
Collector-emitter voltage VCEO Emitter-base voltage VEBO
IC 0. 2M ax
Collector current
Power dissipation PC
Junction temperature Tj °C Range of storage temperature Tstg −55 to +150 °C ∗1 Single pulse, PW=1ms ∗2 Mounted on a 25×25× 0.8mm Ceramic substratet
Electrical characteristics (Ta=25°C)
Parameter Symbol Min. Typ. Max. Unit Conditions
Collector-base breakdown voltage BVCBO IC=10µA Collector-emitter breakdown voltage BVCEO IC=1m A Emitter-base breakdown voltage BVEBO IE=10µA Collector cutoff current ICBO n A VCB=15V Emitter cutoff current IEBO n A VEB=6V
Collector-emitter saturation voltage VCE(sat) m V IC=1A, IB=50m A
DC current gain h FE VCE=2V, IC=200m A Transition frequency f T MHz VCE=2V, IE=−200m A, f=100MHz
Corrector output capacitance Cob p F VCB=10V, IE=0A, f=1MHz
∗ Pulsed
Packaging specifications
Package Taping Code TL Basic ordering unit (pieces) 3000Type
2SD2700
Rev.B 1/2
Page Summary Contents For ROHM 2SD2700 User Guide
Manual Details
| Brand | ROHM |
|---|---|
| Pages | 3 |
| File Size | 92.53 KB |
| Published | June 05, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the Collector-emitter saturation voltage (VCE(sat)) under standard operating conditions?
It is rated at 90 mV when running with an IC of 1A and a IB of 50mA.
Can this transistor be used in safety-critical applications like medical or aerospace machinery?
No; for equipment requiring extremely high reliability where failure endangers life, consult a sales representative in advance.
What is the maximum total power dissipation rating (PC)?
The maximum power dissipation is 0.8 W, based on mounting it on a specified ceramic substrate.
Are these products suitable for use with general electronic equipment?
Yes, they are designed to be used with ordinary electronic equipment or devices like audio-visual or office automation gear.
