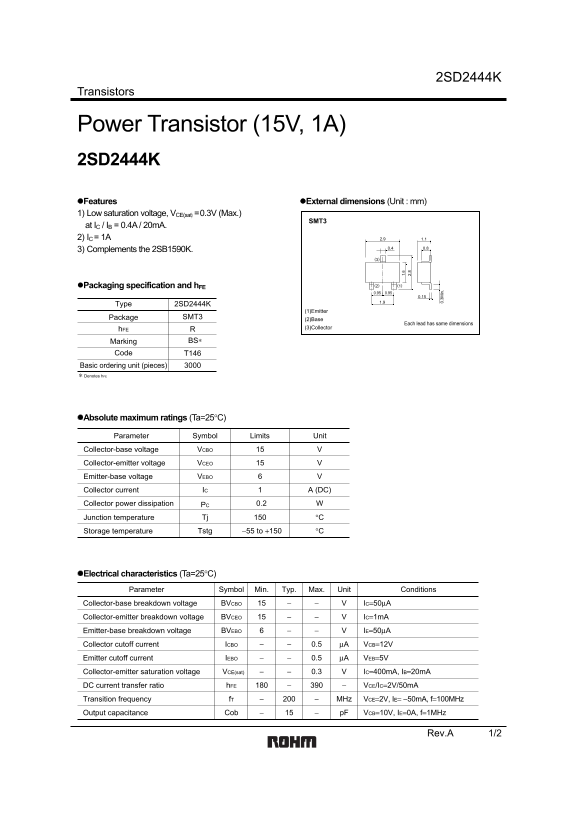

Page 1 Text Content
2SD2444K
Transistors
Power Transistor (15V, 1A) 2SD2444K Features External dimensions (Unit : mm) 1) Low saturation voltage, VCE(sat) = 0.3V (Max.)
at IC / IB = 0.4A / 20m A. 2) IC = 1A 2.9 1.1
3) Complements the 2SB1590K.
Packaging specification and h FE (2) (1) 0.95 0.95
Type 2SD2444K
(1)Emitter
Package SMT3 (2)Base
Each lead has same dimensions
(3)Collector
Marking BS∗
Code T146
Basic ordering unit (pieces) ∗ Denotes h FE
Absolute maximum ratings (Ta=25°C)
Parameter Symbol Limits Unit
0. 3M in
Collector-base voltage VCBO Collector-emitter voltage VCEO Emitter-base voltage VEBO
Collector current IC A (DC)
Collector power dissipation PC 0.2
Junction temperature Tj °C Storage temperature Tstg −55 to +150 °C
Electrical characteristics (Ta=25°C)
Parameter Symbol Min. Typ. Max. Unit Conditions
Collector-base breakdown voltage BVCBO IC=50µA
Collector-emitter breakdown voltage BVCEO IC=1m A
Emitter-base breakdown voltage BVEBO IE=50µA
Collector cutoff current ICBO 0.5 µA VCB=12V
Emitter cutoff current IEBO 0.5 µA VEB=5V
Collector-emitter saturation voltage VCE(sat) 0.3 IC=400m A, IB=20m A
DC current transfer ratio h FE VCE/IC=2V/50m A−
Transition frequency f T MHz VCE=2V, IE= −50m A, f=100MHz
Output capacitance Cob p F VCB=10V, IE=0A, f=1MHz
Rev.A 1/2
