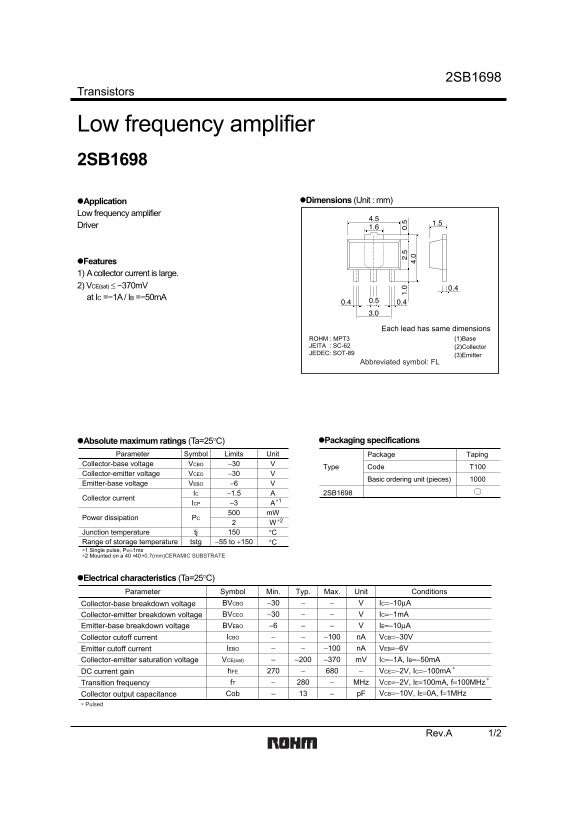

Page 1 Text Content

2SB1698

Transistors

Low frequency amplifier 2SB1698

Application Dimensions (Unit : mm)

Low frequency amplifier Driver

Features 1) A collector current is large. 2) VCE(sat) ≤ −370m V at IC =−1A / IB =−50m A

Each lead has same dimensions

ROHM : MPT3 (1)Base

JEITA : SC-62 (2)Collector JEDEC: SOT-89

(3)Emitter

Abbreviated symbol: FL

Absolute maximum ratings (Ta=25°C) Packaging specifications

Parameter Symbol Limits Unit Package Taping

Collector-base voltage VCBO −30

Type Code T100

Collector-emitter voltage VCEO −30

Basic ordering unit (pieces)

Emitter-base voltage VEBO −6

IC −1.5 2SB1698

Collector current

ICP −3

Power dissipation PC

Junction temperature tj °C Range of storage temperature tstg −55 to +150 °C

∗1 Single pulse, PW=1ms

∗2 Mounted on a 40 +40+ 0.7(mm)CERAMIC SUBSTRATE

Electrical characteristics (Ta=25°C)

Parameter Symbol Min. Typ. Max. Unit Conditions

Collector-base breakdown voltage BVCBO −30 IC=−10µA

Collector-emitter breakdown voltage BVCEO −30 IC=−1m A

Emitter-base breakdown voltage BVEBO −6 IE=−10µA

Collector cutoff current ICBO −100 n A VCB=−30V

Emitter cutoff current IEBO −100 n A VEB=−6V

Collector-emitter saturation voltage VCE(sat) −200 −370 m V IC=−1A, IB=−50m A DC current gain h FE VCE=−2V, IC=−100m A

Transition frequency f T MHz VCE=−2V, IE=100m A, f=100MHz Collector output capacitance Cob p F VCB=−10V, IE=0A, f=1MHz

∗ Pulsed

Rev.A 1/2
