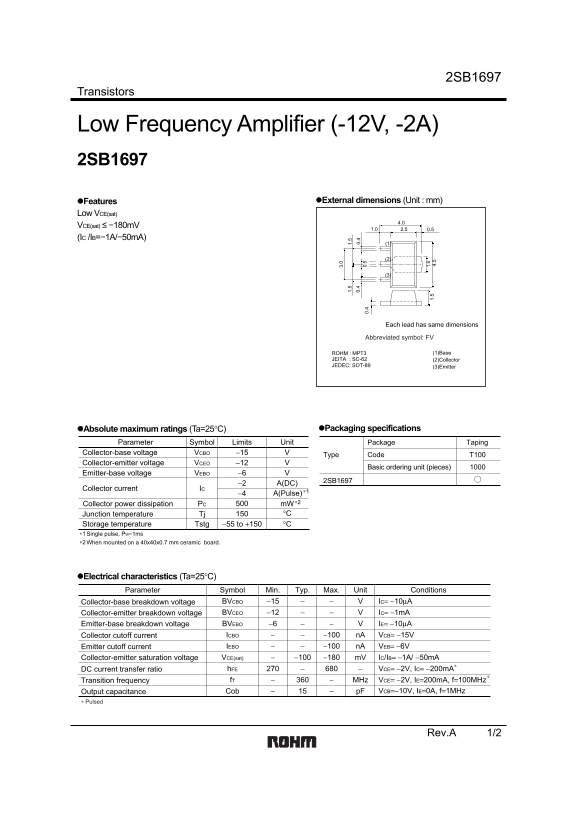

2SB1697

Transistors

Low Frequency Amplifier (-12V, -2A) 2SB1697

Features External dimensions (Unit : mm)

Low VCE(sat)

VCE(sat) ≤ −180m V

(IC /IB=−1A/−50m A)

Each lead has same dimensions

Abbreviated symbol: FV

ROHM : MPT3 (1)Base

JEITA : SC-62 (2)Collector 0. 0.

JEDEC: SOT-89 0. 0.

(3)Emitter

Absolute maximum ratings (Ta=25°C) Packaging specifications 1.

Parameter Symbol Limits Unit Package Taping

Collector-base voltage VCBO −15

Type Code T100

Collector-emitter voltage VCEO −12

Basic ordering unit (pieces)

Emitter-base voltage VEBO −6

2SB1697

−2 A(DC)

Collector current IC

−4 A(Pulse) ∗2 Collector power dissipation PC m W Junction temperature Tj °C Storage temperature Tstg −55 to +150 °C

∗1 Single pulse, PW=1ms ∗2 When mounted on a 40x40x0.7 mm ceramic board.

Electrical characteristics (Ta=25°C)

Parameter Symbol Min. Typ. Max. Unit Conditions

Collector-base breakdown voltage BVCBO −15 IC= −10µA

Collector-emitter breakdown voltage BVCEO −12 IC= −1m A

Emitter-base breakdown voltage BVEBO −6 IE= −10µA

Collector cutoff current ICBO −100 n A VCB= −15V Emitter cutoff current IEBO −100 n A VEB= −6V

Collector-emitter saturation voltage VCE(sat) −100 −180 m V IC/IB= −1A/ −50m A DC current transfer ratio h FE VCE= −2V, IC= −200m A Transition frequency f T MHz VCE= −2V, IE=200m A, f=100MHz

Output capacitance Cob p F VCB=−10V, IE=0A, f=1MHz

∗ Pulsed

Rev.A 1/2
