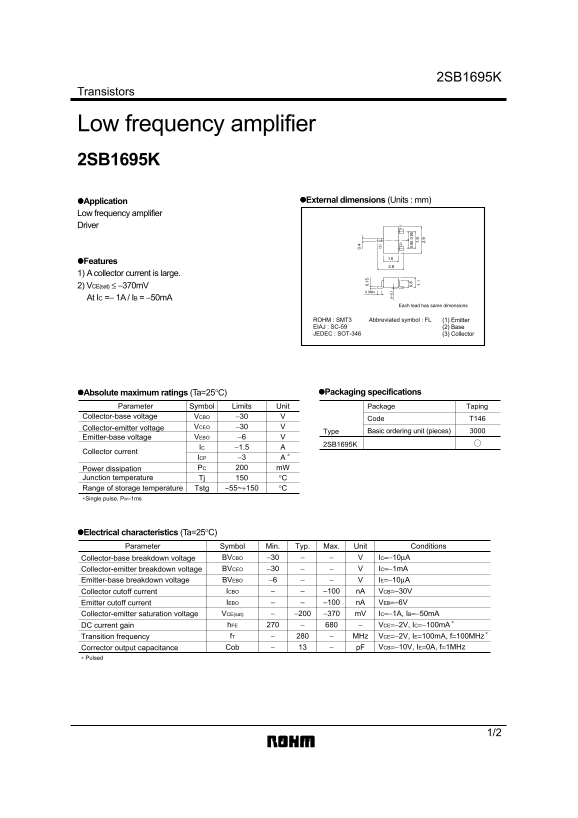

Page 1 Text Content
2SB1695K
Transistors
Low frequency amplifier 2SB1695K
!Application !External dimensions (Units : mm)
Low frequency amplifier Driver
!Features
1) A collector current is large. 2) VCE(sat) ≤ −370m V At IC =− 1A / IB = −50m A
Each lead has same dimensions
ROHM : SMT3 Abbreviated symbol : FL (1) Emitter
EIAJ : SC-59 (2) Base JEDEC : SOT-346 (3) Collector
0~ 0. 10.3Min.
!Absolute maximum ratings (Ta=25°C) !Packaging specifications
Parameter Symbol Limits Unit Package Taping
Collector-base voltage VCBO −30 1. 1.
Code T146
Collector-emitter voltage VCEO −30
Basic ordering unit (pieces) 3000Type
Emitter-base voltage VEBO −6
2SB1695K
IC −1.5
Collector current
ICP −3
Power dissipation PC m W
Junction temperature Tj °C Range of storage temperature Tstg −55~+150 °C ∗Single pulse, PW=1ms
!Electrical characteristics (Ta=25°C)
Parameter Symbol Min. Typ. Max. Unit Conditions
Collector-base breakdown voltage BVCBO −30 IC=−10µA
Collector-emitter breakdown voltage BVCEO −30 IC=−1m A
Emitter-base breakdown voltage BVEBO −6 IE=−10µA
Collector cutoff current ICBO −100 n A VCB=−30V Emitter cutoff current IEBO −100 n A VEB=−6V
Collector-emitter saturation voltage VCE(sat) −200 −370 m V IC=−1A, IB=−50m A DC current gain h FE VCE=−2V, IC=−100m A Transition frequency f T MHz VCE=−2V, IE=100m A, f=100MHz
Corrector output capacitance Cob p F VCB=−10V, IE=0A, f=1MHz
∗ Pulsed
