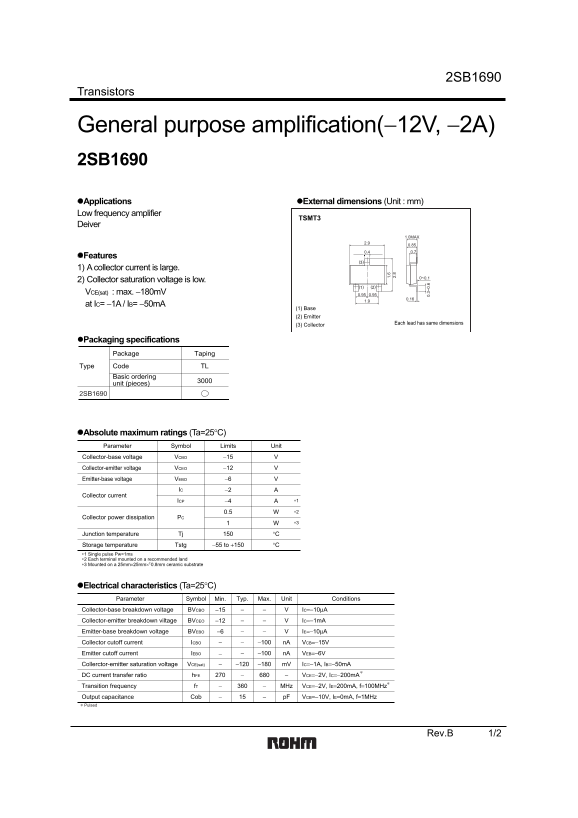

Page 1 Text Content

2SB1690

Transistors

General purpose amplification(−12V, −2A) 2SB1690

Applications External dimensions (Unit : mm) Low frequency amplifier

TSMT3

Deiver

1.0MAX

Features

1) A collector current is large.

2) Collector saturation voltage is low.

VCE(sat) : max. −180m V 0.950.95

at IC= −1A / IB= −50m A

(1) Base (2) Emitter

(3) Collector Each lead has same dimensions

Packaging specifications Package Taping Type Code TL

Basic ordering unit (pieces)

1. 2SB1690 2.

Absolute maximum ratings (Ta=25°C)

Parameter Symbol Limits Unit

Collector-base voltage VCBO −15 Collector-emitter voltage VCEO −12

Emitter-base voltage VEBO −6 IC −2

Collector current

ICP A−4 ∗1

Collector power dissipation PC

Junction temperature Tj °C Storage temperature Tstg −55 to +150 °C ∗1 Single pulse Pw=1ms ∗2 Each terminal mounted on a recommended land ∗3 Mounted on a 25mm×25mm× t 0.8mm ceramic substrate

Electrical characteristics (Ta=25°C)

Parameter Symbol Min. Typ. Max. Unit Conditions

Collector-base breakdown voltage BVCBO −15 IC=−10µA Collector-emitter breakdown viltage BVCEO −12 IC=−1m A Emitter-base breakdown voltage BVEBO −6 IE=−10µA Collector cutoff current ICBO −100 n A VCB=−15V Emitter cutoff current IEBO −100 n A VEB=−6V

Collerctor-emitter saturation voltage VCE(sat) −120 −180 m V IC=−1A, IB=−50m A

DC current transfer ratio h FE VCE=−2V, IC=−200m A

Transition frequency f T VCE=−2V, IE=200m A, f=100MHz MHz

Output capacitance Cob p F VCB=−10V, IE=0m A, f=1MHz

Pulsed

Rev.B 1/2
