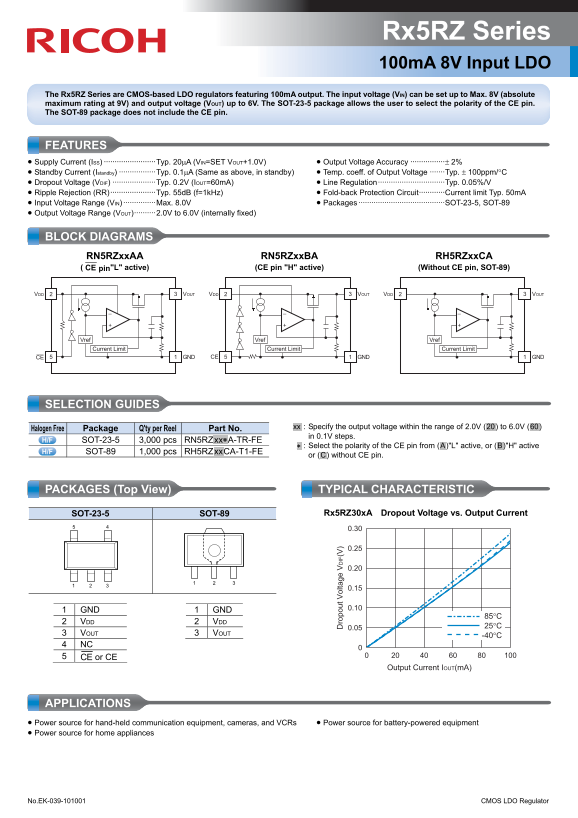

Page 1 Text Content
Rx5RZ Series 100m A 8V Input LDO
The Rx5RZ Series are CMOS-based LDO regulators featuring 100m A output. The input voltage (VIN) can be set up to Max. 8V (absolute maximum rating at 9V) and output voltage (VOUT) up to 6V. The SOT-23-5 package allows the user to select the polarity of the CE pin. The SOT-89 package does not include the CE pin.
FEATURES • Supply Current (ISS) ························Typ. 20μA (VIN=SET VOUT+1.0V) • Output Voltage Accuracy ················± 2% • Standby Current (Istandby) ·················Typ. 0.1μA (Same as above, in standby) • Temp. coeff. of Output Voltage ·······Typ. ± 100ppm/°C • Dropout Voltage (VDIF) ····················Typ. 0.2V (IOUT=60m A) • Line Regulation·······························Typ. 0.05%/V • Ripple Rejection (RR)·····················Typ. 55d B (f=1k Hz) • Fold-back Protection Circuit············Current limit Typ. 50m A • Input Voltage Range (VIN) ···············Max. 8.0V • Packages ········································SOT-23-5, SOT-89 • Output Voltage Range (VOUT)··········2.0V to 6.0V (internally fixed)
BLOCK DIAGRAMS
RN5RZxx AA RN5RZxx BA RH5RZxx CA CE pin"L" active) (CE pin "H" active) (Without CE pin, SOT-89)
VDD VOUT VDD VOUT VDD VOUT
Vref ro lt Vref IF (V Vref
Current Limit Current Limit Current Limit
CE GND CE GND GND
SELECTION GUIDES
Part No. .xx. : Specify the output voltage within the range of 2.0V (.20.) to 6.0V (.60.)
Halogen Free Package Q'ty per Reel
in 0.1V steps.
SOT-23-5 3,000 pcs RN5RZ.xx∗ A-TR-FE
.∗ : Select the polarity of the CE pin from (.A.)"L" active, or (.B.)"H" active
SOT-89 1,000 pcs RH5RZ.xx CA-T1-FE
or (.C.) without CE pin.
PACKAGES (Top View) TYPICAL CHARACTERISTIC
SOT-23-5 SOT-89 Rx5RZ30x A Dropout Voltage vs. Output Current
1 GND 1 GND
2 VDD 2 VDD
3 VOUT 3 VOUT
4 NC 5 CE or CE
Output Current IOUT(m A)
APPLICATIONS • Power source for hand-held communication equipment, cameras, and VCRs • Power source for battery-powered equipment • Power source for home appliances
No.EK-039-101001 CMOS LDO Regulator
