R3111x SERIES

LOW VOLTAGE DETECTOR

NO.EA-056-120423

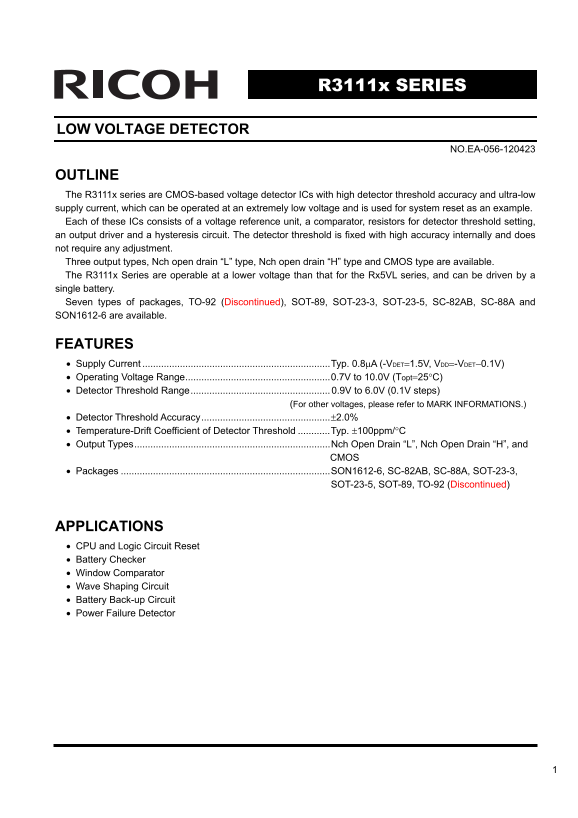

OUTLINE The R3111x series are CMOS-based voltage detector ICs with high detector threshold accuracy and ultra-low supply current, which can be operated at an extremely low voltage and is used for system reset as an example. Each of these ICs consists of a voltage reference unit, a comparator, resistors for detector threshold setting, an output driver and a hysteresis circuit. The detector threshold is fixed with high accuracy internally and does not require any adjustment. Three output types, Nch open drain “L” type, Nch open drain “H” type and CMOS type are available. The R3111x Series are operable at a lower voltage than that for the Rx5VL series, and can be driven by a single battery. Seven types of packages, TO-92 (Discontinued), SOT-89, SOT-23-3, SOT-23-5, SC-82AB, SC-88A and SON1612-6 are available.

FEATURES • Supply Current ......................................................................Typ. 0.8μA (-VDET=1.5V, VDD=-VDET−0.1V) • Operating Voltage Range......................................................0.7V to 10.0V (Topt=25°C) • Detector Threshold Range.................................................... 0.9V to 6.0V (0.1V steps) (For other voltages, please refer to MARK INFORMATIONS.) • Detector Threshold Accuracy................................................±2.0% • Temperature-Drift Coefficient of Detector Threshold ............Typ. ±100ppm/°C • Output Types.........................................................................Nch Open Drain “L”, Nch Open Drain “H”, and CMOS • Packages ..............................................................................SON1612-6, SC-82AB, SC-88A, SOT-23-3, SOT-23-5, SOT-89, TO-92 (Discontinued)

APPLICATIONS • CPU and Logic Circuit Reset • Battery Checker • Window Comparator • Wave Shaping Circuit • Battery Back-up Circuit • Power Failure Detector

Page Summary Contents For RICOH R3111x SERIES Owner's Manual User Guide

Page 1 R3111x SERIES LOW VOLTAGE DETECTOR NO.EA-056-120423 OUTLINE The R3111x series are CMOS-based voltage detector ICs with high detector threshold accuracy and ultra-low supply current, which can be opera...
Page 2 BLOCK DIAGRAMS R3111xxxx A R3111xxxx B OUTVDD OUTVDD Vref Vref GND GND R3111xxxx C
Page 3 SELECTION GUIDE The package type, the detector threshold, the output type and the taping type for the ICs can be selected at the users’ request. The selection can be made with designating the part num...
Page 4 PIN CONFIGURATIONS TO-92 SOT-89 SOT-23-3 SOT-23-5 (mark side) (mark side) (mark side) (mark side) SC-82AB SC-88A SON1612-6 (mark side) (mark side) (mark side) PIN DESCRIPTIONS TO-92 (Discontinued) SOT...
Page 5 ABSOLUTE MAXIMUM RATINGS Symbol Item Rating Unit VDD Supply Voltage 12 V Output Voltage (CMOS) VSS−0.3 to VDD+0.3 Output Voltage (Nch) VSS−0.3 to 12 IOUT Output Current 70 m A Power Dissipation (TO-92...
Page 6 ELECTRICAL CHARACTERISTICS • R3111xxxx A Topt=25°C Symbol Item Conditions Min. Typ. Max. Unit -VDET Detector Threshold -VDET -VDET -VDET -VDET VHYS Detector Threshold Hysteresis -VDET × 0.03 × 0.05 × ...
Page 7 • R3111xxxx B Topt=25°C Symbol Item Conditions Min. Typ. Max. Unit -VDET Detector Threshold -VDET × 0.98 -VDET × 1.02 -VDET -VDET VHYS Detector Threshold Hysteresis -VDET × 0.03 × 0.05 × 0.07 VDD=-VDE...
Page 8 • R3111xxxx C Topt=25°C Symbol Item Conditions Min. Typ. Max. Unit -VDET Detector Threshold -VDET -VDET -VDET -VDET VHYS Detector Threshold Hysteresis -VDET × 0.03 × 0.05 × 0.07 VDD=-VDET −0.10V 0.8 2...
Page 9 TIMING CHART Supply Released Voltage +VDET Voltage Detector Threshold Detector Threshold Detector Threshold Detector Threshold -VDET (VDD) Hysteresis Hysteresis Hysteresis Minimum Operating Voltage VD...
Page 10 ELECTRICAL CHARACTERISTICS BY DETECTOR THRESHOLD • R3111x09x to R3111x60x Detector Threshold Detector Threshold Part Hysteresis Supply Current 1 Supply Current 2 Number -VDET[V] VHYS[V] ISS1[μA] ISS2[...
Page 11 Minimum Detector Threshold Output Current 1 Output Current 2 *3 Output Delay Time Operating Voltage Temperature Coefficient IOUT1[m A] IOUT2[m A] t PLH[μs] VDDL[V] Δ-VDET/ΔTopt[ppm/°C] Condition Min. ...
Page 12 OPERATION • Operation of R3111xxxx A Comparator OUT pin should be pulled-up to VDD or an external voltage level. Rb Vref Nch Block Diagram (R3111xxxx A) Step 1 2 3 4 Released Voltage +VDET Detector Th...
Page 13 • Operation of R3111xxxx B Comparator OUT pin should be pulled-up to VDD or an external voltage level. Rb Vref Nch Block Diagram (R3111xxxx B) Step 1 2 3 Released Voltage +VDET A BDetector Threshold H...
Page 14 • Operation of R3111xxxx C Ra Pch Comparator Rb Vref Nch Block Diagram (R3111xxxx C) Step 1 2 3 4 Released Voltage +VDET Comparator (+) A BDetector Threshold Hysteresis II II II Detector Threshold -VD...
Page 15 TEST CIRCUITS VDD 470kΩ R3111x Series Series OUT Supply Current Test Circuit Detector Threshold Test Circuit (Pull-up circuit is not necessary for CMOS Output type.) VDD VDD VDS IOUT IOUT R3111x VIN R...
Page 16 et ec to r T hr es ho ld (V up pl ur re nt IS (μ up pl ur re nt IS (μ TYPICAL CHARACTERISTICS 1) Supply Current vs. Input Voltage R3111x09xx R3111x27xx 2.5 2.0 Topt=85°C Topt=85°C et ec to r T hr es h...
Page 17 ut pu t V ol ta ge (V et ec to r T hr es ho ld (V ut pu t V ol ta ge (V R3111x45xx 4.8 +VDET -VDET Temperature Topt(°C) 3) Output Voltage vs. Input Voltage R3111x09x C R3111x09x A ut pu t V ol ta ge (...
Page 18 ut pu t C ur re nt IO (m ut pu t C ur re nt IO (μ ut pu t V ol ta ge (V 5V Pull-up 470kΩ Topt=-40°C 25°C Topt=-40°C Input Voltage VIN(V) Input Voltage VIN(V) ut pu t C ur re nt IO (μ ut pu t C ur re n...
Page 19 ut pu t C ur re nt IO (m ut pu t C ur re nt IO (m ut pu t C ur re nt IO (μ R3111x45xx R3111x45xx Topt=25°C Topt=25°C VDD=4.5V 4.0V VDD=0.8V VDS(V) VDS(V) 5) Nch Driver Output Current vs. Input Voltage...
Page 20 ut pu t D el ay im t P (m s) ut pu t C ur re nt IO (m ut pu t C ur re nt IO (m 6) Pch Driver Output Current vs. Input Voltage R3111x09x C R3111x27x C Topt=25°C Topt=25°C VDS=0.7V VDS=2.1V Input Voltag...
Page 21 ut pu t D el ay im t P (m s) ut pu t D el ay im t P (m s) R3111x ut pu t D el ay im t P (m s) t PLH 0.01 t PHL Load Capacitance COUT(μF) 8) Output Delay Time vs. Input Pin Capacitance R3111x09x A R311...
Page 22 TYPICAL APPLICATION • R3111xxxx A CPU Reset Circuit (Nch Open Drain Output) Case 1. Input Voltage to R3111xxxx A is equal to Case 2. Input Voltage to R3111xxxx A is unequal to Input Voltage to CPU Inp...
Page 23 • Voltage level Indicator Circuit (lighted when the power runs out) (Nch Open Drain Output) R3111xxxx A So la r B at te ry Series D1 • Detector Threshold Adjustable Circuit (Nch Open Drain Output) Adj...
Page 24 TECHNICAL NOTES When R3111xxxx A/B (Nch Open Drain Output Type) is used in Figure A or Figure B, if impedance of Voltage Supply pin, VDD and VDD of this IC is large, detector threshold level would shi...
Page 25 1. The products and the product specifications described in this document are subject to change or discontinuation of production without notice for reasons such as improvement. Therefore, before decid...
