The R1150H series is a versatile CMOS voltage regulator (VR) IC featuring built-in Voltage Detectors (VDET). Designed for robust power management, these regulators offer low dropout voltage, high output accuracy (±2.0%), and ultra-low supply current, making them ideal for battery-operated and critical equipment. The manual provides detailed technical specifications, coverage of various monitoring modes (VOUT, SENSE, VIN), and operational guides. This component is essential for engineers developing reset and power source circuits in applications such as mobile telecommunication gear, cameras, videos, and home appliances.

📄 Preview PAGE OF 30

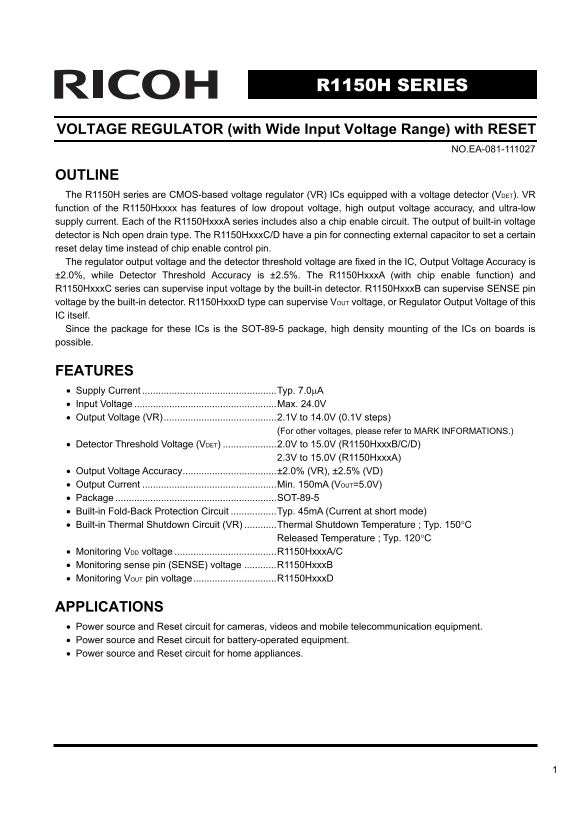

Page 1 Text Content

R1150H SERIES

VOLTAGE REGULATOR (with Wide Input Voltage Range) with RESET

NO.EA-081-111027

OUTLINE The R1150H series are CMOS-based voltage regulator (VR) ICs equipped with a voltage detector (VDET). VR function of the R1150Hxxxx has features of low dropout voltage, high output voltage accuracy, and ultra-low supply current. Each of the R1150Hxxx A series includes also a chip enable circuit. The output of built-in voltage detector is Nch open drain type. The R1150Hxxx C/D have a pin for connecting external capacitor to set a certain reset delay time instead of chip enable control pin. The regulator output voltage and the detector threshold voltage are fixed in the IC, Output Voltage Accuracy is ±2.0%, while Detector Threshold Accuracy is ±2.5%. The R1150Hxxx A (with chip enable function) and R1150Hxxx C series can supervise input voltage by the built-in detector. R1150Hxxx B can supervise SENSE pin voltage by the built-in detector. R1150Hxxx D type can supervise VOUT voltage, or Regulator Output Voltage of this IC itself. Since the package for these ICs is the SOT-89-5 package, high density mounting of the ICs on boards is possible.

FEATURES • Supply Current ..................................................Typ. 7.0μA • Input Voltage .....................................................Max. 24.0V • Output Voltage (VR)..........................................2.1V to 14.0V (0.1V steps) (For other voltages, please refer to MARK INFORMATIONS.) • Detector Threshold Voltage (VDET) ....................2.0V to 15.0V (R1150Hxxx B/C/D)

2.3V to 15.0V (R1150Hxxx A)

• Output Voltage Accuracy...................................±2.0% (VR), ±2.5% (VD) • Output Current ..................................................Min. 150m A (VOUT=5.0V) • Package ............................................................SOT-89-5 • Built-in Fold-Back Protection Circuit .................Typ. 45m A (Current at short mode) • Built-in Thermal Shutdown Circuit (VR) ............Thermal Shutdown Temperature ; Typ. 150°C

Released Temperature ; Typ. 120°C

• Monitoring VDD voltage ......................................R1150Hxxx A/C • Monitoring sense pin (SENSE) voltage ............R1150Hxxx B • Monitoring VOUT pin voltage...............................R1150Hxxx D

APPLICATIONS • Power source and Reset circuit for cameras, videos and mobile telecommunication equipment. • Power source and Reset circuit for battery-operated equipment. • Power source and Reset circuit for home appliances.

Page Summary Contents For RICOH R1150H SERIES Owner's Manual User Guide

Page 1 R1150H SERIES VOLTAGE REGULATOR (with Wide Input Voltage Range) with RESET NO.EA-081-111027 OUTLINE The R1150H series are CMOS-based voltage regulator (VR) ICs equipped with a voltage detector (VDET)....
Page 2 BLOCK DIAGRAMS R1150Hxxx A R1150Hxxx B With CE pin, VIN detect With SENSE pin VDD VOUT VDD VOUT Vref Vref Thermal Current Limit Thermal Current Limit Shutdown Shutdown CE GND SENSE GND VDET VDET Vref ...
Page 3 SELECTION GUIDE The output voltage, detector threshold and the usage of pin No.3 (as a kind of types in the R1150H Series ) for the ICs can be selected at the user’s request. Product Name Package Quan...
Page 4 ABSOLUTE MAXIMUM RATINGS Symbol Item Rating Unit VIN Input Voltage 26.0 V VCE Input Voltage (CE Input Pin, A Version) −0.3 to VIN+0.3 V VSENSE Input Voltage (SENSE Input Pin, B Version) −0.3 to VIN+0....
Page 5 ELECTRICAL CHARACTERISTICS • R1150Hxxx A Topt=25°C Symbol Item Conditions Min. Typ. Max. Unit VIN Input Voltage 24.0 V VIN=VCE ISS Supply Current VOUT ≥ (-VDET): VIN=VOUT+2.0V 7 14 μA VOUT < (-VDET...
Page 6 • Standby Current (Topt=25°C) Supply Current (µA) Detector Threshold Voltage -VDET (V) Typ. Max. 2.3V ≤ (-VDET) ≤ 3.0V 2.5 5.0 3.1V ≤ (-VDET) ≤ 15.0V 3.0 6.0 VR part • Output Current (Topt=25°C) Outpu...
Page 7 • R1150Hxxx B Topt=25°C Symbol Item Conditions Min. Typ. Max. Unit VIN Input Voltage 24.0 V VOUT≥ (-VDET): VIN=SENSE=VOUT+2.0V ISS Supply Current 7 14 µA VOUT < (-VDET): VIN=SENSE=(-VDET)+2.0V TTSD...
Page 8 • Output Current (Topt=25°C) Output Current (m A) Output Voltage VOUT (V) Min. Typ. 2.1V ≤ VOUT ≤ 2.9V 90 140 3.0V ≤ VOUT ≤ 4.0V 120 170 4.1V ≤ VOUT ≤ 14.0V 150 200 VR part • Load Regulation (Topt=25°...
Page 9 • R1150Hxxx C Topt=25°C Symbol Item Conditions Min. Typ. Max. Unit VIN Input Voltage 24.0 V ISS Supply Current VOUT ≥ (-VDET):VIN=VOUT+2.0V VOUT < (-VDET):VIN=(-VDET)+2.0V 7 14 µA TTSD Thermal Shut...
Page 10 • Output Current (Topt=25°C) Output Current (m A) Output Voltage VOUT (V) Min. Typ. 2.1V ≤ VOUT ≤ 2.9V 90 140 3.0V ≤ VOUT ≤ 4.0V 120 170 4.1V ≤ VOUT ≤ 14.0V 150 200 • Load Regulation (Topt=25°C) Load ...
Page 11 • R1150Hxxx D Topt=25°C Symbol Item Conditions Min. Typ. Max. Unit VIN Input Voltage 24.0 V ISS Supply Current VIN=VOUT+2.0V 7 14 µA TSD Thermal Shutdown Temperature 150 °C TSR Thermal Shutdown Releas...
Page 12 • Output Current (Topt=25°C) Output Current (m A) Output Voltage VOUT (V) Min. Typ. 2.1V ≤ VOUT ≤ 2.9V 90 140 3.0V ≤ VOUT ≤ 4.0V 120 170 4.1V ≤ VOUT ≤ 14.0V 150 200 • Load Regulation (Topt=25°C) Load ...
Page 13 TEST CIRCUITS • R1150Hxxx A VDD 4VDET VDD 4VDET R1150Hxxx A R1150Hxxx A SERIES IOUT SERIES CE VOUTGND CE VOUTGND CINVIN COUT CINVIN COUT CIN=0.1μF, COUT=1μF CIN=0.1μF, COUT=1μF Standard Test Circuit S...
Page 14 • R1150Hxxx B VDD 4VDET VDD VDET R1150Hxxx B R1150Hxxx B SERIES IOUT SERIES SENSE VOUT SENSE VOUT GND GND VIN1 CINVIN2 COUT VIN1 CINVIN2 COUT CIN=0.1μF, COUT=1μF CIN=0.1μF, COUT=1μF Standard Test Circ...
Page 15 • R1150Hxxx C/D VDD 4VDET VDD VDET R1150Hxxx C/D R1150Hxxx C/D SERIES IOUT SERIES CD VOUT CD VOUT GND GND VIN CINCD COUT VIN CIN COUT CIN=0.1μF, COUT=1μF CIN=0.1μF, COUT=1μF Standard Test Circuit Supp...
Page 16 ut pu t V ol ta ge (V ut pu t V ol ta ge (V ut pu t V ol ta ge (V TYPICAL CHARACTERISTICS 1) Output Voltage vs. Temperature R1150H (VR=3.0V) R1150H (VR=5.0V) 3.06 5.10 Temperature Topt(°C) Temperature...
Page 17 ut pu t V ol ta ge (V ut pu t V ol ta ge (V ut pu t V ol ta ge (V R1150H (VR=10.0V) Topt=25°C IOUT=1m A IOUT=20m A IOUT=40m A Input Voltage VIN(V) 3) Output Voltage vs. Output Current R1150H (VR=3.0V)...
Page 18 up pl ur re nt IS (μ ro po ut ol ta ge IF (V ro po ut ol ta ge IF (V 4) Dropout Voltage vs. Output Current R1150H (VR=3.0V) R1150H (VR=5.0V) Output Current IOUT(m A) Output Current IOUT(m A) up pl ur ...
Page 19 up pl ur re nt IS (μ up pl ur re nt IS (μ up pl ur re nt IS (μ R1150H (VR=10.0V) Topt=25°C Input Voltage VIN(V) 6) Supply Current vs. Temperature R1150H (VR=3.0V, VDET=2.5V) R1150H (VR=5.0V, VDET=4.5V...
Page 20 ip pl ej ec tio (d ip pl ej ec tio (d 7) Ripple Rejection vs. Frequency R1150H (VR=3.0V) R1150H (VR=5.0V) Topt=25°C Topt=25°C VIN=5.0VDC+0.5Vp-p, IOUT=20m A, COUT=1μF VIN=7.0VDC+0.5Vp-p, IOUT=20m A, C...
Page 21 8) Input Transient Response ut pu t V ol ta ge (V ut pu t V ol ta ge (V ut pu t V ol ta ge (V R1150H (VR=3.0V) IOUT=20m A, COUT=1μF 3.2 Input Voltage Output Voltage Time T(ms) R1150H (VR=5.0V) IOUT=20...
Page 22 ut ut ol ta (V ut ut ol ta (V ut ut ol ta (V 9) Load Transient Response R1150H (VR=3.0V) Topt=25°C VIN=5.0V, COUT=1μF Output Current Output Voltage Time T (ms) R1150H (VR=5.0V) Topt=25°C VIN=7.0V, COU...
Page 23 ut pu t V ol ta ge (V In pu t V ol ta ge IN (V ut pu t V ol ta ge (V 10) Detector Threshold vs. Temperature R1150H (-VDET=4.5V) R1150H (-VDET=11.0V) +VDET +VDET -VDET 4.5 -VDET Temperature Topt(°C) Te...
Page 24 et ec to ut pu t D el ay im R1150H ut pu t C ur re nt IO (m ut pu t C ur re nt IO (m tp L( μs 12) Nch Driver Output Current vs. VDS R1150H (-VDET=4.5V) R1150H (-VDET=11.0V) VIN=10V VIN=4.0V 9.0V VDS(V...
Page 25 in hr es ho ld ol ta ge (V ut pu t D el ay im tp LH (m s) ut pu t V ol ta ge (V 15) Thermal Shutdown Temperature vs. Output Voltage R1150H (VR=5.0V) VIN=10V, IOUT=1m A Junction Temperature Tjct(°C) in...
Page 26 R1150H in in ur re nt IC (m in in ur re nt IC (μ in in ur re nt IC (μ 18) CD pin Sink Current vs. Input Voltage R1150H (VDET=4.0V) R1150Hxxx D (VDET=9.0V) Input Voltage VIN(V) Input Voltage VIN(V) R11...
Page 27 tp LH s) ut pu t D el ay im tp (m s) in in ur re nt IC (m R1150H (VDET=15.0V) 14.0V VDD=14.5V Source-Drain Voltage VDS(V) 20) Output Delay Time vs. External Capacitance R1150H (VDET=4.0V) tp LH s) tp ...
Page 28 TYPICAL APPLICATIONS VDD 4VDET VDD 4VDET R1150Hxxx B R1150Hxxx A SERIES IOUT SERIES IOUT SENSE VOUT CE VOUTGND VIN1 CINVIN2 COUT CINVIN COUT CIN=0.1μF, COUT=1μF R1150Hxxx A R1150Hxxx B 470kΩ VDD 4VDET...
Page 29 Refer to the following formula for setting the voltage of output and detective value. (VOUT × 0.975) − (-VDET × 1.10) > 0.2 Thermal Shutdown Thermal shutdown function is included in the R1150Hxxx A...
Page 30 1. The products and the product specifications described in this document are subject to change or discontinuation of production without notice for reasons such as improvement. Therefore, before decid...

Manual Details

Brand Ricoh
Pages 30
File Size 354.71 KB
Published June 05, 2026
64 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

What is the purpose of 'x' in the product name (R1150Hxxx)?

The 'xxx' specifies a combination of output voltage and detector threshold.

What is the standard package for these ICs?

The components come in an SOT-89-5 package.

How is a reset delay time set for detection?

In R1150HxxxC/D, an external capacitor can be connected to pin 3 (CD) to set the reset delay time.
