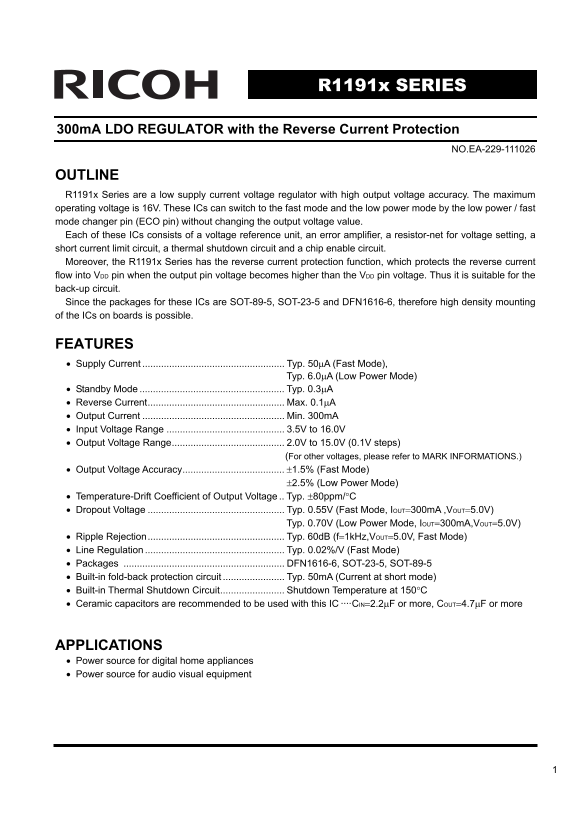

R1191x SERIES

300m A LDO REGULATOR with the Reverse Current Protection

NO.EA-229-111026

OUTLINE R1191x Series are a low supply current voltage regulator with high output voltage accuracy. The maximum operating voltage is 16V. These ICs can switch to the fast mode and the low power mode by the low power / fast mode changer pin (ECO pin) without changing the output voltage value. Each of these ICs consists of a voltage reference unit, an error amplifier, a resistor-net for voltage setting, a short current limit circuit, a thermal shutdown circuit and a chip enable circuit. Moreover, the R1191x Series has the reverse current protection function, which protects the reverse current flow into VDD pin when the output pin voltage becomes higher than the VDD pin voltage. Thus it is suitable for the back-up circuit. Since the packages for these ICs are SOT-89-5, SOT-23-5 and DFN1616-6, therefore high density mounting of the ICs on boards is possible.

FEATURES • Supply Current Typ. 50μA (Fast Mode),

Typ. 6.0μA (Low Power Mode)

• Standby Mode Typ. 0.3μA • Reverse Current................................................... Max. 0.1μA • Output Current Min. 300m A • Input Voltage Range 3.5V to 16.0V • Output Voltage Range.......................................... 2.0V to 15.0V (0.1V steps) (For other voltages, please refer to MARK INFORMATIONS.) • Output Voltage Accuracy...................................... ±1.5% (Fast Mode)

±2.5% (Low Power Mode)

• Temperature-Drift Coefficient of Output Voltage Typ. ±80ppm/°C • Dropout Voltage Typ. 0.55V (Fast Mode, IOUT=300m A ,VOUT=5.0V)

Typ. 0.70V (Low Power Mode, IOUT=300m A,VOUT=5.0V)

• Ripple Rejection................................................... Typ. 60d B (f=1k Hz,VOUT=5.0V, Fast Mode) • Line Regulation Typ. 0.02%/V (Fast Mode) • Packages ............................................................ DFN1616-6, SOT-23-5, SOT-89-5 • Built-in fold-back protection circuit Typ. 50m A (Current at short mode) • Built-in Thermal Shutdown Circuit........................ Shutdown Temperature at 150°C • Ceramic capacitors are recommended to be used with this IC ····CIN=2.2μF or more, COUT=4.7μF or more

APPLICATIONS • Power source for digital home appliances • Power source for audio visual equipment

Page Summary Contents For RICOH R1191x SERIES Owner's Manual User Guide

Page 1 R1191x SERIES 300m A LDO REGULATOR with the Reverse Current Protection NO.EA-229-111026 OUTLINE R1191x Series are a low supply current voltage regulator with high output voltage accuracy. The maximum ...
Page 2 BLOCK DIAGRAM R1191xxxx B R1191xxxx D ECO ECO Thermal Shutdown Thermal Shutdown VDD VOUT VDD VOUT Vref Vref Peak Peak Short Current Short Current Protection Protection Protection Protection Reverse Re...
Page 3 PIN CONFIGURATIONS • DFN1616-6*1 • SOT-23-5 • SOT-89-5 Top View Bottom View (mark side) PIN DISCRIPTIONS • DFN1616-6*1 Pin No Symbol Pin Description 1 ECO Low Power / Fast Mode Changer Pin ("H&qu...
Page 4 ABSOLUTE MAXIMUM RATINGS Symbol Item Rating Unit VIN Input Voltage −0.3 to 18.0 V VCE Input Voltage (CE Pin) −0.3 to 18.0 V VECO Input Voltage (ECO Pin) −0.3 to VIN + 0.3 ≤ 18.0 V VOUT Output Voltage ...
Page 5 ELECTRICAL CHARACTERISTICS VIN=VCE=Set VOUT+3.0V (Max.16V), CIN=2.2μF, COUT=4.7μF IOUT=1m A, unless otherwise noted. The values in are applicable under the condition of −40°C ≤ Topt ≤ 85°C. R1191xxxx ...
Page 6 ELECTRICAL CHARACTERISTICS by OUTPUT VOLTAGE Topt=25°C Dropout Voltage VDIF (V) ECO="H" ECO="L" Output Voltage VOUT (V) Condition Typ. Max. Typ. Max. 2.0 ≤ VOUT < 2.5 1.20 1.80 ...
Page 7 TECHNICAL NOTES When using these ICs, consider the following points: • Phase Compensation In these ICs, phase compensation is made for securing stable operation even if the load current is varied. For...
Page 8 TEST CIRCUITS VDD VOUT C2 VOUT IOUT Series GND CE ECO C1=Ceramic 2.2μF C2=Ceramic 4.7μF Basic Test Circuit VDD VOUT VOUT ISS C2 A R1191x C1 Series GND CE ECO C1=Ceramic 2.2μF C2=Ceramic 4.7μF Test Cir...
Page 9 VDD VOUT VOUT Series VIN IOUT a IOUT b CE ECO C1=Ceramic 2.2μF C2=Ceramic 4.7μF Test Circuit for Load Transient Response
Page 10 ut pu t V ol ta ge (V ut pu t V ol ta ge (V ut pu t V ol ta ge (V TYPICAL CHARACTERISTICS 1) Output Voltage vs. Output Current (C1=2.2μF, C2=4.7μF, Topt=25°C) R1191x020x ECO=H R1191x020x ECO=L 2.5 2.5...
Page 11 ut pu t V ol ta ge (V ut pu t V ol ta ge (V ut pu t V ol ta ge (V 2) Output Voltage vs. Input Voltage (C1=2.2μF, C2=4.7μF, Topt=25°C) R1191x020x ECO=H R1191x020x ECO=L 3.0 3.0 IOUT=0m A IOUT=0m A IOUT...
Page 12 up pl ur re nt IS 1 ( μA up pl ur re nt IS 1 ( μA up pl ur re nt IS 1 ( μA 3) Supply Current vs. Input Voltage (C1=2.2μF, C2=4.7μF, Topt=25°C) R1191x020x ECO=H R1191x020x ECO=L up pl ur re nt IS 2 ( μ...
Page 13 ut pu t V ol ta ge (V ut pu t V ol ta ge (V ut pu t V ol ta ge (V 4) Output Voltage vs. Temperature (C1=2.2μF, C2=4.7μF, IOUT=1m A) R1191x020x ECO=H R1191x020x ECO=L VIN=5.0V VIN=5.0V ut pu t V ol ta ...
Page 14 up pl ur re nt IS 1 ( μA up pl ur re nt IS 1 ( μA up pl ur re nt IS 1 ( μA 5) Supply Current vs. Temperature (C1=2.2μF, C2=4.7μF) R1191x020x ECO=H R1191x020x ECO=L VIN=5.0V VIN=5.0V -40 -25 up pl ur r...
Page 15 ro po ut ol ta ge IF (V ev er se ur re nt IR (μ ta nd by ur re nt Is ta nd by (μ 6) Standby Current vs. Input Voltage (C1=2.2μF, C2=4.7μF) Input Voltage VIN (V) ro po ut ol ta ge IF (V 7) Reverse Curr...
Page 16 ro po ut ol ta ge IF (V ro po ut ol ta ge IF (V ro po ut ol ta ge IF (V R1191x025x ECO=H R1191x025x ECO=L 2.50 2.50 Output Current IOUT (m A) Output Current IOUT (m A) ro po ut ol ta ge IF (V ro po ut...
Page 17 ro po ut ol ta ge IF (V ro po ut ol ta ge IF (V ro po ut ol ta ge IF (V R1191x120x ECO=H R1191x120x ECO=L 0.80 0.80 Output Current IOUT (m A) Output Current IOUT (m A) R1191x150x ECO=H R1191x150x ECO=...
Page 18 ip pl ej ec tio (d ip pl ej ec tio (d ip pl ej ec tio (d 10) Ripple Rejection vs. Input Voltage (C1=none, C2=4.7μF, IOUT=30m A, Ripple=0.5Vp-p, Topt=25°C) R1191x020x ECO=H R1191x020x ECO=L f=1k Hz f=1...
Page 19 ip pl ej ec tio (d ip pl ej ec tio (d ip pl ej ec tio (d 11) Ripple Rejection vs. Frequency (C1= none, C2=4.7μF, Ripple=0.5Vp-p, Topt=25°C) R1191x020x ECO=H R1191x020x ECO=L VIN=5.0V VIN=5.0V IOUT=1m ...
Page 20 ut pu t V ol ta ge (V ut pu t V ol ta ge (V ut pu t V ol ta ge (V 12) Input Transient Response (C1=none, C2=4.7μF, IOUT=1m A, tr=tf=1μs, Topt=25°C) R1191x020x ECO=H R1191x020x ECO=L Input Voltage Inpu...
Page 21 ut pu t V ol ta ge (V ut pu t V ol ta ge (V ut pu t V ol ta ge (V 13) Load Transient Response (C1=2.2μF, C2=4.7μF, tr=tf=0.1μs, Topt=25°C) R1191x020x ECO=H VIN=5.0V Output Current 1.95 Output Voltage ...
Page 22 ut pu t V ol ta ge (V ut pu t V ol ta ge (V ut pu t V ol ta ge (V R1191x050x ECO=H VIN=8.0V Output Current 4.95 Output Voltage ut pu t C ur re nt IO (m ut pu t C ur re nt IO (m ut pu t C ur re nt IO (...
Page 23 ut pu t V ol ta ge (V ut pu t V ol ta ge (V ut pu t V ol ta ge (V R1191x150x ECO=H VIN=16.0V Output Current 14.95 Output Voltage ut pu t C ur re nt IO (m ut pu t C ur re nt IO (m ut pu t C ur re nt IO...
Page 24 In pu t V ol ta ge (V In pu t V ol ta ge (V In pu t V ol ta ge (V ut pu t V ol ta ge (V ut pu t V ol ta ge (V ut pu t V ol ta ge (V 14) Inrush Current at Turn on(C1=2.2μF, C2=4.7μF, tr=0.1μs, Topt=25°...
Page 25 In pu t V ol ta ge (V In pu t V ol ta ge (V In pu t V ol ta ge (V ut pu t V ol ta ge (V ut pu t V ol ta ge (V R1191x ut pu t V ol ta ge (V R1191x020x ECO=H R1191x020x ECO=L IOUT=300m A IOUT=300m A CE ...
Page 26 In pu t V ol ta ge (V In pu t V ol ta ge (V In pu t V ol ta ge (V ut pu t V ol ta ge (V ut pu t V ol ta ge (V ut pu t V ol ta ge (V R1191x050x ECO=H R1191x050x ECO=L IOUT=150m A IOUT=150m A CE Input V...
Page 27 In pu t V ol ta ge (V In pu t V ol ta ge (V In pu t V ol ta ge (V ut pu t V ol ta ge (V ut pu t V ol ta ge (V R1191x ut pu t V ol ta ge (V R1191x150x ECO=H R1191x150x ECO=L IOUT=30m A IOUT=30m A CE In...
Page 28 ut pu t V ol ta ge (V ut pu t V ol ta ge (V 15) Turn Off Speed with CE pin (D Version) (C1=2.2μF, C2=4.7μF, tf=0.1μs, Topt=25°C) VIN=5.0V VIN=8.0V CE Input Voltage CE Input Voltage IOUT=0m A IOUT=0m A...
Page 29 ut pu t V ol ta ge UT (V ut pu t V ol ta ge (V 16) Output Voltage at Mode alternative point (C1=2.2μF, C2=4.7μF, tr=tf=0.1μs, Topt=25°C) R1191x020x R1191x050x VIN=5.0V VIN=8.0V ECO Input Voltage ECO I...
Page 30 ut pu t V ol ta ge (V ut pu t V ol ta ge (V VIN=16.0V ECO Input Voltage 15.1 15.0 14.9 IOUT=1m A 14.8 14.7 15.1 EC In pu t V ol ta ge EC (V In pu t V ol ta ge (V 15.0 14.9 IOUT=10m A 14.8 14.7 15.1 15...
Page 31 ut pu t V ol ta ge (V 17) Thermal Shutdown Circuit (C1=2.2μF, C2=4.7μF, VIN=16V, RLOAD=1kΩ) R1191x050x ECO=H R1191x050x ECO=L ut pu t V ol ta ge (V Temperature Topt (°C) Temperature Topt (°C)
Page 32 ESR vs. Output Current When using these ICs, consider the following points: The relations between IOUT (Output Current) and ESR of an output capacitor are shown below. The conditions when the white no...
Page 33 1. The products and the product specifications described in this document are subject to change or discontinuation of production without notice for reasons such as improvement. Therefore, before decid...
