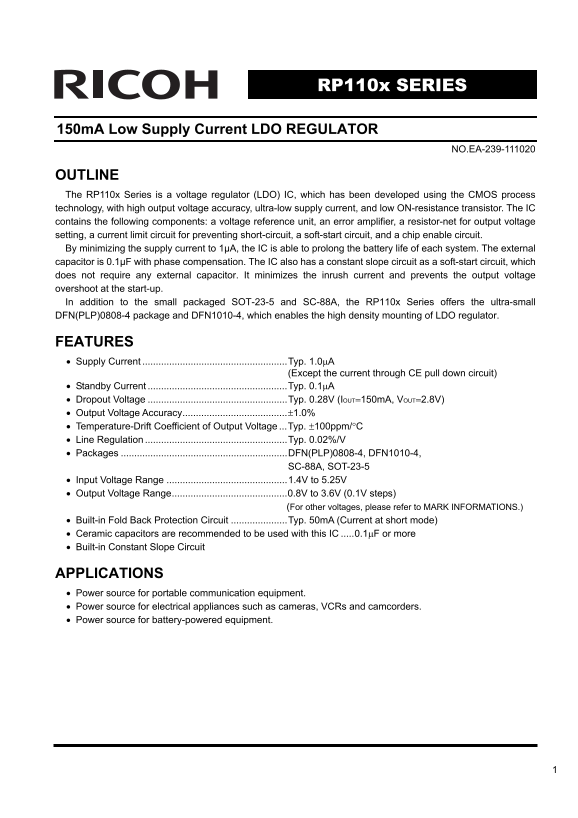

RP110x SERIES

150m A Low Supply Current LDO REGULATOR

NO.EA-239-111020

OUTLINE The RP110x Series is a voltage regulator (LDO) IC, which has been developed using the CMOS process technology, with high output voltage accuracy, ultra-low supply current, and low ON-resistance transistor. The IC contains the following components: a voltage reference unit, an error amplifier, a resistor-net for output voltage setting, a current limit circuit for preventing short-circuit, a soft-start circuit, and a chip enable circuit. By minimizing the supply current to 1µA, the IC is able to prolong the battery life of each system. The external capacitor is 0.1µF with phase compensation. The IC also has a constant slope circuit as a soft-start circuit, which does not require any external capacitor. It minimizes the inrush current and prevents the output voltage overshoot at the start-up. In addition to the small packaged SOT-23-5 and SC-88A, the RP110x Series offers the ultra-small DFN(PLP)0808-4 package and DFN1010-4, which enables the high density mounting of LDO regulator.

FEATURES • Supply Current ......................................................Typ. 1.0μA

(Except the current through CE pull down circuit)

• Standby Current ....................................................Typ. 0.1μA • Dropout Voltage ....................................................Typ. 0.28V (IOUT=150m A, VOUT=2.8V) • Output Voltage Accuracy.......................................±1.0% • Temperature-Drift Coefficient of Output Voltage ...Typ. ±100ppm/°C • Line Regulation .....................................................Typ. 0.02%/V • Packages ..............................................................DFN(PLP)0808-4, DFN1010-4, SC-88A, SOT-23-5 • Input Voltage Range .............................................1.4V to 5.25V • Output Voltage Range...........................................0.8V to 3.6V (0.1V steps) (For other voltages, please refer to MARK INFORMATIONS.) • Built-in Fold Back Protection Circuit .....................Typ. 50m A (Current at short mode) • Ceramic capacitors are recommended to be used with this IC .....0.1μF or more • Built-in Constant Slope Circuit

APPLICATIONS • Power source for portable communication equipment. • Power source for electrical appliances such as cameras, VCRs and camcorders. • Power source for battery-powered equipment.

Page Summary Contents For RICOH RP110x SERIES Owner's Manual User Guide

Page 1 RP110x SERIES 150m A Low Supply Current LDO REGULATOR NO.EA-239-111020 OUTLINE The RP110x Series is a voltage regulator (LDO) IC, which has been developed using the CMOS process technology, with high ...
Page 2 RP110x BLOCK DIAGRAMS RP110xxxx B RP110xxxx C VDD VOUT VDD VOUT Current Limit Current Limit CE GND NC GND RP110xxxx D VDD VOUT Current Limit CE GND
Page 3 RP110x SELECTION GUIDE The output voltage, chip enable circuit, auto discharge function, package for the ICs can be selected at the user’s request. Product Name Package Quantity per Reel Pb Free Halog...
Page 4 RP110x PIN CONFIGURATIONS • DFN(PLP)0808-4 • DFN1010-4 Top View Bottom View Top View Bottom View 3 4 4 3 • SC-88A • SOT-23-5 (mark side) (mark side) PIN DESCRIPTIONS • DFN(PLP)0808-4 Pin No Symbol Pin...
Page 5 RP110x • SC-88A Pin No. Symbol Description 1 CE / NC Chip Enable Pin ("H" Active) / No connection 2 NC No connection 3 GND Ground Pin 4 VOUT Output Pin 5 VDD Input Pin • SOT-23-5 Pin No Symb...
Page 6 RP110x ELECTRICAL CHARACTERISTICS • RP110x Unless otherwise noted,VIN=Set VOUT +1.0V(VOUT >1.5), VIN=2.5V(VOUT ≤ 1.5V), IOUT=1m A, CIN=COUT=0.1μF. The load regulation differs depending on the packa...
Page 7 RP110x Dropout Voltage Dropout Voltage VDIF (V) Output Voltage VOUT (V) Condition Typ. Max. 0.8 ≤ VOUT < 0.9 0.96 1.40 0.9 ≤ VOUT < 1.0 0.87 1.25 1.0 ≤ VOUT < 1.2 0.78 1.15 1.2 ≤ VOUT < 1....
Page 8 RP110x TYPICAL APPLICATION VDD VOUT VOUT C1 RP110 C2 Series CE GND (External Components) C2 0.1μF MURATA: GRM155B31C104KA87B TECHNICAL NOTES When using these ICs, consider the following points: Phase ...
Page 9 RP110x ■ Constant Slope Circuits The RP110x Series is equipped with a constant slope circuit as a soft-start circuit, which allows the output voltage to start up gradually when the CE is turned on. Th...
Page 10 RP110x TEST CIRCUITS VDD VOUT C1 RP110x VC2 VOUT IOUT Series CE GND C1=Ceramic 0.1μF C2=Ceramic 0.1μF Basic Test Circuit VDD VOUT VOUT C1 RP110x C2A ISS Series CE GND C1=Ceramic 0.1μF C2=Ceramic 0.1μF...
Page 11 ut pu t V ol ta ge (V ut pu t V ol ta ge (V ut pu t V ol ta ge (V RP110x TYPICAL CHARACTERISTICS 1) Output Voltage vs. Output Current (C1=Ceramic 0.1μF, C2=Ceramic 0.1μF, Topt=25°C) RP110x08xx RP110x2...
Page 12 up pl ur re nt IS (μ up pl ur re nt IS (μ ut pu t V ol ta ge (V RP110x RP110x36xx 4.0 3.5 3.0 2.5 2.0 1.5 1.0 IOUT=1m A IOUT=30m A IOUT=50m A Input Voltage VIN (V) up pl ur re nt IS (μ 3) Supply Curre...
Page 13 up pl ur re nt IS (μ ut pu t V ol ta ge (V ut pu t V ol ta ge (V RP110x 4) Output Voltage vs. Temperature (C1=Ceramic 0.1μF, C2=Ceramic 0.1μF, IOUT=1m A) RP110x08xx RP110x25xx VIN=1.8V VIN=3.5V Temper...
Page 14 ro po ut ol ta ge IF (m ro po ut ol ta ge IF (m up pl ur re nt IS (μ RP110x RP110x36xx VIN=4.6V Temperature Topt (°C) ro po ut ol ta ge IF (m 6) Dropout Voltage vs. Output Current (C1=Ceramic 0.1μF, C...
Page 15 ip pl ej ec tio (d ip pl ej ec tio (d ro po ut ol ta ge IF (m RP110x 7) Dropout Voltage vs Set Output Voltage (C1=Ceramic 0.1μF, C2=Ceramic 0.1μF, Topt=25°C) IOUT=1m A IOUT=30m A IOUT=50m A IOUT=150m ...
Page 16 ip pl ej ec tio (d ip pl ej ec tio (d ip pl ej ec tio (d RP110x RP110x25xx RP110x36xx IOUT=30m A IOUT=30m A 100Hz 100Hz 1k Hz 1k Hz 10k Hz 10k Hz 100k Hz 100k Hz Input Voltage VIN (V) Input Voltage VI...
Page 17 ut pu t V ol ta ge (V ut pu t V ol ta ge (V ut pu t V ol ta ge (V RP110x 10) Input Transient Response (C1=none, C2=0.1μF, IOUT=30m A, tr=tf=5μs, Topt=25°C) RP110x08xx RP110x25xx Input Voltage Input Vo...
Page 18 ut pu t V ol ta ge (V ut pu t V ol ta ge (V ut pu t V ol ta ge (V RP110x RP110x36xx RP110x08xx VIN=4.6V, C2=0.1μF VIN=1.8V, C2=0.1μF Output Current Output Current 3.3 Output Voltage 0.6 Output Voltage...
Page 19 ut pu t V ol ta ge (V ut pu t V ol ta ge (V ut pu t V ol ta ge (V RP110x RP110x36xx RP110x08xx VIN=4.6V, C2=1.0μF VIN=1.8V, C2=1.0μF Output Current Output Current 50m A 100m A 1m A 10m A 3.3 Output Vo...
Page 20 ut pu t V ol ta ge (V ut pu t V ol ta ge (V ut pu t V ol ta ge (V RP110x RP110x25x C RP110x25x B/D VIN=3.5V Input Voltage CE Input Voltage IOUT=0m A IOUT=0m A IOUT=30m A IOUT=30m A 3.0 IOUT=150m A 3.0...
Page 21 ut pu t V ol ta ge (V ut pu t V ol ta ge (V ut pu t V ol ta ge (V RP110x RP110x08x D RP110x25x B VIN=1.8V VIN=3.5V CE Input Voltage CE Input Voltage 1.0 0.5 IOUT=30m A 0.8 IOUT=0m A IOUT=150m A IOUT=3...
Page 22 ut pu t V ol ta ge (V In pu t V ol ta ge IN ut pu t V ol ta ge (V RP110x RP110x36x D VIN=4.6V CE Input Voltage IOUT=0m A IOUT=30m A IOUT=150m A Output Voltage In pu t V ol ta ge (V In ru sh ur re nt I...
Page 23 In pu t V ol ta ge IN ut pu t V ol ta ge (V In pu t V ol ta ge IN ut pu t V ol ta ge (V RP110x RP110x25x C RP110x25x B/D VIN=3.5V Input Voltage (tr=0.5μs) CE Input Voltage Output Voltage 1.5 1.5 Outpu...
Page 24 RP110x ESR vs. Output Current When using these ICs, consider the following points: The relations between IOUT (Output Current) and ESR of an output capacitor are shown below. The conditions when the w...
Page 25 1. The products and the product specifications described in this document are subject to change or discontinuation of production without notice for reasons such as improvement. Therefore, before decid...
