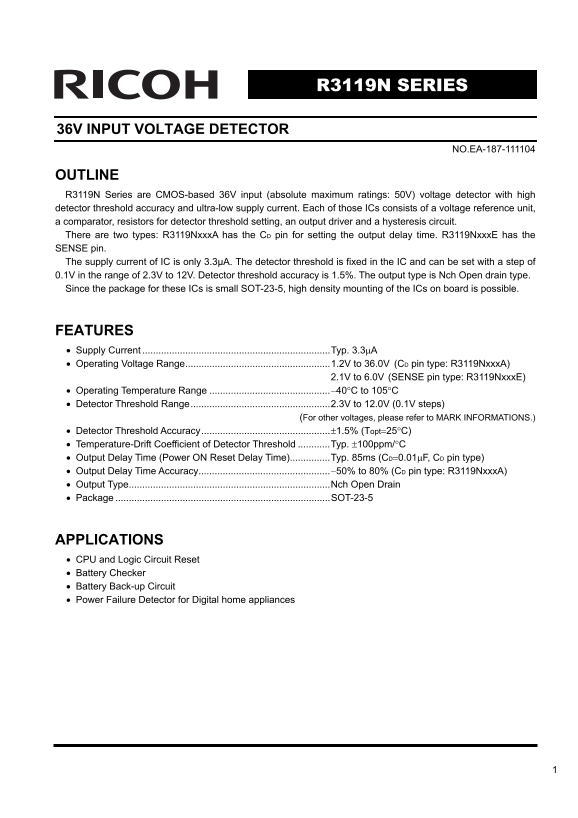

R3119N SERIES

36V INPUT VOLTAGE DETECTOR

NO.EA-187-111104

OUTLINE R3119N Series are CMOS-based 36V input (absolute maximum ratings: 50V) voltage detector with high detector threshold accuracy and ultra-low supply current. Each of those ICs consists of a voltage reference unit, a comparator, resistors for detector threshold setting, an output driver and a hysteresis circuit. There are two types: R3119Nxxx A has the CD pin for setting the output delay time. R3119Nxxx E has the SENSE pin. The supply current of IC is only 3.3μA. The detector threshold is fixed in the IC and can be set with a step of 0.1V in the range of 2.3V to 12V. Detector threshold accuracy is 1.5%. The output type is Nch Open drain type. Since the package for these ICs is small SOT-23-5, high density mounting of the ICs on board is possible.

FEATURES • Supply Current ......................................................................Typ. 3.3μA • Operating Voltage Range......................................................1.2V to 36.0V (CD pin type: R3119Nxxx A) 2.1V to 6.0V (SENSE pin type: R3119Nxxx E) • Operating Temperature Range .............................................−40°C to 105°C • Detector Threshold Range....................................................2.3V to 12.0V (0.1V steps) (For other voltages, please refer to MARK INFORMATIONS.) • Detector Threshold Accuracy................................................±1.5% (Topt=25°C) • Temperature-Drift Coefficient of Detector Threshold ............Typ. ±100ppm/°C • Output Delay Time (Power ON Reset Delay Time)...............Typ. 85ms (CD=0.01μF, CD pin type) • Output Delay Time Accuracy.................................................−50% to 80% (CD pin type: R3119Nxxx A) • Output Type...........................................................................Nch Open Drain • Package ................................................................................SOT-23-5

APPLICATIONS • CPU and Logic Circuit Reset • Battery Checker • Battery Back-up Circuit • Power Failure Detector for Digital home appliances

Page Summary Contents For RICOH R3119N SERIES Owner's Manual User Guide

Page 1 R3119N SERIES 36V INPUT VOLTAGE DETECTOR NO.EA-187-111104 OUTLINE R3119N Series are CMOS-based 36V input (absolute maximum ratings: 50V) voltage detector with high detector threshold accuracy and ultr...
Page 2 BLOCK DIAGRAMS R3119Nxxx A R3119Nxxx E SENSE DOUTVDD DOUTVDD Delay Circuit Vref Vref GND GND SELECTION GUIDE The package type, the detector threshold and the version for the ICs can be selected at the...
Page 3 PIN CONFIGURATIONS • SOT-23-5 (mark side) PIN DESCRIPTIONS • SOT-23-5 Pin No. Symbol Description 1 VDD Input Pin 2 GND∗ Ground Pin 3 GND∗ Ground Pin 4 DOUT Output Pin ("L" at detection) CD R...
Page 4 ABSOLUTE MAXIMUM RATINGS Symbol Item Rating Unit R3119Nxxx A −0.3 to 50.0 VDD Supply Voltage R3119Nxxx E −0.3 to 7.0 VOUT Output Voltage (DOUT Pin) −0.3 to 7.0 V VCD Output Voltage (CD Pin) R3119Nxxx ...
Page 5 ELECTRICAL CHARACTERISTICS • R3119Nxxx A (CD pin type) The specification in is checked and guaranteed by design engineering at −40°C ≤ Topt ≤ 105°C. Topt=25°C Symbol Item Conditions Min. Typ. Max. Uni...
Page 6 • R3119Nxxx E (SENSE pin type) The specification in is checked and guaranteed by design engineering at −40°C ≤ Topt ≤ 105°C. Topt=25°C Symbol Item Conditions Min. Typ. Max. Unit VDD Operating Voltage ...
Page 7 TIMING CHART Supply Released Voltage (+VDET) Voltage Detector Threshold (-VDET) (VDD) CD Pin Threshold Voltage CD Pin (VTCD) Voltage Output Voltage (VOUT) GND Detect Delay Time (treset)Output Delay Ti...
Page 8 OPERATION • Operation of R3119Nxxx A (CD pin type) Comparator Delay DOUT pin should be pulled-up to DOUT Circuit an external voltage level. Rb Vref Nch Block Diagram of External Capacitor Connection S...
Page 9 • Operation of R3119Nxxx E (SENSE pin type) SENSE Comparator DOUT pin should be pulled-up to DOUT an external voltage level. Rb Vref Nch Block Diagram Supply Voltage (VDD) Minimum Operating VDDL Volta...
Page 10 Power supply injection order The R3119Nxxx E Series supervise the voltage of the SENSE pin. VDD pin and SENSE pin can be used at the same voltage level. Likewise, VDD pin and SENSE pin can be used at ...
Page 11 ls id th µs R3119N Detector Operation vs. glitch input voltage to the VDD pin or SENSE pin When the R3119N is at released, if the pulse voltage which the detector threshold or lower voltage, the graph...
Page 12 TYPICAL APPLICATION • R3119Nxxx A (CD pin type) (1) Input Voltage to R3119Nxxx A is equal to Input Voltage to CPU VDD VDD CPU R3119Nxxx A Series DOUT RESET CD (2) Input Voltage to R3119Nxxx A is unequ...
Page 13 (2) Input Voltage to R3119Nxxx E is unequal to Input Voltage to CPU VDD2VDD1VSENSE R3119Nxxx E Series DOUT RESET SENSE TEST CIRCUITS • R3119Nxxx A (CD pin type) ISS VDD VDD DOUT DOUT VOUT R3119Nxxx A ...
Page 14 • R3119Nxxx E (SENSE pin type) VDD 100kΩ R3119Nxxx E VOUT6V R3119Nxxx E Series DOUT 6V SENSE Series DOUT SENSE Supply Current Test Circuit Detector Threshold Test Circuit -VDET VDD IOUT +2.0V R3119Nxx...
Page 15 te to re ld ly rr IS µA ly rr IS µA TYPICAL CHARACTERISTICS 1) Supply Current vs. Input Voltage R3119N023A R3119N077A Topt=105°C Topt=105°C Topt=25°C Topt=25°C Topt=- 40°C Topt=- 40°C te to re ld ly r...
Page 16 te to re ld tp lt tp lt R3119N120A/E 12.90 12.80 12.70 +VDET 12.60 12.50 12.40 12.30 12.20 12.10 -VDET 12.00 11.90 Temperature Topt (°C) tp lt 3) Output Voltage vs. Input Voltage Topt=- 40°C Topt=- 40...
Page 17 ri tp rr IO ri tp rr IO ri tp rr IO 4) Nch Driver Output Current vs. Input Voltage Topt=- 40°C Topt=25°C Topt=105°C Topt=- 40°C Topt=25°C Topt=105°C Input Voltage VDD (V) Input Voltage VDD (V) ri tp r...
Page 18 la im la /t re (m la im la /t re (m ri tp rr IO VDD=8.0~11.0V VDD=5.0V VDD=3.5V VDD=3.0V VDD=2.5V VDD=2.0V VDD=1.5V VDS (V) la im la /t re (m 6) Output Delay Time vs. External Capacitance (Topt=25°C) ...
Page 19 ly rr IS µA tp la im la tp la im la 7) Output Delay Time vs. Temperature (CD=0.01μF) Temperature Topt (°C) Temperature Topt (°C) ly rr IS µA tp la im la Temperature Topt (°C) 8) Supply Current vs. Inp...
Page 20 tc to re ld te re is tc to re ld tc to re ld 9) Detector Threshold vs. Input Voltage Topt=105°C Topt=105°C 2.34 Topt=25°C Topt=25°C Topt=- 40°C 7.80 Topt=- 40°C Input Voltage VDD (V) Input Voltage VDD...
Page 21 tp lt tp lt tc to re ld te re is 0.74 Topt=- 40°C Topt=25°C Topt=105°C Input Voltage VDD (V) tp lt 11) Output Voltage vs. SENSE pin Input Voltage (Topt=25°C) (DOUT pull up to VDD with 100kΩ) VDD=6.0V ...
Page 22 ri tp rr IO ri tp rr IO 12) Nch Driver Output Current vs. Input Voltage R3119Nxxx E VDS=0.5V Topt=- 40°C Topt=25°C Topt=105°C Input Voltage VIN (V) 13) Nch Driver Output Current vs. VDS R3119Nxxx E To...
Page 23 TECHNICAL NOTES When R3119Nxxx A/E is used in Fig.A, Fig.B, if the value of R1 is set excessively large, the dropdown voltage caused by the consumption current of IC itself, may vary the detector thre...
Page 24 1. The products and the product specifications described in this document are subject to change or discontinuation of production without notice for reasons such as improvement. Therefore, before decid...
