R1118x SERIES

AUTOMATIC MODE SHIFT / 150m A LOW VOLTAGE REGULATOR

NO.EA-175-120404

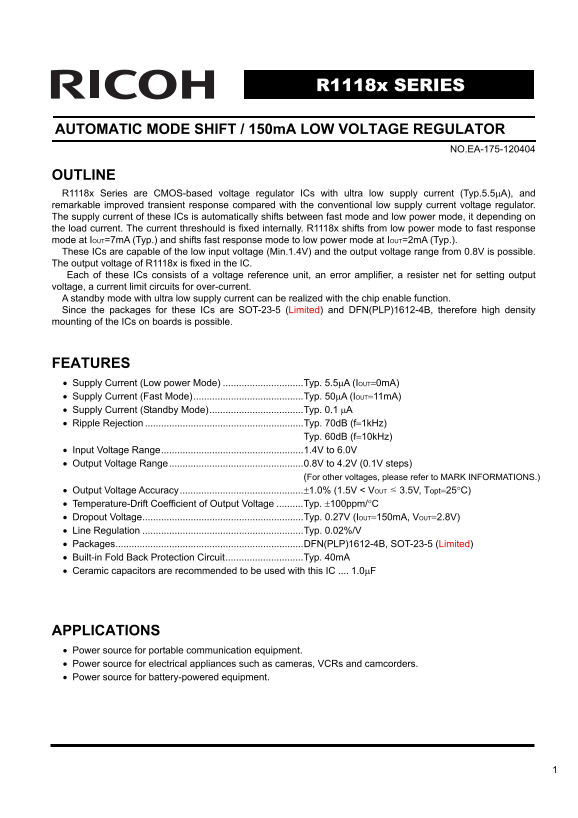

OUTLINE R1118x Series are CMOS-based voltage regulator ICs with ultra low supply current (Typ.5.5μA), and remarkable improved transient response compared with the conventional low supply current voltage regulator. The supply current of these ICs is automatically shifts between fast mode and low power mode, it depending on the load current. The current threshould is fixed internally. R1118x shifts from low power mode to fast response mode at IOUT=7m A (Typ.) and shifts fast response mode to low power mode at IOUT=2m A (Typ.). These ICs are capable of the low input voltage (Min.1.4V) and the output voltage range from 0.8V is possible. The output voltage of R1118x is fixed in the IC. Each of these ICs consists of a voltage reference unit, an error amplifier, a resister net for setting output voltage, a current limit circuits for over-current. A standby mode with ultra low supply current can be realized with the chip enable function. Since the packages for these ICs are SOT-23-5 (Limited) and DFN(PLP)1612-4B, therefore high density mounting of the ICs on boards is possible.

FEATURES • Supply Current (Low power Mode) ..............................Typ. 5.5μA (IOUT=0m A) • Supply Current (Fast Mode).........................................Typ. 50μA (IOUT=11m A) • Supply Current (Standby Mode)...................................Typ. 0.1 μA • Ripple Rejection ...........................................................Typ. 70d B (f=1k Hz)

Typ. 60d B (f=10k Hz)

• Input Voltage Range.....................................................1.4V to 6.0V • Output Voltage Range..................................................0.8V to 4.2V (0.1V steps) (For other voltages, please refer to MARK INFORMATIONS.) • Output Voltage Accuracy..............................................±1.0% (1.5V < VOUT 3.5V, Topt=25°C) • Temperature-Drift Coefficient of Output Voltage ..........Typ. ±100ppm/°C • Dropout Voltage............................................................Typ. 0.27V (IOUT=150m A, VOUT=2.8V) • Line Regulation ............................................................Typ. 0.02%/V • Packages......................................................................DFN(PLP)1612-4B, SOT-23-5 (Limited) • Built-in Fold Back Protection Circuit.............................Typ. 40m A • Ceramic capacitors are recommended to be used with this IC 1.0μF

APPLICATIONS • Power source for portable communication equipment. • Power source for electrical appliances such as cameras, VCRs and camcorders. • Power source for battery-powered equipment.

Page Summary Contents For RICOH R1118x SERIES Owner's Manual User Guide

Page 1 R1118x SERIES AUTOMATIC MODE SHIFT / 150m A LOW VOLTAGE REGULATOR NO.EA-175-120404 OUTLINE R1118x Series are CMOS-based voltage regulator ICs with ultra low supply current (Typ.5.5μA), and remarkable ...
Page 2 BLOCK DIAGRAMS R1118xxx1B R1118xxx1D VDD VOUT VDD VOUT Vref Vref Current Limit Current Limit CE GND CE GND SELECTION GUIDE The output voltage, auto discharge function, package, and the taping type, et...
Page 3 PIN CONFIGURATIONS • DFN(PLP)1612-4B • SOT-23-5 Top View Bottom View 4 5 (mark side) PIN DESCRIPTIONS • DFN(PLP)1612-4B Pin No Symbol Pin Description 1 VOUT Output Pin 2 GND Ground Pin 3 CE Chip Enabl...
Page 4 ABSOLUTE MAXIMUM RATINGS Symbol Item Rating Unit VIN Input Voltage 6.5 V VCE Input Voltage (CE Pin) −0.3 to 6.5 V VOUT Output Voltage −0.3 to VIN+0.3 V IOUT Output Current (DC) 180 m A Power Dissipati...
Page 5 ELECTRICAL CHARACTERISTICS • R1118xxx1B/D VIN=Set VOUT+1V, IOUT=1m A, unless otherwise noted. The specification in is checked and guaranteed by design engineering at −40°C Topt 85°C, unless otherwise ...
Page 6 • Dropout Voltage by Output Voltage Topt=25°C Dropout Voltage VDIF (V) Output Voltage VOUT (V) Condition Typ. Max. 0.8 VOUT &lt; 0.9 0.82 1.06 0.9 VOUT &lt; 1.0 0.74 0.98 1.0 VOUT &lt; 1.2 0.66 0.90 1...
Page 7 TEST CIRCUITS VDD VOUT C1 R1118x VC2 VOUT IOUT Series CE GND C1=Ceramic 1.0μF C2=Ceramic 1.0μF Basic Test Circuit VDD VOUT VOUT C1 R1118x C2A ISS Series CE GND C1=Ceramic 1.0μF C2=Ceramic 1.0μF Test C...
Page 8 VDD VOUT VOUT Series CE GND IOUTa IOUTb C1=Ceramic 1.0μF C2=Ceramic 1.0μF Test Circuit for Load Transient Response
Page 9 tp lt tp lt tp lt TYPICAL CHARACTERISTICS 1) Output Voltage vs. Output Current (Topt=25°C) R1118x081x R1118x151x 0.9 1.6 0.8 1.4 0.7 VIN=1.4V 0.8 VIN=1.6V 0.3 VIN=1.8V VIN=2.0V VIN=2.3V 0.4 VIN=2.5V V...
Page 10 ly rr IS μA ly rr IS μA tp lt IOUT=1m A IOUT=1m A IOUT=10m A IOUT=10m A IOUT=100m A 1.0 IOUT=100m A IOUT=150m A IOUT=150m A Input Voltage VIN (V) Input Voltage VIN (V) ly rr IS μA ly rr IS μA tp lt 3)...
Page 11 tp lt tp lt ly rr IS μA 4) Supply Current vs. Output Current (Topt=25°C) Low Power Mode to Fast Mode Fast Mode to Low Power Mode Output Current IOUT (m A) tp lt tp lt 5) Output Voltage vs. Temperature...
Page 12 ro lt IF ly rr IS μA ly rr IS μA 6) Supply Current vs. Temperature Temperature Topt (°C) Temperature Topt (°C) ro lt IF ly rr IS μA ly rr IS μA Temperature Topt (°C) Temperature Topt (°C) 7) Dropout V...
Page 13 ro lt IF ro lt IF ro lt IF Output Current IOUT (m A) Output Current IOUT (m A) ro lt IF ro lt IF ro lt IF Output Current IOUT (m A) Output Current IOUT (m A) Output Current IOUT (m A) Output Current I...
Page 14 ip le je ti In lt IN ro lt IF 8) Dropout Voltage vs. Set Output Voltage (Topt=25°C) 0.5 2.5 3.0 3.51.5 4.02.01.0 4.5 Set Output Voltage VREG (V) ip le je ti 9) Minimum Operating Voltage Output Current...
Page 15 ip le je ti ip le je ti ip le je ti IOUT=50m A f=100Hz f=1k Hz f=10k Hz f=100k Hz Input Voltage VIN (V) ip le je ti ip le je ti 11) Ripple Rejection vs. Frequency (C1=none, Topt=25°C) VIN=2.3VDC+0.2Vp...
Page 16 tp lt ip le je ti ip le je ti VIN=3.8VDC+0.2Vp-p,C2=1.0μF VIN=3.8VDC+0.2Vp-p,C2=2.2μF IOUT=5m A IOUT=5m A IOUT=15m A IOUT=15m A IOUT=50m A IOUT=50m A 0.1 In lt IN 0.1 Frequency f (k Hz) Frequency f (k...
Page 17 tp lt tp lt tp lt Input Voltage Input Voltage Output Voltage Output Voltage Time t (μs) Time t (μs) tp rr IO tp rr IO In lt IN tp lt tp lt tp lt 13) Load Transient Response (tr=tf=500ns, C1=1.0μF, Top...
Page 18 tp lt tp lt tp lt R1118x281x R1118x281x (Fast Mode) (Low Power Mode→Fast Mode) Output Current Output Current 50m A 100m A 0m A 30m A Output Voltage Output Voltage tp rr IO tp rr IO tp rr IO Time t (μs...
Page 19 tp lt tp lt tp lt 14) Turn On Speed with CE pin (C1=Ceramic 1.0μF, C2=Ceramic 1.0μF, Topt=25°C) VIN=1.8V VIN=2.5V CE Input Voltage CE Input Voltage IOUT=0m A IOUT=0m A IOUT=1m A IOUT=1m A IOUT=15m A I...
Page 20 tp lt VIN=3.8V VIN=5.2V CE Input Voltage CE Input Voltage IOUT=0m A IOUT=0m A IOUT=1m A IOUT=1m A IOUT=15m A IOUT=15m A 1.5 IOUT=150m A IOUT=150m A Output Voltage Output Voltage 0.2 0.50.3 0.70.60.4 0...
Page 21 ESR vs. Output Current When using these ICs, consider the following points: The relations between IOUT (Output Current) and ESR of an output capacitor are shown below. The conditions when the white no...
Page 22 1. The products and the product specifications described in this document are subject to change or discontinuation of production without notice for reasons such as improvement. Therefore, before decid...
