This CMOS-based voltage regulator delivers stable power, featuring a versatile output range of 2.0V to 6.0V at up to 55mA. The comprehensive guide details technical specifications, performance curves like dropout voltage, and selection criteria for various packages (SOT-23-5, SOT-89). It is ideal for engineers developing battery-powered electronics such as communication equipment, cameras, or systems requiring a highly stable integrated power source.

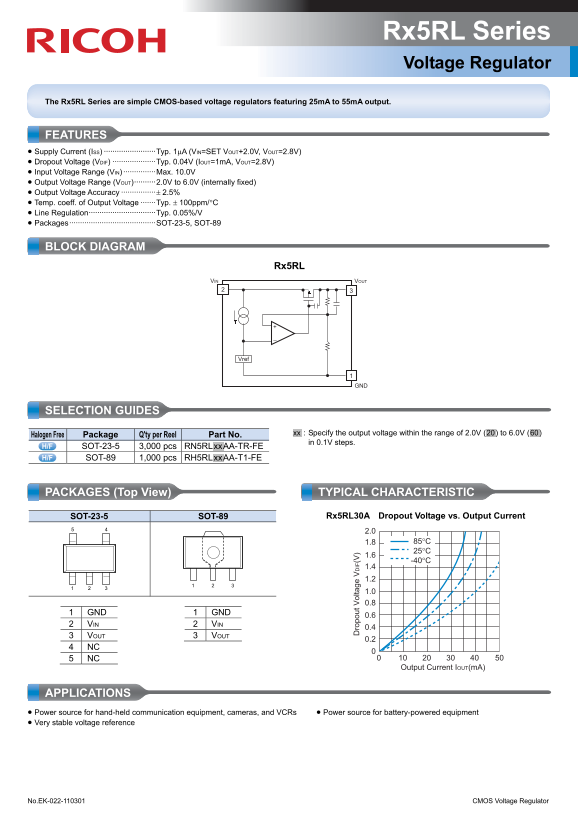

Page 1 Text Content
Rx5RL Series Voltage Regulator
The Rx5RL Series are simple CMOS-based voltage regulators featuring 25m A to 55m A output.
FEATURES • Supply Current (ISS) ························Typ. 1μA (VIN=SET VOUT+2.0V, VOUT=2.8V) • Dropout Voltage (VDIF) ····················Typ. 0.04V (IOUT=1m A, VOUT=2.8V) • Input Voltage Range (VIN) ···············Max. 10.0V • Output Voltage Range (VOUT)··········2.0V to 6.0V (internally fixed) • Output Voltage Accuracy ················± 2.5% • Temp. coeff. of Output Voltage ·······Typ. ± 100ppm/°C • Line Regulation·······························Typ. 0.05%/V • Packages········································SOT-23-5, SOT-89
BLOCK DIAGRAM
Rx5RL
VIN VOUT
ro lt Vref IF (V
SELECTION GUIDES
Part No. .xx. : Specify the output voltage within the range of 2.0V (.20.) to 6.0V (.60.)
Halogen Free Package Q'ty per Reel
in 0.1V steps.
SOT-23-5 3,000 pcs RN5RL.xx.AA-TR-FE SOT-89 1,000 pcs RH5RL.xx.AA-T1-FE
PACKAGES (Top View) TYPICAL CHARACTERISTIC
SOT-23-5 SOT-89 Rx5RL30A Dropout Voltage vs. Output Current
1 GND 1 GND
2 VIN 2 VIN
3 VOUT 3 VOUT
4 NC 5 NC
Output Current IOUT(m A)
APPLICATIONS • Power source for hand-held communication equipment, cameras, and VCRs • Power source for battery-powered equipment • Very stable voltage reference
No.EK-022-110301 CMOS Voltage Regulator
Page Summary Contents For RICOH Rx5RL Series Owner's Manual and User Guide
Manual Details
| Brand | Ricoh |
|---|---|
| Pages | 2 |
| File Size | 159.75 KB |
| Published | June 01, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the operating voltage limits for the Rx5RL Series regulator?
The input voltage range (VIN) is a maximum of 10.0V, and the output voltage ranges from 2.0V to 6.0V.
How stable is the voltage under varying loads?
It has a Line Regulation of Typ. 0.05%/V and is designed for low Dropout Voltage (VDIF) of Typ. 0.04V at 1mA output current.
What materials are used, and what about environmental compliance?
The products are Halogen Free and comply with the RoHS Directive, meaning they contain no lead after April 1, 2006.
What applications is this regulator recommended for?
It can power hand-held communication equipment, cameras, VCRs, or battery-powered devices, and serves as a stable voltage reference.
