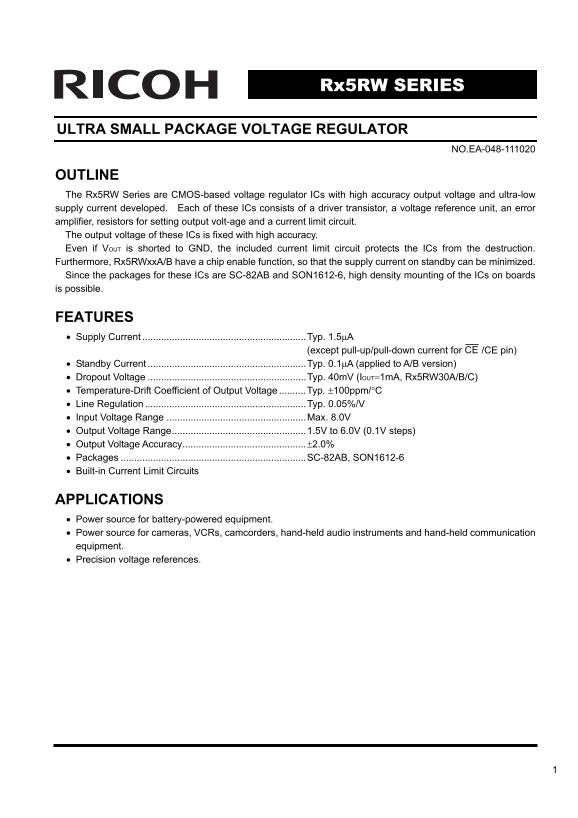

Page 1 Text Content
Rx5RW SERIES
ULTRA SMALL PACKAGE VOLTAGE REGULATOR
NO.EA-048-111020
OUTLINE The Rx5RW Series are CMOS-based voltage regulator ICs with high accuracy output voltage and ultra-low supply current developed. Each of these ICs consists of a driver transistor, a voltage reference unit, an error amplifier, resistors for setting output volt-age and a current limit circuit. The output voltage of these ICs is fixed with high accuracy. Even if VOUT is shorted to GND, the included current limit circuit protects the ICs from the destruction. Furthermore, Rx5RWxx A/B have a chip enable function, so that the supply current on standby can be minimized. Since the packages for these ICs are SC-82AB and SON1612-6, high density mounting of the ICs on boards is possible.
FEATURES • Supply Current .............................................................Typ. 1.5μA
(except pull-up/pull-down current for CE /CE pin)
• Standby Current ...........................................................Typ. 0.1μA (applied to A/B version) • Dropout Voltage ...........................................................Typ. 40m V (IOUT=1m A, Rx5RW30A/B/C) • Temperature-Drift Coefficient of Output Voltage ..........Typ. ±100ppm/°C • Line Regulation ............................................................Typ. 0.05%/V • Input Voltage Range ....................................................Max. 8.0V • Output Voltage Range..................................................1.5V to 6.0V (0.1V steps) • Output Voltage Accuracy..............................................±2.0% • Packages .....................................................................SC-82AB, SON1612-6 • Built-in Current Limit Circuits
APPLICATIONS • Power source for battery-powered equipment. • Power source for cameras, VCRs, camcorders, hand-held audio instruments and hand-held communication equipment. • Precision voltage references.
Page Summary Contents For RICOH Rx5RW SERIES User's Guide (1) Owner's Manual
Manual Details
| Brand | Ricoh |
|---|---|
| Pages | 19 |
| File Size | 341.99 KB |
| Published | May 31, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the function of the CE pin on the Rx5RW series?
The Rx5RWxxA and Rx5RWxxB versions feature a chip enable (CE) function, which allows minimizing the supply current in standby mode.
How is the output voltage accuracy specified?
The output voltage accuracy of these ICs is ±2.0%. The fixed output voltages range from 1.5V to 6.0V in 0.1V steps.
What protection features are included in this regulator?
These ICs include a built-in current limit circuit that protects the unit even if VOUT is shorted to GND.
What is the recommended maximum input voltage (VIN)?
The manual specifies an Input Voltage Range up to Max. 8.0V, although absolute ratings list a limit of 9.0V.
