RICOH RP173x SERIES User's Manual (1) Owner's Manual

Summary

The RP173x Series is a high-performance CMOS Low Dropout Voltage Regulator IC designed primarily for powering battery-sensitive electronics, including portable communication gear and digital home appliances. Featuring a 150mA output capability and ultra-low supply/standby currents (down to 0.2μA), this IC is ideal for applications requiring extended standby times and reliable backup power. The accompanying documentation details its technical specifications, operating ranges, multiple package options (SOT-23-5, SC-88A, DFN), and built-in protection circuits like Reverse Current Protection, making it a precise solution for efficient power management in both portable and non-portable devices.

📄 Preview PAGE OF 22

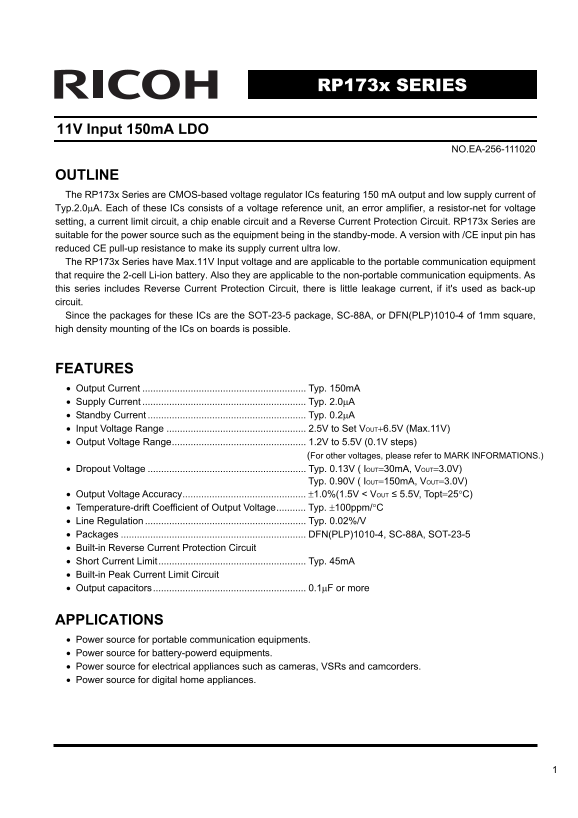

Page 1 Text Content

RP173x SERIES

11V Input 150m A LDO

NO.EA-256-111020

OUTLINE The RP173x Series are CMOS-based voltage regulator ICs featuring 150 m A output and low supply current of Typ.2.0μA. Each of these ICs consists of a voltage reference unit, an error amplifier, a resistor-net for voltage setting, a current limit circuit, a chip enable circuit and a Reverse Current Protection Circuit. RP173x Series are suitable for the power source such as the equipment being in the standby-mode. A version with /CE input pin has reduced CE pull-up resistance to make its supply current ultra low. The RP173x Series have Max.11V Input voltage and are applicable to the portable communication equipment that require the 2-cell Li-ion battery. Also they are applicable to the non-portable communication equipments. As this series includes Reverse Current Protection Circuit, there is little leakage current, if it's used as back-up circuit. Since the packages for these ICs are the SOT-23-5 package, SC-88A, or DFN(PLP)1010-4 of 1mm square, high density mounting of the ICs on boards is possible.

FEATURES • Output Current Typ. 150m A • Supply Current Typ. 2.0μA • Standby Current Typ. 0.2μA • Input Voltage Range 2.5V to Set VOUT+6.5V (Max.11V) • Output Voltage Range.................................................. 1.2V to 5.5V (0.1V steps) (For other voltages, please refer to MARK INFORMATIONS.) • Dropout Voltage Typ. 0.13V ( IOUT=30m A, VOUT=3.0V)

Typ. 0.90V ( IOUT=150m A, VOUT=3.0V)

• Output Voltage Accuracy.............................................. ±1.0%(1.5V < VOUT ≤ 5.5V, Topt=25°C) • Temperature-drift Coefficient of Output Voltage........... Typ. ±100ppm/°C • Line Regulation Typ. 0.02%/V • Packages DFN(PLP)1010-4, SC-88A, SOT-23-5 • Built-in Reverse Current Protection Circuit • Short Current Limit Typ. 45m A • Built-in Peak Current Limit Circuit • Output capacitors......................................................... 0.1μF or more

APPLICATIONS • Power source for portable communication equipments. • Power source for battery-powerd equipments. • Power source for electrical appliances such as cameras, VSRs and camcorders. • Power source for digital home appliances.

Page Summary Contents For RICOH RP173x SERIES User's Manual (1) Owner's Manual

Page 1 RP173x SERIES 11V Input 150m A LDO NO.EA-256-111020 OUTLINE The RP173x Series are CMOS-based voltage regulator ICs featuring 150 m A output and low supply current of Typ.2.0μA. Each of these ICs consi...
Page 2 RP173x BLOCK DIAGRAMS RP173xxxx A RP173xxxx B VDD VOUT VDD VOUT Vref Vref Current Limit Current Limit Reverse Reverse Detector Detector CE GND CE GND (Pull-up resistance is not built-in.) RP173xxxx D ...
Page 3 RP173x PIN CONFIGURATIONS • DFN(PLP)1010-4 • SC-88A • SOT-23-5 Top View Bottom View (mark side) (mark side) PIN DESCRIPTIONS DFN(PLP)1010-4 Pin No. Symbol Description 1 VOUT Output Pin 2 GND Ground Pi...
Page 4 RP173x ABSOLUTE MAXIMUM RATINGS Symbol Item Rating Unit VIN Input Voltage 12 V VCE Input Voltage (CE pin) 12 V VOUT Output Voltage −0.3 to 6.0 V IOUT Output Current 165 m A Power Dissipation (DFN(PLP)...
Page 5 RP173x ELECTRICAL CHARACTERISTICS Unless otherwise noted,VIN=Set VOUT +1.0V(VOUT &gt;1.5), IOUT=1m A,CIN=COUT=0.1μF. The values in are applicable under the condition of −40°C ≤ Topt ≤ 85°C. • RP173xxx...
Page 6 RP173x Unless otherwise noted,VIN=Set VOUT +1.0V(VOUT &gt;1.5), IOUT=1m A, CIN=COUT=0.1μF. The values in are applicable under the condition of −40°C ≤ Topt ≤ 85°C. • RP173xxxx B/D Topt=25°C Symbol Ite...
Page 7 RP173x • Dropout Voltage Topt=25°C Dropout Voltage VDIF (V) Output Voltage VOUT (V) Condition Typ. Max. 1.2 ≤ VOUT &lt; 1.3 1.68 2.59 1.3 ≤ VOUT &lt; 1.5 1.63 2.49 1.5 ≤ VOUT &lt; 1.8 1.48 2.23 1.8 ≤ ...
Page 8 RP173x TYPICAL APPLICATIONS VDD VOUT VOUT C1 RP173x C2 Series CE GND External Parts Example: C2: Ceramic Capacitor 0.1µF, Murata,GRM155B31C104KA87D TECHNICAL NOTES When using the ICs, please note the ...
Page 9 RP173x REVERSE CURRENT PROTECTION CIRCUIT The RP173 Series include a Reverse Current Protection Circuit, which stops the reverse current from VOUT pin to VDD pin or to GND pin when VOUT becomes higher...
Page 10 RP173x TEST CIRCUITS VDD VOUT C1 RP173x VC2 VOUT IOUT Series CE GND C1=Ceramic 0.1μF C2=Ceramic 0.1μF Basic Test Circuit VDD VOUT VOUT C1 RP173x C2A ISS Series CE GND C1=Ceramic 0.1μF C2=Ceramic 0.1μF...
Page 11 RP173x ut pu t V ol ta ge (V ut pu t V ol ta ge (V ut pu t V ol ta ge (V TYPICAL CHARACTERISTICS 1) Output Voltage vs. Output Current (C1=Ceramic 0.1μF, C2=Ceramic 0.1μF, Topt=25°C) RP173x12xx RP173x1...
Page 12 up pl ur re nt (µ up pl ur re nt (µ ut pu t V ol ta ge (V RP173x RP173x30xx RP173x55xx 3.5 IOUT=1m A IOUT=1m A IOUT=30m A IOUT=30m A 0.5 IOUT=50m A IOUT=50m A Input Voltage VIN (V) Input Voltage VIN (...
Page 13 ut pu t V ol ta ge (V RP173x ut pu t V ol ta ge (V ro po ut ol ta ge IF (m 4) Output Voltage vs. Temperature (C1=Ceramic 0.1μF, C2=Ceramic 0.1μF, IOUT=1m A) RP173x12xx RP173x18xx 1.24 1.84 Temperature...
Page 14 In pu t V ol ta ge IN (V ro po ut ol ta ge IF (m RP173x ro po ut ol ta ge IF (m RP173x55xx Output Current IOUT (m A) 6) Dropout Voltage vs. Set Output Voltage (C1=Ceramic 0.1μF, C2=Ceramic 0.1μF, Topt...
Page 15 RP173x ip pl ej ec tio (d ip pl ej ec tio (d ip pl ej ec tio (d 8) Ripple Rejection vs. Input Vias Voltage (C1=none, C2=Ceramic 0.1μF, Ripple=0.2Vp-p, Topt=25°C) RP173x28xx RP173x28xx IOUT=1m A IOUT=3...
Page 16 ut pu t V ol ta ge (V ut pu t V ol ta ge (V ip pl ej ec tio (d RP173x RP173x30xx RP173x55xx VIN=4.0V VIN=6.5V Iout=1m A Iout=1m A Iout=30m A Iout=30m A Iout=50m A Iout=50m A In pu t V ol ta ge IN (V )...
Page 17 ut pu t V ol ta ge (V ut pu t V ol ta ge (V ut pu t V ol ta ge (V RP173x RP173x12xx RP173x18xx IOUT=30m A IOUT=30m A Output Voltage Output Voltage Time t (ms) Time t (ms) ut pu t C ur re nt (m In pu t...
Page 18 ut pu t V ol ta ge (V ut pu t V ol ta ge (V ut pu t V ol ta ge (V RP173x RP173x30xx RP173x55xx VIN=4.0V VIN=6.5V Output Current Output Current 1m A⇔10m A 1m A⇔10m A Output Voltage Output Voltage ut pu...
Page 19 ut pu t V ol ta ge (V ut pu t V ol ta ge (V ut pu t V ol ta ge (V RP173x 12) Turn on Speed (C1=Ceramic 0.1μF, C2=Ceramic 0.1μF, Topt=25°C) RP173x12xx RP173x18xx VIN=2.5V (IOUT=0,1,30m A) VIN=2.8V (IOU...
Page 20 ut pu t V ol ta ge (V ES (Ω RP173x RP173x30xx RP173x55xx VIN=4.0V VIN=6.5V CE Input Voltage CE Input Voltage 2.5 Iout=0m A 4.5 Iout=0m A 6.0 Iout=1m A Iout=1m A 3.0 Output Voltage Output Voltage 4.0 I...
Page 21 RP173x ES (Ω RP173x551x VIN=5.5V~11V Output Current (m A)
Page 22 1. The products and the product specifications described in this document are subject to change or discontinuation of production without notice for reasons such as improvement. Therefore, before decid...

Manual Details

Brand Ricoh
Pages 22
File Size 982.24 KB
Published June 01, 2026
72 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

What is the maximum input voltage for this regulator?

The RP173x Series has a Max. 11V Input voltage range.

Is this suitable for standby-mode power sources?

Yes, it's suitable for power sources like equipment being in standby-mode due to its low supply current (Typ. 2.0μA).

What are the available packages for high-density mounting?

Packages include DFN(PLP)1010-4, SC-88A, or SOT-23-5.

Does the IC offer protection against current issues?

Yes, it includes a Built-in Reverse Current Protection Circuit and a Built-in Peak Current Limit Circuit.
