The RP100x series is a high-accuracy CMOS LDO voltage regulator designed for demanding power applications in portable or battery-powered electronic devices, such as communication gear and cameras. Featuring extremely low supply current draw, excellent transient response, and compact SOT-23/DFN packages, it ensures stable power while maintaining high density on printed circuit boards. This manual provides comprehensive technical documentation, including detailed electrical characteristics, absolute maximum ratings, pin configurations, and specifications required to integrate this highly reliable voltage regulator into professional designs.

📄 Preview PAGE OF 23

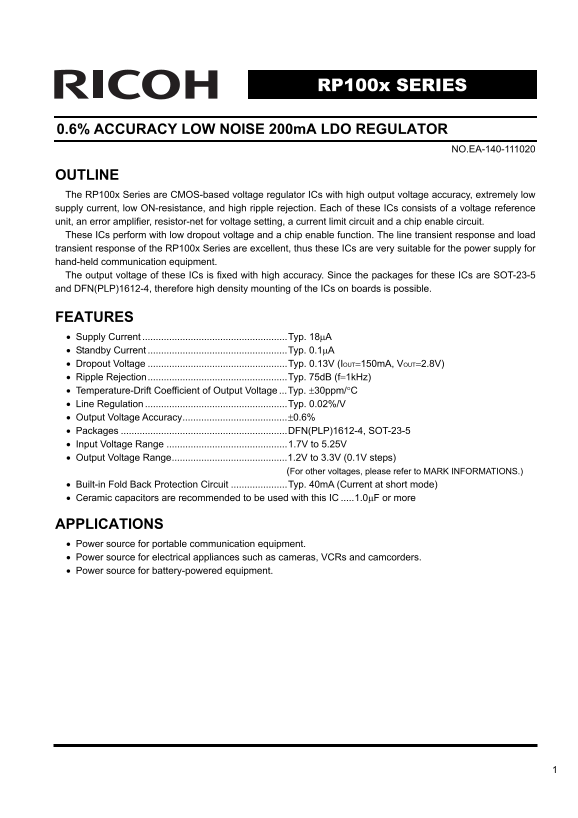

Page 1 Text Content

RP100x SERIES

0.6% ACCURACY LOW NOISE 200m A LDO REGULATOR

NO.EA-140-111020

OUTLINE The RP100x Series are CMOS-based voltage regulator ICs with high output voltage accuracy, extremely low supply current, low ON-resistance, and high ripple rejection. Each of these ICs consists of a voltage reference unit, an error amplifier, resistor-net for voltage setting, a current limit circuit and a chip enable circuit. These ICs perform with low dropout voltage and a chip enable function. The line transient response and load transient response of the RP100x Series are excellent, thus these ICs are very suitable for the power supply for hand-held communication equipment. The output voltage of these ICs is fixed with high accuracy. Since the packages for these ICs are SOT-23-5 and DFN(PLP)1612-4, therefore high density mounting of the ICs on boards is possible.

FEATURES • Supply Current ......................................................Typ. 18μA • Standby Current ....................................................Typ. 0.1μA • Dropout Voltage ....................................................Typ. 0.13V (IOUT=150m A, VOUT=2.8V) • Ripple Rejection....................................................Typ. 75d B (f=1k Hz) • Temperature-Drift Coefficient of Output Voltage ...Typ. ±30ppm/°C • Line Regulation .....................................................Typ. 0.02%/V • Output Voltage Accuracy.......................................±0.6% • Packages ..............................................................DFN(PLP)1612-4, SOT-23-5 • Input Voltage Range .............................................1.7V to 5.25V • Output Voltage Range...........................................1.2V to 3.3V (0.1V steps) (For other voltages, please refer to MARK INFORMATIONS.) • Built-in Fold Back Protection Circuit .....................Typ. 40m A (Current at short mode) • Ceramic capacitors are recommended to be used with this IC .....1.0μF or more

APPLICATIONS • Power source for portable communication equipment. • Power source for electrical appliances such as cameras, VCRs and camcorders. • Power source for battery-powered equipment.

Page Summary Contents For RICOH RP100x SERIES User Guide and Manual

Page 1 RP100x SERIES 0.6% ACCURACY LOW NOISE 200m A LDO REGULATOR NO.EA-140-111020 OUTLINE The RP100x Series are CMOS-based voltage regulator ICs with high output voltage accuracy, extremely low supply curre...
Page 2 RP100x BLOCK DIAGRAMS RP100xxx1B RP100xxx1D VDD VOUT VDD VOUT Vref Vref Current Limit Current Limit CE GND CE GND SELECTION GUIDE The output voltage, auto discharge function, package, and the taping t...
Page 3 RP100x PIN CONFIGURATIONS • DFN(PLP)1612-4 • SOT-23-5 Top View Bottom View (mark side) PIN DESCRIPTIONS • DFN(PLP)1612-4 Pin No Symbol Pin Description 1 VOUT Output Pin 2 GND Ground Pin 3 CE Chip Enab...
Page 4 RP100x ABSOLUTE MAXIMUM RATINGS Symbol Item Rating Unit VIN Input Voltage 6.0 V VCE Input Voltage (CE Pin) 6.0 V VOUT Output Voltage −0.3 to VIN+0.3 V IOUT Output Current 300 m A Power Dissipation (SO...
Page 5 RP100x ELECTRICAL CHARACTERISTICS • RP100xxx1B/D VIN=Set VOUT+1V, IOUT=1m A, CIN=COUT =1μF, unless otherwise noted. Topt=25°C Symbol Item Conditions Min. Typ. Max. Unit VOUT > 2.0V ×0.994 ×1.006 VO...
Page 6 RP100x TYPICAL APPLICATION VDD VOUT VOUT C1 RP100x C2 Series CE GND (External Components) C2 1.0μF MURATA: GRM155B31A105KE15 TECHNICAL NOTES When using these ICs, consider the following points: Phase ...
Page 7 RP100x TEST CIRCUITS VDD VOUT C1 RP100x VC2 VOUT IOUT Series CE GND C1=Ceramic 1.0μF C2=Ceramic 1.0μF Basic Test Circuit VDD VOUT VOUT ISS C1 RP100x C2A Series CE GND C1=Ceramic 1.0μF C2=Ceramic 1.0μF...
Page 8 tp lta tp lta tp lta RP100x TYPICAL CHARACTERISTICS 1) Output Voltage vs. Output Current (C1=1.0μF, C2=1.0μF, Topt=25°C) RP100x121x RP100x251x 1.4 2.7 VIN=2.2V 2.1 VIN=3.6V 1.8 VIN=3.5V VIN=4.2V 0.8 V...
Page 9 RP100x ly rr IS μA ly rr IS μA tp lta RP100x121x 1.5 IOUT=1m A IOUT=30m A IOUT=50m A Input Voltage VIN (V) 3) Supply Current vs. Input Voltage (C1=1.0μF, C2=1.0μF, Topt=25°C) RP100x121x RP100x251x ly ...
Page 10 tp lta tp lta ly rr IS μA RP100x 4) Output Voltage vs. Temperature (C1=1.0μF, C2=1.0μF, IOUT=1m A) RP100x121x RP100x251x VIN=2.2V VIN=3.5V Temperature Topt (°C) Temperature Topt (°C) tp lta ly rr IS μ...
Page 11 ro lta IF ro lta IF ly rr IS μA RP100x RP100x331x VIN=4.3V Temperature Topt (°C) 6) Dropout Voltage vs. Output Current (C1=1.0μF,C2=1.0μF) ro lta IF ro lta IF RP100x121x RP100x151x Output Current IOUT...
Page 12 ro lta IF ro lta IF ro lta IF RP100x RP100x251x RP100x281x Output Current IOUT (m A) Output Current IOUT (m A) ro lta IF RP100x331x Output Current IOUT (m A) 7) Dropout Voltage vs Set Output Voltage (...
Page 13 ip le je tio RP100x ip le je tio ip le ie tio 8) Ripple Rejection vs. Input Bias Voltage (C1=none, C2=1.0μF, Ripple=0.2Vp-p, Topt=25°C) RP100x121x RP100x121x IOUT=1m A IOUT=30m A 1k Hz 1k Hz 10k Hz 10...
Page 14 ip le ie tio ip le ie tio ip le ie tio RP100x RP100x331x VIN=4.3V IOUT=1m A IOUT=30m A IOUT=150m A Frequency f (k Hz) ip le ie tio RP100x121x RP100x251x VIN=2.2V VIN=3.5V Frequency f (k Hz) Frequency ...
Page 15 tp lta tp lta tp lta RP100x 10) Input Transient Response (IOUT=30m A, tr=tf=5μs, Topt=25°C) RP100x121x RP100x251x Input Voltage Input Voltage 4.0 1.193 Output Voltage 2.496 Output Voltage In lta IN (V...
Page 16 tp lta tp lta tp lta RP100x RP100x331x RP100x121x VIN=4.3V VIN=2.2V tr=tf=0.5μs tr=tf=0.5μs Output Current Output Current 50m A 100m A Output Voltage Output Voltage tp rr IO tp rr IO tp rr IO Time t (...
Page 17 tp lta RP100x tp lta tp lta RP100x331x VIN=4.3V tr=tf=5μs Output Current 1m A 150m A Output Voltage 3.10 lta lta tp rr IO Time t (μs) 12) Turn On Speed with CE pin (C1=1.0μF, C2=1.0μF, Topt=25°C) tp l...
Page 18 tp lta tp lta tp lta RP100x RP100x251x RP100x251x IOUT=0m A IOUT=10m A CE Input Voltage CE Input Voltage Output Voltage Output Voltage lta lta lta Time t (μs) tp lta tp lta tp lta RP100x251x RP100x251...
Page 19 tp lta tp lta RP100x tp lta 13) Turn Off Speed with CE pin (D Version) (C1=1.0μF, C2=1.0μF, Topt=25°C) RP100x121D RP100x121D IOUT=0m A IOUT=10m A CE Input Voltage CE Input Voltage Output Voltage O Out...
Page 20 tp lta tp lta tp lta RP100x RP100x251D RP100x251D IOUT=30m A IOUT=150m A CE Input Voltage CE Input Voltage Output Voltage O Output Voltage O lta lta lta Time t (μs) Time t (μs) tp lta tp lta tp lta RP...
Page 21 tp lt ro lt IF ro lt IF RP100x 14) Dropout Voltage vs Temperature (C1=1.0μF, C2=1.0μF) RP100x121x RP100x251x Temperature Topt (°C) Temperature Topt (°C) ro lt IF ro lt IF RP100x301x RP100x331x Tempera...
Page 22 RP100x ESR vs. Output Current When using these ICs, consider the following points: The relations between IOUT (Output Current) and ESR of an output capacitor are shown below. The conditions when the w...
Page 23 1. The products and the product specifications described in this document are subject to change or discontinuation of production without notice for reasons such as improvement. Therefore, before decid...

Manual Details

Brand Ricoh
Pages 23
File Size 392.97 KB
Published June 01, 2026
79 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

What capacitor is recommended for this IC regulator?

Ceramic capacitors of 1.0µF or more are recommended for optimal performance.

How accurate is the output voltage regulation?

The device offers an output voltage accuracy of ±0.6% and high line/load transient response.

What types of equipment can this power source support?

It is suitable for hand-held communication, cameras, power sources for VCRs, and general battery-powered equipment.

What is the allowed operational input voltage range?

The specified minimum to maximum input voltage range is 1.7V to 5.25V.
