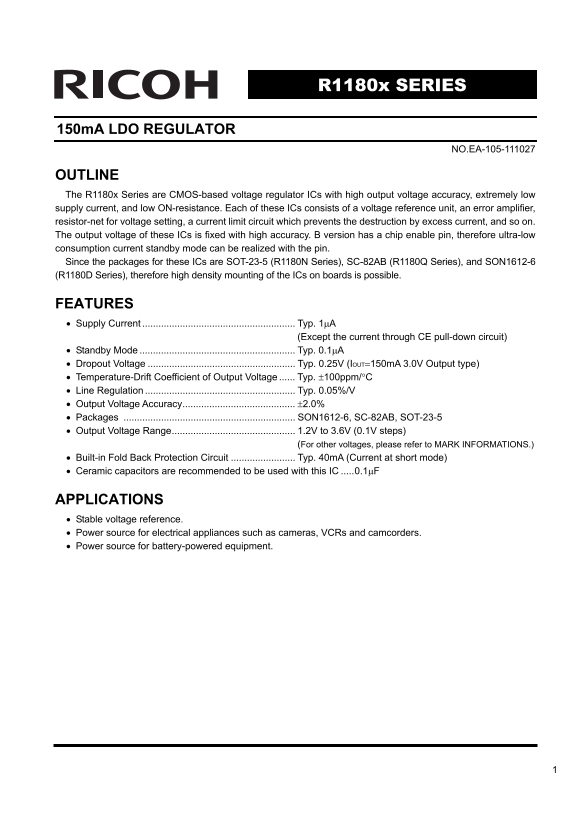

R1180x SERIES
150m A LDO REGULATOR
NO.EA-105-111027
OUTLINE The R1180x Series are CMOS-based voltage regulator ICs with high output voltage accuracy, extremely low supply current, and low ON-resistance. Each of these ICs consists of a voltage reference unit, an error amplifier, resistor-net for voltage setting, a current limit circuit which prevents the destruction by excess current, and so on. The output voltage of these ICs is fixed with high accuracy. B version has a chip enable pin, therefore ultra-low consumption current standby mode can be realized with the pin. Since the packages for these ICs are SOT-23-5 (R1180N Series), SC-82AB (R1180Q Series), and SON1612-6 (R1180D Series), therefore high density mounting of the ICs on boards is possible.
FEATURES • Supply Current Typ. 1μA
(Except the current through CE pull-down circuit)
• Standby Mode Typ. 0.1μA • Dropout Voltage Typ. 0.25V (IOUT=150m A 3.0V Output type) • Temperature-Drift Coefficient of Output Voltage Typ. ±100ppm/°C • Line Regulation Typ. 0.05%/V • Output Voltage Accuracy.......................................... ±2.0% • Packages ................................................................ SON1612-6, SC-82AB, SOT-23-5 • Output Voltage Range.............................................. 1.2V to 3.6V (0.1V steps) (For other voltages, please refer to MARK INFORMATIONS.) • Built-in Fold Back Protection Circuit Typ. 40m A (Current at short mode) • Ceramic capacitors are recommended to be used with this IC .....0.1μF
APPLICATIONS • Stable voltage reference. • Power source for electrical appliances such as cameras, VCRs and camcorders. • Power source for battery-powered equipment.
