RICOH R3114x SERIES 0.8% LOW VOLTAGE DETECTOR
Summary
The R3114x series is a high-accuracy, ultra-low supply current CMOS voltage detector IC designed for critical system reset and power monitoring applications. This reference guide provides comprehensive technical specifications, including detailed operating voltage ranges (0.5V to 6.0V), output types (Nch Open Drain/CMOS), and various package options. It is essential reading for electronics engineers developing reliable embedded systems, battery checkers, or power failure detection circuits requiring precise system reset functionality.

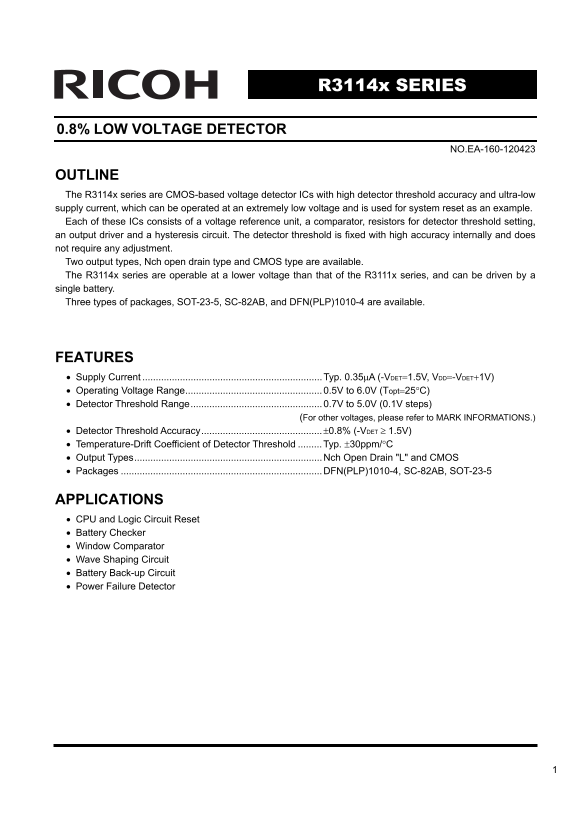

Page 1 Text Content
R3114x SERIES
0.8% LOW VOLTAGE DETECTOR
NO.EA-160-120423
OUTLINE The R3114x series are CMOS-based voltage detector ICs with high detector threshold accuracy and ultra-low supply current, which can be operated at an extremely low voltage and is used for system reset as an example. Each of these ICs consists of a voltage reference unit, a comparator, resistors for detector threshold setting, an output driver and a hysteresis circuit. The detector threshold is fixed with high accuracy internally and does not require any adjustment. Two output types, Nch open drain type and CMOS type are available. The R3114x series are operable at a lower voltage than that of the R3111x series, and can be driven by a single battery. Three types of packages, SOT-23-5, SC-82AB, and DFN(PLP)1010-4 are available.
FEATURES • Supply Current ...................................................................Typ. 0.35μA (-VDET=1.5V, VDD=-VDET+1V) • Operating Voltage Range................................................... 0.5V to 6.0V (Topt=25°C) • Detector Threshold Range................................................. 0.7V to 5.0V (0.1V steps) (For other voltages, please refer to MARK INFORMATIONS.) • Detector Threshold Accuracy.............................................±0.8% (-VDET ≥ 1.5V) • Temperature-Drift Coefficient of Detector Threshold .........Typ. ±30ppm/°C • Output Types......................................................................Nch Open Drain "L" and CMOS • Packages ...........................................................................DFN(PLP)1010-4, SC-82AB, SOT-23-5
APPLICATIONS • CPU and Logic Circuit Reset • Battery Checker • Window Comparator • Wave Shaping Circuit • Battery Back-up Circuit • Power Failure Detector
Page Summary Contents For RICOH R3114x SERIES 0.8% LOW VOLTAGE DETECTOR
Manual Details
| Brand | Ricoh |
|---|---|
| Pages | 23 |
| File Size | 421.26 KB |
| Published | May 27, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the key advantage of using the R3114x series?
It is CMOS-based, has high detector threshold accuracy, ultra-low supply current, and operates at lower voltages than older series.
Is the detector threshold adjustable after installation?
No, the detector threshold is fixed with high internal accuracy and does not require any adjustment.
What are the available output types for this IC?
Two output types are offered: Nch Open Drain ("L" at detection) and CMOS type.
What are the acceptable operating voltage limits?
The recommended operating condition range is 0.5V to 6.0V, although VDD can be up to an absolute maximum of 7.0V.
