RICOH R3117xxx1 2 SERIES LOW VOLTAGE DETECTOR with SENSE pin User Manual & Data Sheet

Summary

Monitor the health of your electronic systems with the R3117x series CMOS Voltage Detector ICs. These highly accurate, ultra-low power components are engineered for reliable system reset and robust power failure detection by precisely monitoring supply voltage drops. Our comprehensive guide details key specifications, including customizable thresholds (0.7V to 5.0V) and multiple output configurations suitable for challenging embedded designs. Ideal for electrical engineers designing CPU logic circuits, battery checkers, and general power management applications requiring dependable, low-quiescent current voltage fault detection across various packages.

📄 Preview PAGE OF 21

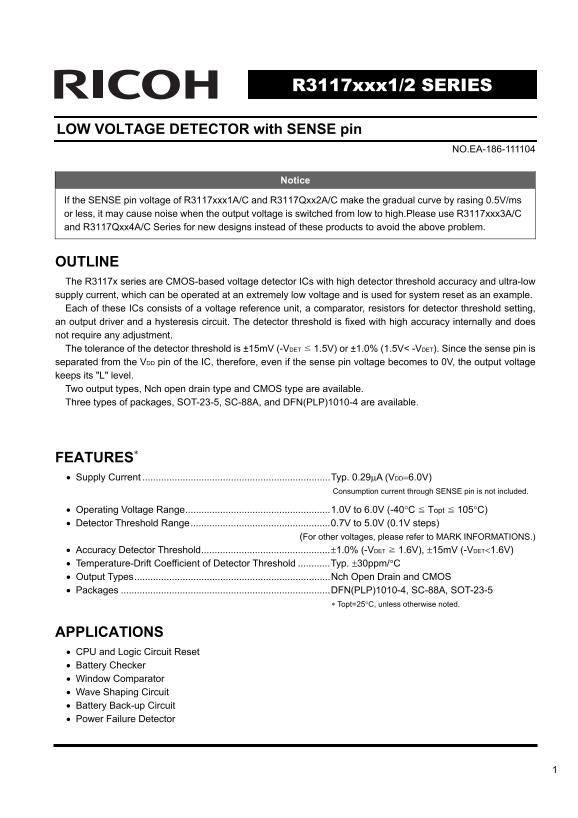

Page 1 Text Content

R3117xxx1/2 SERIES

LOW VOLTAGE DETECTOR with SENSE pin

NO.EA-186-111104

Notice

If the SENSE pin voltage of R3117xxx1A/C and R3117Qxx2A/C make the gradual curve by rasing 0.5V/ms or less, it may cause noise when the output voltage is switched from low to high.Please use R3117xxx3A/C and R3117Qxx4A/C Series for new designs instead of these products to avoid the above problem.

OUTLINE The R3117x series are CMOS-based voltage detector ICs with high detector threshold accuracy and ultra-low supply current, which can be operated at an extremely low voltage and is used for system reset as an example. Each of these ICs consists of a voltage reference unit, a comparator, resistors for detector threshold setting, an output driver and a hysteresis circuit. The detector threshold is fixed with high accuracy internally and does not require any adjustment. The tolerance of the detector threshold is ±15m V (-VDET 1.5V) or ±1.0% (1.5V< -VDET). Since the sense pin is separated from the VDD pin of the IC, therefore, even if the sense pin voltage becomes to 0V, the output voltage keeps its "L" level. Two output types, Nch open drain type and CMOS type are available. Three types of packages, SOT-23-5, SC-88A, and DFN(PLP)1010-4 are available.

FEATURES∗ • Supply Current ......................................................................Typ. 0.29μA (VDD=6.0V)

Consumption current through SENSE pin is not included.

• Operating Voltage Range......................................................1.0V to 6.0V (-40°C Topt 105°C) • Detector Threshold Range....................................................0.7V to 5.0V (0.1V steps) (For other voltages, please refer to MARK INFORMATIONS.) • Accuracy Detector Threshold................................................±1.0% (-VDET 1.6V), ±15m V (-VDET<1.6V) • Temperature-Drift Coefficient of Detector Threshold ............Typ. ±30ppm/°C • Output Types.........................................................................Nch Open Drain and CMOS • Packages ..............................................................................DFN(PLP)1010-4, SC-88A, SOT-23-5

∗ Topt=25°C, unless otherwise noted.

APPLICATIONS • CPU and Logic Circuit Reset • Battery Checker • Window Comparator • Wave Shaping Circuit • Battery Back-up Circuit • Power Failure Detector

Page Summary Contents For RICOH R3117xxx1 2 SERIES LOW VOLTAGE DETECTOR with SENSE pin User Manual & Data Sheet

Page 1 R3117xxx1/2 SERIES LOW VOLTAGE DETECTOR with SENSE pin NO.EA-186-111104 Notice If the SENSE pin voltage of R3117xxx1A/C and R3117Qxx2A/C make the gradual curve by rasing 0.5V/ms or less, it may cause ...
Page 2 R3117xxx1/2 BLOCK DIAGRAMS Nch Open Drain Output (R3117xxxx A) CMOS Output (R3117xxxx C) SENSE SENSE DOUTVDD VDD Vref Vref GND GND SELECTION GUIDE The package type, the detector threshold, the output ...
Page 3 R3117xxx1/2 PIN CONFIGURATIONS • DFN(PLP)1010-4*1 • SC-88A • SOT-23-5 Top View Bottom View (mark side) (mark side) PIN DESCRIPTIONS • DFN(PLP)1010-4*1 Pin No. Symbol Description 1 DOUT Output Pin (&qu...
Page 4 R3117xxx1/2 ABSOLUTE MAXIMUM RATINGS Symbol Item Rating Unit VDD Supply Voltage 7.0 V VSENSE SENSE Pin Voltage 7.0 V Output Voltage (Nch Open Drain Output) VSS−0.3 to 7.0 Output Voltage (CMOS Output) ...
Page 5 R3117xxx1/2 Symbol Item Conditions Min. Typ. Max. Unit -VDET &lt; 1.5V 6 25 1.5V -VDET &lt; 4.7V 5 40 RSENSE Sense Resistor MΩ 4.7V -VDET 10 40 VDD Operating Voltage -40°C Topt 105°C 1.0 6.0 V Topt=25...
Page 6 R3117xxx1/2 ELECTRICAL CHARACTERISTICS BY DETECTOR THRESHOLD • R3117x07x A/C to R3117x50x A/C Bold values are checked and guaranteed by design engineering at −40°C Topt 105°C, unless otherwise noted. ...
Page 7 R3117xxx1/2 ELECTRICAL CHARACTERISTICS BY DETECTOR THRESHOLD • R3117x07x A/C to R3117x50x A/C are checked and guaranteed by design engineering at −40°CTopt105°C, unless otherwise noted. Topt=25°C Nch ...
Page 8 R3117xxx1/2 TIMING CHART Supply Voltage (VDD) Minimum Operating VDDL Voltage Detector Threshold Detector Threshold Hysteresis Hysteresis Released Voltage +VDET Detector Threshold -VDET SENSE Pin Volta...
Page 9 R3117xxx1/2 OPERATION • Operation of R3117xxxx A SENSE Comparator DOUT pin should be pulled-up to DOUT VDD or an external voltage level. Rb Vref Nch Block Diagram (R3117xxxx A) Supply Voltage (VDD) Mi...
Page 10 R3117xxx1/2 • Operation of R3117xxxx C SENSE Comparator Ra Pch Rb Vref Nch Block Diagram (R3117xxxx C) Supply Voltage (VDD) Minimum Operating VDDL Step 1 2 3 Voltage Comparator (−) Pin Input Voltage I...
Page 11 R3117xxx1/2 Power supply injection order The R3117xxxx A/C Series supervise the voltage of the SENSE pin. VDD pin and SENSE pin can be used at the same voltage level. Likewise, VDD pin and SENSE pin c...
Page 12 R3117xxx1/2 Put Equation (3) into Equation (4), then VS = -VDET × (Ra + Rb) / Rb + Ra × ISENSE Ra × ISENSE is an error in VS. Ra × ISENSE = Ra × (-VDET) / RSENSE = -VDET × Ra / RSENSE The error range ...
Page 13 R3117xxx1/2 ls id th µs Detector Operation vs. glitch input voltage to the SENSE pin When the R3117x is at released, if the pulse voltage which the detector threshold or lower voltage, the graph below...
Page 14 R3117xxx1/2 TEST CIRCUITS ISS 5V or VDD VOUTVIN VIN Series DOUT Series SENSE SENSE Supply Current Test Circuit Detector Threshold Test Circuit (Pull-up circuit is not necessary for CMOS Output type.) ...
Page 15 te to re ld te to re ld ly rr IS µA R3117xxx1/2 TYPICAL CHARACTERISTICS 1) Supply Current vs. Supply Voltage R3117xxxx A/C (at released) R3117xxxx A/C (at detect) 1.0 1.0 Topt=105°C 0.8 Topt=25°C 0.8 ...
Page 16 te to re ld te re is te to re ld te to re ld R3117xxx1/2 3) Detector Threshold vs. Supply Voltage Topt=- 40°C Topt=- 40°C Topt=25°C Topt=25°C Topt=105°C 3.01 Topt=105°C Supply Voltage VDD (V) Supply V...
Page 17 tp lt tp lt te to re ld te re is R3117xxx1/2 Topt=- 40°C Topt=25°C Topt=105°C Supply Voltage VDD (V) tp lt 5) Output Voltage vs. SENSE pin Input Voltage (Nch Open Drain Output type is pulled up to VDD...
Page 18 ri tp rr IO ri tp rr IO R3117xxx1/2 6) Nch Driver Output Current vs. Supply Voltage 7) Nch Driver Output Current vs. VDS R3117xxxx A/C R3117xxxx A/C VDS=0.5V Topt=25°C Topt=- 40°C VDD=6.0V VDD=5.0V To...
Page 19 R3117xxx1/2 TYPICAL APPLICATION • R3117xxxx A CPU Reset Circuit (Nch Open Drain Output) (1) Input Voltage to R3117xxxx A is equal to Input Voltage to CPU VDD VDD CPU R3117xxxx A Series DOUT RESET SENS...
Page 20 R3117xxx1/2 TECHNICAL NOTES When R3117xxxx A/C is used in the circuit as SENSE pin and VDD pin are connected each other such as in Figure A, if the value of R1 is set excessively large, the dropdown v...
Page 21 1. The products and the product specifications described in this document are subject to change or discontinuation of production without notice for reasons such as improvement. Therefore, before decid...

Manual Details

Brand Ricoh
Pages 21
File Size 414.70 KB
Published May 27, 2026
80 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

Why should I use the R3117xxx3A/C series for new designs?

R3117xxx1A/C and R3117Qxx2A/C may cause noise when switching output voltage from low to high, so R3117xxx3A/C or R3117Qxx4A/C should be used instead.

What is the typical supply current for this detector?

The typical supply current is 0.29μA when operating at VDD=6.0V (excluding SENSE pin consumption).

Do I need to adjust the detector threshold?

No, the detector threshold is fixed with high accuracy internally and does not require any adjustment.

What voltage range can this IC operate within?

It operates across a voltage range of 1.0V to 6.0V (at -40°C Topt 105°C).

Which package types are available for the R3117 series?

Three packages are available: SOT-23-5, SC-88A, and DFN(PLP)1010-4.
