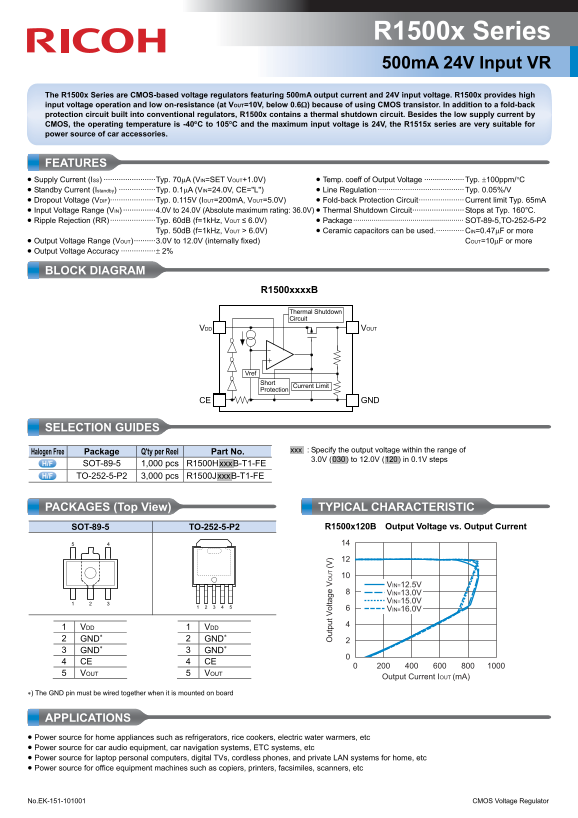

R1500x Series 500m A 24V Input VR
The R1500x Series are CMOS-based voltage regulators featuring 500m A output current and 24V input voltage. R1500x provides high input voltage operation and low on-resistance (at VOUT=10V, below 0.6Ω) because of using CMOS transistor. In addition to a fold-back protection circuit built into conventional regulators, R1500x contains a thermal shutdown circuit. Besides the low supply current by CMOS, the operating temperature is -40°C to 105°C and the maximum input voltage is 24V, the R1515x series are very suitable for power source of car accessories.
FEATURES • Supply Current (ISS) ························Typ. 70μA (VIN=SET VOUT+1.0V) • Temp. coeff of Output Voltage ···················Typ. ±100ppm/°C • Standby Current (Istandby) ·················Typ. 0.1μA (VIN=24.0V, CE="L") • Line Regulation ········································ Typ. 0.05%/V • Dropout Voltage (VDIF)·····················Typ. 0.115V (IOUT=200m A, VOUT=5.0V) • Fold-back Protection Circuit·····················Current limit Typ. 65m A • Input Voltage Range (VIN) ···············4.0V to 24.0V (Absolute maximum rating: 36.0V) • Thermal Shutdown Circuit························Stops at Typ. 160°C. • Ripple Rejection (RR) ·····················Typ. 60d B (f=1k Hz, VOUT ≤ 6.0V) • Package······················································ SOT-89-5,TO-252-5-P2
Typ. 50d B (f=1k Hz, VOUT > 6.0V) • Ceramic capacitors can be used.·············CIN=0.47μF or more
• Output Voltage Range (VOUT)··········3.0V to 12.0V (internally fixed) COUT=10μF or more • Output Voltage Accuracy ················± 2%
BLOCK DIAGRAM
R1500xxxx B
Thermal Shutdown Circuit
tp VDD VOUT lt
Current Limit Short
Protection
CE GND
SELECTION GUIDES
Part No. .xxx : Specify the output voltage within the range of
Halogen Free Package Q'ty per Reel
3.0V (.030.) to 12.0V (.120.) in 0.1V steps
SOT-89-5 1,000 pcs R1500H.xxx B-T1-FE TO-252-5-P2 3,000 pcs R1500J.xxx B-T1-FE
PACKAGES (Top View) TYPICAL CHARACTERISTIC
SOT-89-5 TO-252-5-P2 R1500x120B Output Voltage vs. Output Current
VIN=12.5V VIN=13.0V VIN=15.0V
VIN=16.0V
1 VDD 1 VDD 2 GND∗ 2 GND∗ 3 GND∗ 3 GND∗ 4 CE 4 CE 5 VOUT 5 VOUT
Output Current IOUT (m A)
∗) The GND pin must be wired together when it is mounted on board
APPLICATIONS • Power source for home appliances such as refrigerators, rice cookers, electric water warmers, etc • Power source for car audio equipment, car navigation systems, ETC systems, etc • Power source for laptop personal computers, digital TVs, cordless phones, and private LAN systems for home, etc • Power source for office equipment machines such as copiers, printers, facsimiles, scanners, etc
No.EK-151-101001 CMOS Voltage Regulator
