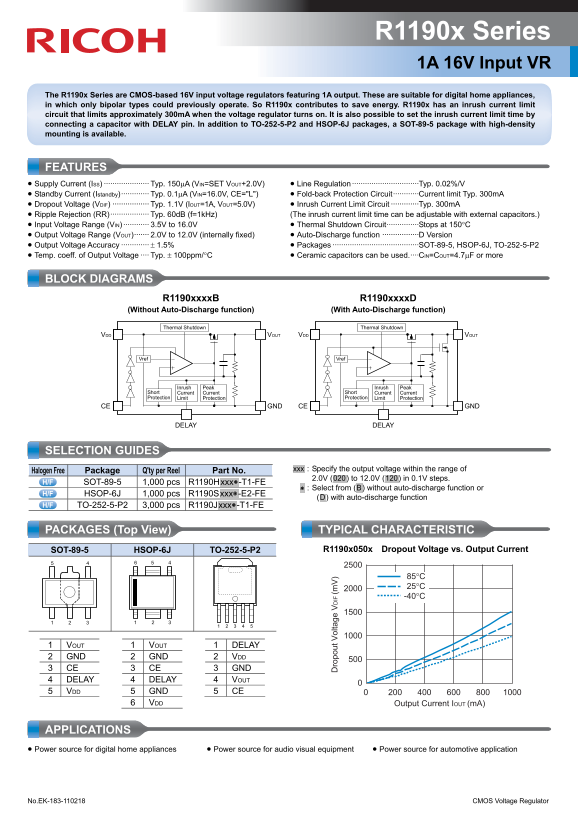

R1190x Series 1A 16V Input VR

The R1190x Series are CMOS-based 16V input voltage regulators featuring 1A output. These are suitable for digital home appliances, in which only bipolar types could previously operate. So R1190x contributes to save energy. R1190x has an inrush current limit circuit that limits approximately 300m A when the voltage regulator turns on. It is also possible to set the inrush current limit time by connecting a capacitor with DELAY pin. In addition to TO-252-5-P2 and HSOP-6J packages, a SOT-89-5 package with high-density mounting is available.

FEATURES • Supply Current (ISS) ····················· Typ. 150μA (VIN=SET VOUT+2.0V) • Line Regulation·······························Typ. 0.02%/V • Standby Current (Istandby)············· Typ. 0.1μA (VIN=16.0V, CE="L") • Fold-back Protection Circuit············Current limit Typ. 300m A • Dropout Voltage (VDIF) ················· Typ. 1.1V (IOUT=1A, VOUT=5.0V) • Inrush Current Limit Circuit ·············Typ. 300m A • Ripple Rejection (RR)·················· Typ. 60d B (f=1k Hz) (The inrush current limit time can be adjustable with external capacitors.) • Input Voltage Range (VIN) ············ 3.5V to 16.0V • Thermal Shutdown Circuit···············Stops at 150°C • Output Voltage Range (VOUT)······· 2.0V to 12.0V (internally fixed) • Auto-Discharge function ·················D Version • Output Voltage Accuracy ············· ± 1.5% • Packages ········································SOT-89-5, HSOP-6J, TO-252-5-P2 • Temp. coeff. of Output Voltage ···· Typ. ± 100ppm/°C • Ceramic capacitors can be used.····CIN=COUT=4.7μF or more

BLOCK DIAGRAMS R1190xxxx B R1190xxxx D (Without Auto-Discharge function) (With Auto-Discharge function)

Thermal Shutdown Thermal Shutdown

VDD VOUT ro po ut ol ta ge IF (m VDD VOUT

Vref Vref

Inrush Peak Inrush Peak

Short Current Current Short Current Current Protection Limit Protection Protection Limit Protection

CE GND CE GND

DELAY DELAY

SELECTION GUIDES

.xxx. : Specify the output voltage within the range of

Halogen Free Package Q'ty per Reel Part No.

2.0V (.020.) to 12.0V (.120.) in 0.1V steps.

SOT-89-5 1,000 pcs R1190H.xxx∗ -T1-FE

.∗ : Select from (.B.) without auto-discharge function or

HSOP-6J 1,000 pcs R1190S.xxx∗ -E2-FE

(.D.) with auto-discharge function

TO-252-5-P2 3,000 pcs R1190J.xxx∗ -T1-FE

PACKAGES (Top View) TYPICAL CHARACTERISTIC

SOT-89-5 HSOP-6J TO-252-5-P2 R1190x050x Dropout Voltage vs. Output Current

1 VOUT 1 VOUT 1 DELAY 2 GND 2 GND 2 VDD 3 CE 3 CE 3 GND 4 DELAY 4 DELAY 4 VOUT 5 VDD 5 GND 5 CE

6 VDD Output Current IOUT (m A)

APPLICATIONS • Power source for digital home appliances • Power source for audio visual equipment • Power source for automotive application

No.EK-183-110218 CMOS Voltage Regulator
