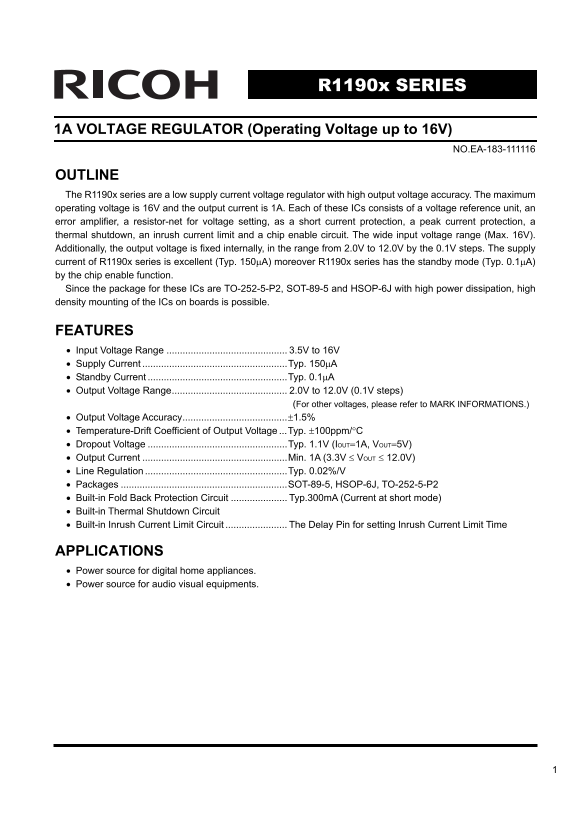

R1190x SERIES

1A VOLTAGE REGULATOR (Operating Voltage up to 16V)

NO.EA-183-111116

OUTLINE The R1190x series are a low supply current voltage regulator with high output voltage accuracy. The maximum operating voltage is 16V and the output current is 1A. Each of these ICs consists of a voltage reference unit, an error amplifier, a resistor-net for voltage setting, as a short current protection, a peak current protection, a thermal shutdown, an inrush current limit and a chip enable circuit. The wide input voltage range (Max. 16V). Additionally, the output voltage is fixed internally, in the range from 2.0V to 12.0V by the 0.1V steps. The supply current of R1190x series is excellent (Typ. 150μA) moreover R1190x series has the standby mode (Typ. 0.1μA) by the chip enable function. Since the package for these ICs are TO-252-5-P2, SOT-89-5 and HSOP-6J with high power dissipation, high density mounting of the ICs on boards is possible.

FEATURES • Input Voltage Range 3.5V to 16V • Supply Current ......................................................Typ. 150μA • Standby Current ....................................................Typ. 0.1μA • Output Voltage Range........................................... 2.0V to 12.0V (0.1V steps)

(For other voltages, please refer to MARK INFORMATIONS.)

• Output Voltage Accuracy.......................................±1.5% • Temperature-Drift Coefficient of Output Voltage ...Typ. ±100ppm/°C • Dropout Voltage ....................................................Typ. 1.1V (IOUT=1A, VOUT=5V) • Output Current ......................................................Min. 1A (3.3V ≤ VOUT ≤ 12.0V) • Line Regulation .....................................................Typ. 0.02%/V • Packages ..............................................................SOT-89-5, HSOP-6J, TO-252-5-P2 • Built-in Fold Back Protection Circuit Typ.300m A (Current at short mode) • Built-in Thermal Shutdown Circuit • Built-in Inrush Current Limit Circuit The Delay Pin for setting Inrush Current Limit Time

APPLICATIONS • Power source for digital home appliances. • Power source for audio visual equipments.

Page Summary Contents For Operating Voltage up to 16V - Ricoh R1190x Series 1A Voltage Regulator Data Manual, Specifications User Guide

Page 1 R1190x SERIES 1A VOLTAGE REGULATOR (Operating Voltage up to 16V) NO.EA-183-111116 OUTLINE The R1190x series are a low supply current voltage regulator with high output voltage accuracy. The maximum op...
Page 2 BLOCK DIAGRAMS R1190xxxx B R1190xxxx D Thermal Shutdown Thermal Shutdown VDD VOUT VDD VOUT Vref Vref Inrush Peak Inrush Peak Short Current Current Short Current Current Protection Limit Protection Pro...
Page 3 PIN CONFIGURATIONS • SOT-89-5 • HSOP-6J • TO-252-5-P2 5 4 PIN DESCRIPTIONS • SOT-89-5 Pin No. Symbol Description 1 VOUT Output Pin 2 GND Ground Pin 3 CE Chip Enable Pin ("H" Active) 4 DELAY ...
Page 4 ABSOLUTE MAXIMUM RATINGS Symbol Item Rating Unit VIN Input Voltage −0.3 to 18 V VCE Input Voltage (CE Pin) −0.3 to VIN+0.3 ≤ 18 V VOUT Output Voltage −0.3 to VIN+0.3 ≤ 18 V Power Dissipation (SOT-89-5...
Page 5 ELECTRICAL CHARACTERISTICS VIN=VCE=Set VOUT+2.0V, CIN=COUT=4.7μF, IOUT=1m A, unless otherwise noted. The specification in is checked and guaranteed by design engineering at −40°C ≤ Topt ≤ 85°C. • R119...
Page 6 The specification in is checked and guaranteed by design engineering at −40°C ≤ Topt ≤ 85°C. • Output Current by Output Voltage Output Current ILIM (m A) Output Voltage VOUT Condition Min. 2.0V ≤ VOUT...
Page 7 TYPICAL APPLICATION VDD VOUT VOUT C1 Series CE GND DELAY DELAY pin is OPEN when CD pin is not used. (External Components) C1, C2: Ceramic Capacitor 4.7μF Nippon Chemi-con Corporation KTD500B475M43A0T0...
Page 8 Inrush-Current Limit Function R1190x Series has the function to limit the inrush-current, it limited approximately 0.3A when the voltage regulator is turn ON. It is also possible to set time of the ru...
Page 9 TEST CIRCUITS VDD VOUT R1190x Series VIN C1 CE GND DELAY VOUT IOUT Basic Test Circuit VDD VOUT R1190x Series CE GND DELAY Test Circuit for Supply Current VDD VOUT Pulse R1190x Generator Series P.G. CE...
Page 10 VDD VOUT VOUT R1190x Series VIN C1 C2 CE GND DELAY IOUTa IOUTb Test Circuit for Load Transient Response
Page 11 tp lt tp lt tp lt TYPICAL CHARACTERISTIC 1) Output Voltage vs. Output Current (C1=C2=4.7μF, Topt=25°C) R1190x020x R1190x033x 2.5 4.0 VIN=4.5V VIN=5.8V VIN=4.0V 0.5 VIN=5.3V VIN=3.5V VIN=4.8V VIN=3.0V ...
Page 12 tp lt tp lt tp lt 2) Output Voltage vs. Input Voltage (C1=C2=4.7μF, Topt=25°C) IOUT=1m A 1.0 IOUT=1m A IOUT=100m A IOUT=100m A IOUT=500m A IOUT=500m A Input Voltage VIN (V) Input Voltage VIN (V) tp lt...
Page 13 ly rr IS μA ly rr IS μA ly rr IS μA 3) Supply Current vs. Input Voltage (C1=C2=4.7μF, Topt=25°C) Input Voltage VIN (V) Input Voltage VIN (V) ly rr IS μA ly rr IS μA Input Voltage VIN (V) Input Voltage...
Page 14 tp lt tp lt tp lt 4) Output Voltage vs. Temperature (C1=C2=4.7μF, IOUT=1m A) VIN=4.0V VIN=5.3V tp lt tp lt Temperature Topt (°C) Temperature Topt (°C) VIN=7.0V VIN=11.0V Temperature Topt (°C) Temperat...
Page 15 ly rr IS μA ly rr IS μA ly rr IS μA 5) Supply Current vs. Temperature (C1=C2=4.7μF) VIN=4.0V VIN=5.3V Temperature Topt (°C) Temperature Topt (°C) ly rr IS μA ly rr IS μA VIN=7.0V VIN=11.0V Temperature...
Page 16 ro lt IF ro lt IF ro lt IF 6) Dropout Voltage vs. Output Current (C1=C2=4.7μF) ro lt IF ro lt IF Output Current IOUT (m A) Output Current IOUT (m A) Output Current IOUT (m A) Output Current IOUT (m A)...
Page 17 ro lt IF ip le je ti ip le je ti 7) Dropout Voltage vs. Set Output Voltage (C1=C2=4.7μF, Topt=25°C) IOUT=1000m A IOUT=700m A IOUT=500m A IOUT=200m A IOUT=100m A IOUT=1m A Set Output Voltage VREG (V) i...
Page 18 ip le je ti ip le je ti ip le je ti f=1k Hz f=10k Hz f=100k Hz Input Voltage VIN (V) ip le je ti ip le je ti 9) Ripple Rejection vs. Frequency (C1=none, C2=4.7μF, Ripple=0.2Vp-p, Topt=25°C) VIN=4.0V V...
Page 19 tp lt tp lt ip le je ti VIN=14.0V IOUT=1m A IOUT=100m A IOUT=200m A In lt IN Frequency f (k Hz) In lt IN tp lt tp lt 10) Input Transient Response (C1=none, C2=4.7μF, IOUT=1m A, tr=tf=0.5μs) Input Volt...
Page 20 tp lt tp lt tp lt Input Voltage Output Voltage In lt IN tp rr IO tp rr IO Time t (μs) tp lt tp lt 11) Load Transient Response (C1=C2=4.7μF, tr=tf=0.5μs) VIN=4.3V VIN=5.6V Output Current Output Current...
Page 21 tp lt tp lt tp lt VIN=14.3V Output Current 1m A 1A Output Voltage tp rr IO lt lt Time t (μs) tp lt tp lt 12) Turn On Speed with CE Pin (IOUT=1m A, C1=C2=4.7μF, tr=tf=0.5μs) VIN=4V VIN=7V CE Input Volt...
Page 22 tp lt tp lt tp lt 13) Turn Off Speed with CE Pin (D Version) (IOUT=1m A, C1=C2=4.7μF, tr=tf=0.5μs) VIN=4V VIN=7V CE Input Voltage CE Input Voltage Output Voltage Output Voltage In ru rr (A lt lt tp lt...
Page 23 R1190x In ru rr im it im tp lt In ru rr im it im 15) Inrush Current Limit vs. CD Capacitance (C1=C2=4.7μF) VIN=7.0V CD (p F) 16) Inrush Current Limit Delay Time vs. Input Voltage (C1=C2=4.7μF) VIN=7.0...
Page 24 ESR vs. Output Current When using these ICs, consider the following points: The relations between IOUT (Output Current) and ESR of an output capacitor are shown below. The conditions when the white no...
Page 25 VIN=7.3V to 16V VIN=7.3V to 16V CIN=Ceramic 4.7μF CIN=COUT=Ceramic 4.7μF COUT=Ceramic 10.0μF Output Current IOUT (m A) Output Current IOUT (m A) VIN=11.3V to 16.0V VIN=11.3V to 16.0V CIN=Ceramic 4.7μF...
Page 26 1. The products and the product specifications described in this document are subject to change or discontinuation of production without notice for reasons such as improvement. Therefore, before decid...
