RICOH R1501x Series 1A 24V Input VR User Guide & Specifications
Summary
The R1501x series are efficient, CMOS-based voltage regulators designed for applications requiring stable power from 24V input up to 36V. Featuring a 1A output current and advanced protection circuits, such as thermal shutdown and fold-back protection, these regulators provide robust performance even in high-temperature environments (-40°C to 105°C). They are ideally suited for reliable power sources in demanding settings, including car audio equipment, home appliances (like refrigerators), and professional office machinery.

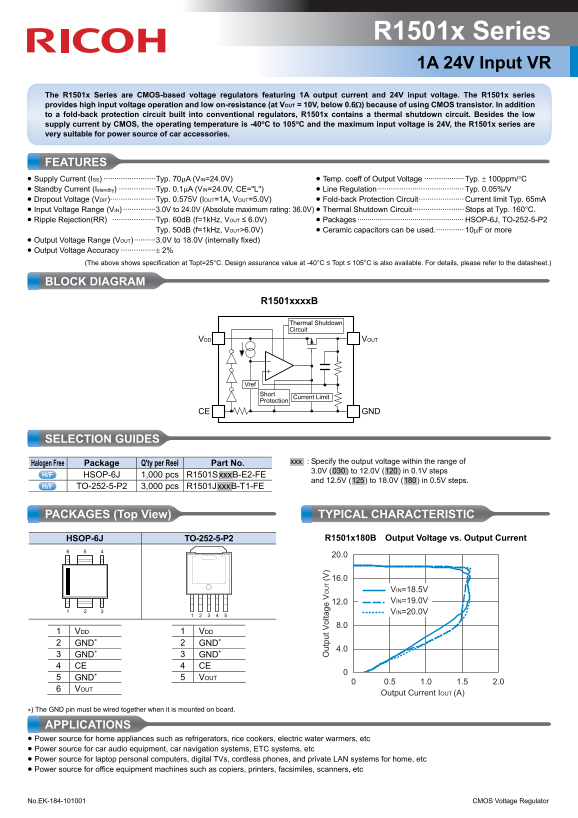

Page 1 Text Content
R1501x Series 1A 24V Input VR
The R1501x Series are CMOS-based voltage regulators featuring 1A output current and 24V input voltage. The R1501x series provides high input voltage operation and low on-resistance (at VOUT = 10V, below 0.6Ω) because of using CMOS transistor. In addition to a fold-back protection circuit built into conventional regulators, R1501x contains a thermal shutdown circuit. Besides the low supply current by CMOS, the operating temperature is -40°C to 105°C and the maximum input voltage is 24V, the R1501x series are very suitable for power source of car accessories.
FEATURES • Supply Current (ISS) ························Typ. 70μA (VIN=24.0V) • Temp. coeff of Output Voltage ···················Typ. ± 100ppm/°C • Standby Current (Istandby) ·················Typ. 0.1μA (VIN=24.0V, CE="L") • Line Regulation ········································ Typ. 0.05%/V • Dropout Voltage (VDIF)·····················Typ. 0.575V (IOUT=1A, VOUT=5.0V) • Fold-back Protection Circuit·····················Current limit Typ. 65m A • Input Voltage Range (VIN) ···············3.0V to 24.0V (Absolute maximum rating: 36.0V) • Thermal Shutdown Circuit························Stops at Typ. 160°C. • Ripple Rejection(RR) ····················Typ. 60d B (f=1k Hz, VOUT ≤ 6.0V) • Packages ···················································· HSOP-6J, TO-252-5-P2 Typ. 50d B (f=1k Hz, VOUT>6.0V) • Ceramic capacitors can be used.············· 10μF or more • Output Voltage Range (VOUT)··········3.0V to 18.0V (internally fixed) • Output Voltage Accuracy ················± 2%
(The above shows specification at Topt=25°C. Design assurance value at -40°C ≤ Topt ≤ 105°C is also available. For details, please refer to the datasheet.)
BLOCK DIAGRAM
R1501xxxx B
Thermal Shutdown
tp lt
Circuit
VDD VOUT
Current Limit Short
Protection
CE GND
SELECTION GUIDES
Part No. .xxx : Specify the output voltage within the range of
Halogen Free Package Q'ty per Reel
3.0V (.030.) to 12.0V (.120.) in 0.1V steps
HSOP-6J 1,000 pcs R1501S.xxx B-E2-FE
and 12.5V (.125.) to 18.0V (.180.) in 0.5V steps.
TO-252-5-P2 3,000 pcs R1501J.xxx B-T1-FE
PACKAGES (Top View) TYPICAL CHARACTERISTIC
HSOP-6J TO-252-5-P2 R1501x180B Output Voltage vs. Output Current
VIN=18.5V 12.0 VIN=19.0V
1 3 VIN=20.0V
1 VDD 1 VDD 2 GND∗ 2 GND∗
3 GND∗ 3 GND∗ 4 CE 4 CE 5 GND∗ 5 VOUT
6 VOUT
Output Current IOUT (A)
∗) The GND pin must be wired together when it is mounted on board.
APPLICATIONS • Power source for home appliances such as refrigerators, rice cookers, electric water warmers, etc • Power source for car audio equipment, car navigation systems, ETC systems, etc • Power source for laptop personal computers, digital TVs, cordless phones, and private LAN systems for home, etc • Power source for office equipment machines such as copiers, printers, facsimiles, scanners, etc
No.EK-184-101001 CMOS Voltage Regulator
Page Summary Contents For RICOH R1501x Series 1A 24V Input VR User Guide & Specifications
Manual Details
| Brand | Ricoh |
|---|---|
| Pages | 2 |
| File Size | 208.13 KB |
| Published | June 01, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What protective features are built into the R1501x series?
The regulator contains both a fold-back protection circuit and a thermal shutdown circuit for enhanced safety.
What is the required input voltage range for operation?
It accepts an operational input voltage (VIN) between 3.0V and 24.0V, with an absolute maximum rating of 36.0V.
How efficient are its standby power requirements?
The standby current is very low at approximately 0.1μA when operating on a 24.0V input.
