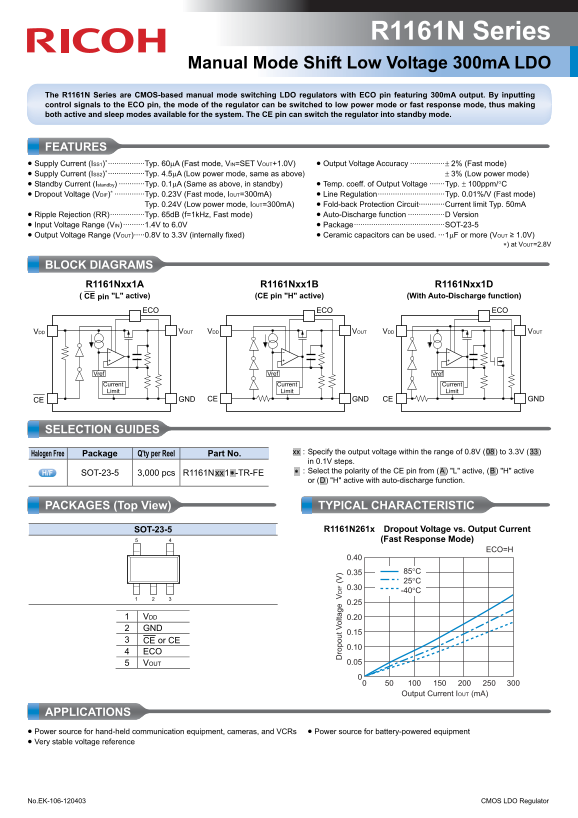

R1161N Series
Manual Mode Shift Low Voltage 300m A LDO
The R1161N Series are CMOS-based manual mode switching LDO regulators with ECO pin featuring 300m A output. By inputting control signals to the ECO pin, the mode of the regulator can be switched to low power mode or fast response mode, thus making both active and sleep modes available for the system. The CE pin can switch the regulator into standby mode.
FEATURES • Supply Current (ISS1)∗·················Typ. 60μA (Fast mode, VIN=SET VOUT+1.0V) • Output Voltage Accuracy ················± 2% (Fast mode) • Supply Current (ISS2)∗·················Typ. 4.5μA (Low power mode, same as above) ± 3% (Low power mode) • Standby Current (Istandby) ············Typ. 0.1μA (Same as above, in standby) • Temp. coeff. of Output Voltage ·······Typ. ± 100ppm/°C • Dropout Voltage (VDIF)∗ ··············Typ. 0.23V (Fast mode, IOUT=300m A) • Line Regulation·······························Typ. 0.01%/V (Fast mode)
Typ. 0.24V (Low power mode, IOUT=300m A) • Fold-back Protection Circuit············Current limit Typ. 50m A
• Ripple Rejection (RR)················Typ. 65d B (f=1k Hz, Fast mode) • Auto-Discharge function ·················D Version • Input Voltage Range (VIN) ··········1.4V to 6.0V • Package··········································SOT-23-5 • Output Voltage Range (VOUT)·····0.8V to 3.3V (internally fixed) • Ceramic capacitors can be used. ···1μF or more (VOUT ≥ 1.0V)
∗) at VOUT=2.8V
BLOCK DIAGRAMS R1161Nxx1A R1161Nxx1B R1161Nxx1D
CE pin "L" active) (CE pin "H" active) (With Auto-Discharge function)
ECO ECO ECO
VDD VOUT VDD VOUT VDD VOUT
ro lt IF
Vref Vref Vref Current Current Current Limit Limit Limit
CE GND CE GND CE GND
SELECTION GUIDES
Part No. .xx. : Specify the output voltage within the range of 0.8V (.08.) to 3.3V (.33.)
Halogen Free Package Q'ty per Reel
in 0.1V steps. R1161N.xx.1.∗ -TR-FE .∗ : Select the polarity of the CE pin from (.A.) "L" active, (.B.) "H" active
SOT-23-5 3,000 pcs
or (.D.) "H" active with auto-discharge function.
PACKAGES (Top View) TYPICAL CHARACTERISTIC
SOT-23-5 R1161N261x Dropout Voltage vs. Output Current
5 4 (Fast Response Mode)
ECO=H
1 VDD 0.20 2 GND
3 CE or CE
4 ECO
5 VOUT 0.05
Output Current IOUT (m A)
APPLICATIONS • Power source for hand-held communication equipment, cameras, and VCRs • Power source for battery-powered equipment • Very stable voltage reference
No.EK-106-120403 CMOS LDO Regulator
