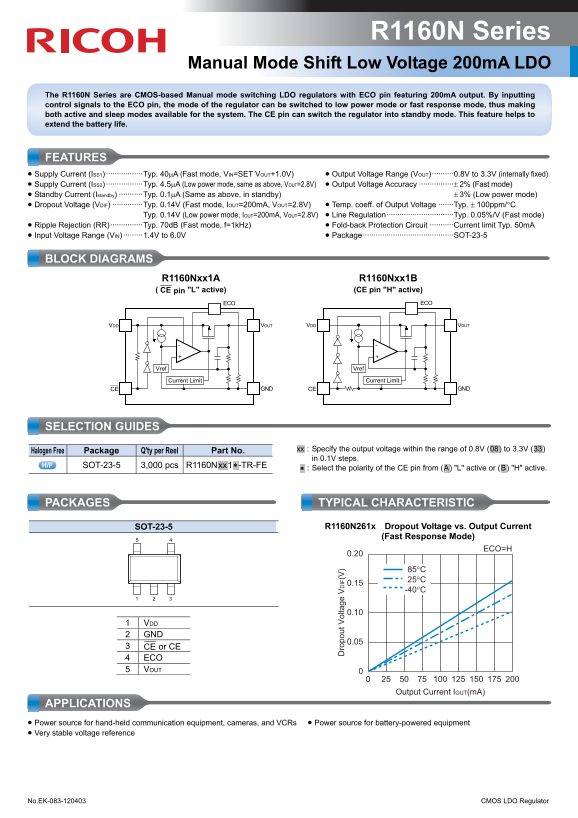

R1160N Series
Manual Mode Shift Low Voltage 200m A LDO
The R1160N Series are CMOS-based Manual mode switching LDO regulators with ECO pin featuring 200m A output. By inputting control signals to the ECO pin, the mode of the regulator can be switched to low power mode or fast response mode, thus making both active and sleep modes available for the system. The CE pin can switch the regulator into standby mode. This feature helps to extend the battery life.
FEATURES • Supply Current (ISS1) ·················Typ. 40μA (Fast mode, VIN=SET VOUT+1.0V) • Output Voltage Range (VOUT)··········0.8V to 3.3V (internally fixed) • Supply Current (ISS2) ·················Typ. 4.5μA (Low power mode, same as above, VOUT=2.8V) • Output Voltage Accuracy ················± 2% (Fast mode) • Standby Current (Istandby) ···········Typ. 0.1μA (Same as above, in standby) ± 3% (Low power mode) • Dropout Voltage (VDIF) ··············Typ. 0.14V (Fast mode, IOUT=200m A, VOUT=2.8V) • Temp. coeff. of Output Voltage ·······Typ. ± 100ppm/°C
Typ. 0.14V (Low power mode, IOUT=200m A, VOUT=2.8V) • Line Regulation·······························Typ. 0.05%/V (Fast mode)
• Ripple Rejection (RR)···············Typ. 70d B (Fast mode, f=1k Hz) • Fold-back Protection Circuit ···········Current limit Typ. 50m A • Input Voltage Range (VIN) ·········1.4V to 6.0V • Package··········································SOT-23-5
BLOCK DIAGRAMS R1160Nxx1A R1160Nxx1B
CE pin "L" active) (CE pin "H" active)
ECO ECO
VDD VOUT VDD VOUT
ro lt IF (V
Vref Vref
Current Limit Current Limit
CE GND CE GND
SELECTION GUIDES
Part No. .xx. : Specify the output voltage within the range of 0.8V (.08.) to 3.3V (.33.)
Halogen Free Package Q'ty per Reel
in 0.1V steps.
SOT-23-5 3,000 pcs R1160N.xx.1.∗ -TR-FE
.∗ : Select the polarity of the CE pin from (.A.) "L" active or (.B.) "H" active.
PACKAGES TYPICAL CHARACTERISTIC
SOT-23-5 R1160N261x Dropout Voltage vs. Output Current
(Fast Response Mode)
ECO=H
1 VDD 2 GND
3 CE or CE 4 ECO 5 VOUT
Output Current IOUT(m A)
APPLICATIONS • Power source for hand-held communication equipment, cameras, and VCRs • Power source for battery-powered equipment • Very stable voltage reference
No.EK-083-120403 CMOS LDO Regulator
