The R1516x Series is a robust, CMOS-based LDO voltage regulator designed for high efficiency and reliability in demanding electronic environments. Featuring built-in Foldback and Thermal Shutdown protection, it provides stable power output from wide input ranges (4V to 36V) with minimal standby current. This manual serves as a comprehensive guide, detailing electrical characteristics, packaging options (SOT-89-5, HSOP-6J), and operating specifications across temperatures from -40°C to 105°C. It is the ideal power source for diverse applications, including home appliances, office equipment, and portable computing devices requiring dependable voltage regulation.

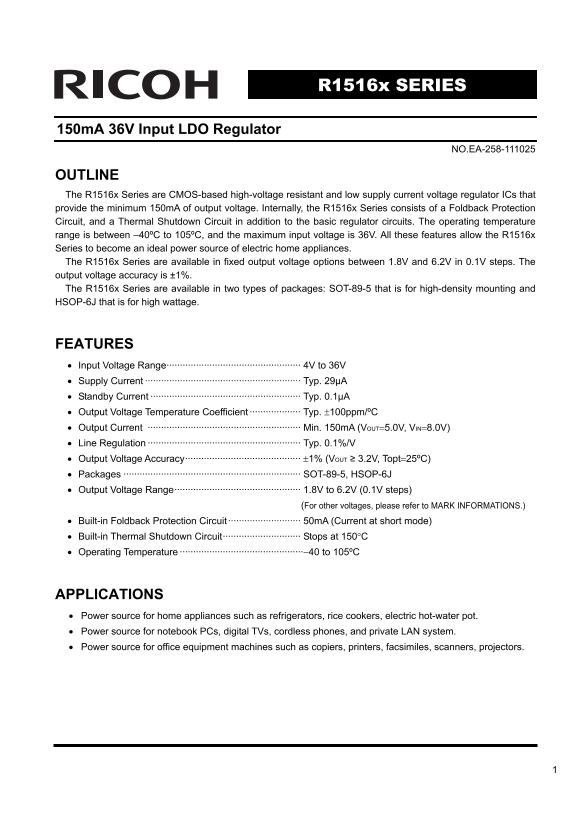

Page 1 Text Content
R1516x SERIES
150m A 36V Input LDO Regulator
NO.EA-258-111025
OUTLINE The R1516x Series are CMOS-based high-voltage resistant and low supply current voltage regulator ICs that provide the minimum 150m A of output voltage. Internally, the R1516x Series consists of a Foldback Protection Circuit, and a Thermal Shutdown Circuit in addition to the basic regulator circuits. The operating temperature range is between –40ºC to 105ºC, and the maximum input voltage is 36V. All these features allow the R1516x Series to become an ideal power source of electric home appliances. The R1516x Series are available in fixed output voltage options between 1.8V and 6.2V in 0.1V steps. The output voltage accuracy is ±1%. The R1516x Series are available in two types of packages: SOT-89-5 that is for high-density mounting and HSOP-6J that is for high wattage.
FEATURES • Input Voltage Range·················································· 4V to 36V • Supply Current ·························································· Typ. 29µA • Standby Current ························································ Typ. 0.1µA • Output Voltage Temperature Coefficient ··················· Typ. ±100ppm/ºC • Output Current ························································· Min. 150m A (VOUT=5.0V, VIN=8.0V) • Line Regulation ························································· Typ. 0.1%/V • Output Voltage Accuracy··········································· ±1% (VOUT ≥ 3.2V, Topt=25ºC) • Packages ·································································· SOT-89-5, HSOP-6J • Output Voltage Range··············································· 1.8V to 6.2V (0.1V steps) (For other voltages, please refer to MARK INFORMATIONS.) • Built-in Foldback Protection Circuit ··························· 50m A (Current at short mode) • Built-in Thermal Shutdown Circuit····························· Stops at 150°C • Operating Temperature ··············································−40 to 105ºC
APPLICATIONS • Power source for home appliances such as refrigerators, rice cookers, electric hot-water pot. • Power source for notebook PCs, digital TVs, cordless phones, and private LAN system. • Power source for office equipment machines such as copiers, printers, facsimiles, scanners, projectors.
Page Summary Contents For RICOH R1516x SERIES User's Manual and Specifications
Manual Details
| Brand | Ricoh |
|---|---|
| Pages | 14 |
| File Size | 375.78 KB |
| Published | June 05, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What protects the regulator from overheating?
It features a built-in Thermal Shutdown Circuit that stops operation if it reaches 150°C.
How low is its power consumption in standby mode?
The typical standby current is extremely low, listed at 0.1µA.
Which package type is best for handling high wattage?
For high wattage applications, the HSOP-6J package is recommended.
Are there specific wiring requirements for the Ground pin (GND)?
Yes, the user must ensure that all GND pins are wired together when mounting on a circuit board.
