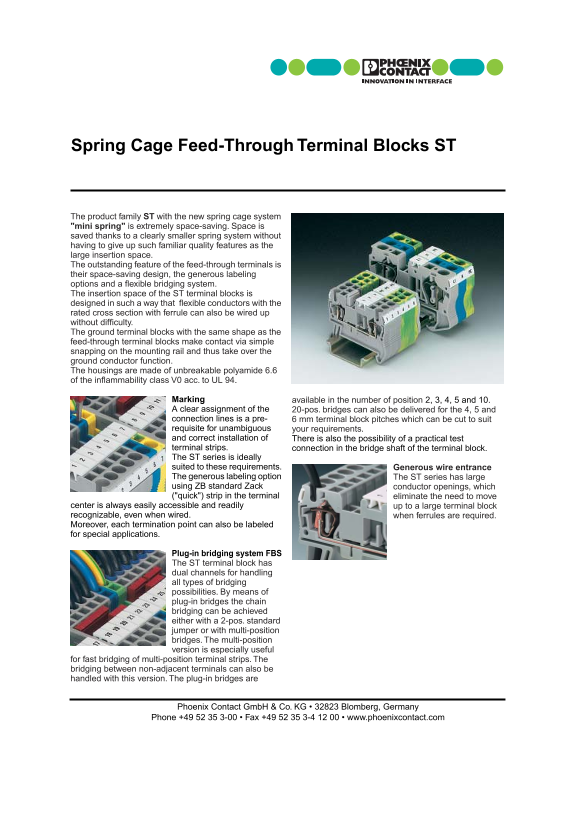

Spring Cage Feed-Through Terminal Blocks ST
The product family ST with the new spring cage system "mini spring" is extremely space-saving. Space is saved thanks to a clearly smaller spring system without having to give up such familiar quality features as the large insertion space. The outstanding feature of the feed-through terminals is their space-saving design, the generous labeling options and a flexible bridging system. The insertion space of the ST terminal blocks is designed in such a way that flexible conductors with the rated cross section with ferrule can also be wired up without difficulty. The ground terminal blocks with the same shape as the feed-through terminal blocks make contact via simple snapping on the mounting rail and thus take over the ground conductor function. The housings are made of unbreakable polyamide 6.6 of the inflammability class V0 acc. to UL 94.
Marking available in the number of position 2, 3, 4, 5 and 10. A clear assignment of the 20-pos. bridges can also be delivered for the 4, 5 and connection lines is a pre- 6 mm terminal block pitches which can be cut to suit requisite for unambiguous your requirements. and correct installation of There is also the possibility of a practical test terminal strips. connection in the bridge shaft of the terminal block. The ST series is ideally suited to these requirements. Generous wire entrance The generous labeling option The ST series has large using ZB standard Zack conductor openings, which ("quick") strip in the terminal eliminate the need to move
center is always easily accessible and readily up to a large terminal block recognizable, even when wired. when ferrules are required. Moreover, each termination point can also be labeled for special applications.
Plug-in bridging system FBS The ST terminal block has dual channels for handling all types of bridging possibilities. By means of plug-in bridges the chain bridging can be achieved either with a 2-pos. standard jumper or with multi-position bridges. The multi-position version is especially useful
for fast bridging of multi-position terminal strips. The bridging between non-adjacent terminals can also be handled with this version. The plug-in bridges are
