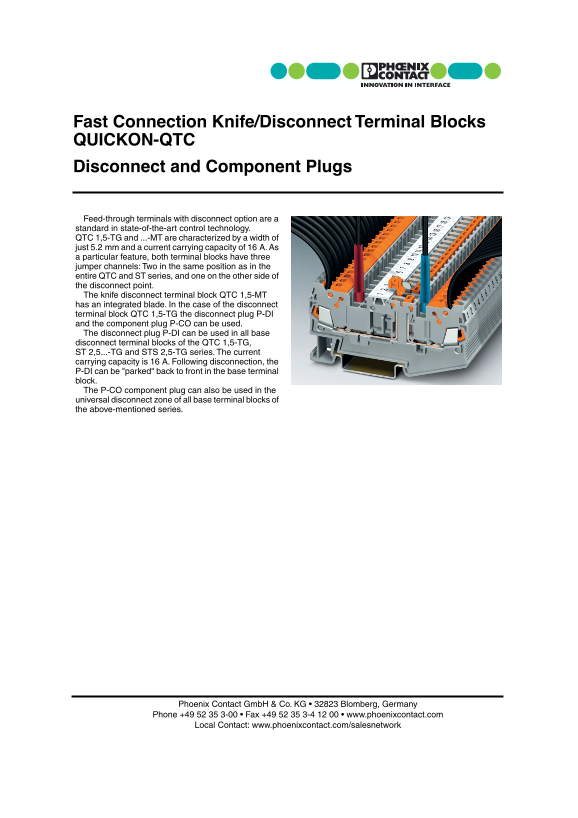

Fast Connection Knife/Disconnect Terminal Blocks QUICKON-QTC Disconnect and Component Plugs
Feed-through terminals with disconnect option are a standard in state-of-the-art control technology. QTC 1,5-TG and ...-MT are characterized by a width of just 5.2 mm and a current carrying capacity of 16 A. As a particular feature, both terminal blocks have three jumper channels: Two in the same position as in the entire QTC and ST series, and one on the other side of the disconnect point. The knife disconnect terminal block QTC 1,5-MT has an integrated blade. In the case of the disconnect terminal block QTC 1,5-TG the disconnect plug P-DI and the component plug P-CO can be used. The disconnect plug P-DI can be used in all base disconnect terminal blocks of the QTC 1,5-TG, ST 2,5...-TG and STS 2,5-TG series. The current carrying capacity is 16 A. Following disconnection, the P-DI can be "parked" back to front in the base terminal block. The P-CO component plug can also be used in the universal disconnect zone of all base terminal blocks of the above-mentioned series.
Phoenix Contact Gmb H & Co. KG • 32823 Blomberg, Germany Phone +49 52 35 3-00 • Fax +49 52 35 3-4 12 00 • www.phoenixcontact.com Local Contact: www.phoenixcontact.com/salesnetwork
Page Summary Contents For Phoenix Contact Fast Connection Knife Disconnect Terminal Blocks
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 4 |
| File Size | 374.85 KB |
| Published | June 04, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the electrical specifications of these terminal blocks?
They offer a maximum load current capacity of 16 A and support connection wire cross-sections ranging from 0.25 to 1.5 mm².
Are the disconnect plugs standardized for different series?
Yes, the P-DI plug is compatible with all base blocks (QTC/ST series), and the P-CO component plug is designed for universal use.
What accessories are needed for installation and organization?
Use partition plates (ATP) for visual/electrical separation between groups, and Zack strips to ensure standardized labeling.
