Phoenix Contact Motor Terminal Block ST 4-PE 3L Data Sheet / Manual
Summary
The ST 4-PE/3L is a space-saving, four-level spring-cage terminal block designed for wiring three-phase motors and PE conductors in a single unit. Ideal for drive and conveyor engineering applications, this connector supports high capacities up to 4 mm² while maintaining a narrow profile (6.2mm). This documentation provides comprehensive technical data, outlining connection capacity, electrical performance specifications, labeling procedures, and mounting details for precise installation by electrical professionals.

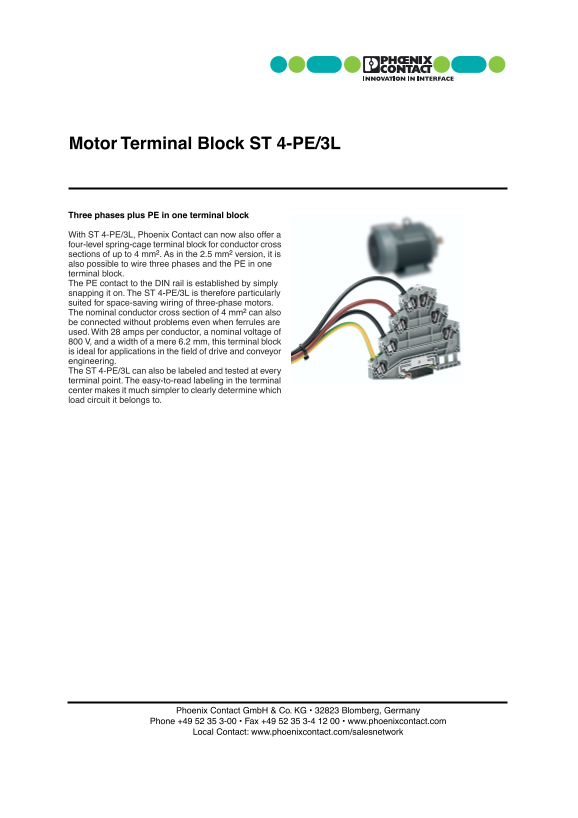

Page 1 Text Content
Motor Terminal Block ST 4-PE/3L
Three phases plus PE in one terminal block
With ST 4-PE/3L, Phoenix Contact can now also offer a four-level spring-cage terminal block for conductor cross sections of up to 4 mm2. As in the 2.5 mm2 version, it is also possible to wire three phases and the PE in one terminal block. The PE contact to the DIN rail is established by simply snapping it on. The ST 4-PE/3L is therefore particularly suited for space-saving wiring of three-phase motors. The nominal conductor cross section of 4 mm2 can also be connected without problems even when ferrules are used. With 28 amps per conductor, a nominal voltage of 800 V, and a width of a mere 6.2 mm, this terminal block is ideal for applications in the Þeld of drive and conveyor engineering. The ST 4-PE/3L can also be labeled and tested at every terminal point. The easy-to-read labeling in the terminal center makes it much simpler to clearly determine which load circuit it belongs to.
Phoenix Contact Gmb H & Co. KG 32823 Blomberg, Germany Phone +49 52 35 3-00 Fax +49 52 35 3-4 12 00 www.phoenixcontact.com Local Contact: www.phoenixcontact.com/salesnetwork
Page Summary Contents For Phoenix Contact Motor Terminal Block ST 4-PE 3L Data Sheet / Manual
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 3 |
| File Size | 152.94 KB |
| Published | June 05, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the ST 4-PE/3L block suitable for?
It's ideal for space-saving wiring of three-phase motors in drive and conveyor engineering applications.
Can I use large conductors with this terminal block?
Yes, it handles up to a nominal conductor cross section of 4 mm, even when ferrules are used.
How does the ST 4-PE/3L improve wiring organization?
The terminal center provides easy-to-read labeling, making it simple to identify which load circuit is attached.
What is the maximum current this terminal block can handle?
It has a nominal maximum load current of 32 A.
