Phoenix Contact ST 2,5-PE 3L Four-Level Spring Cage Motor Terminal Block
Summary
This robust motor terminal block is engineered for reliable, compact wiring solutions, particularly optimized for three-phase industrial loads. It features a versatile four-level design with dedicated earth connection (PE) and uses an easy snap-on mechanism for streamlined installation. The accompanying manual provides comprehensive technical data, electrical ratings, wiring capacity details, and assembly instructions, ensuring proper integration into professional electrical systems. Ideal for electrical engineers, maintenance personnel, and industrial installers requiring high reliability in motor control applications.

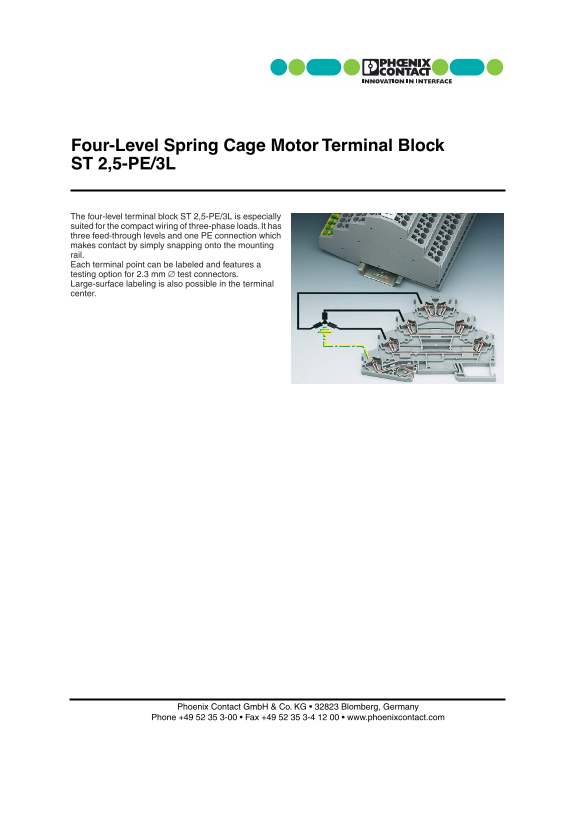

Page 1 Text Content
Four-Level Spring Cage Motor Terminal Block ST 2,5-PE/3L
The four-level terminal block ST 2,5-PE/3L is especially suited for the compact wiring of three-phase loads. It has three feed-through levels and one PE connection which makes contact by simply snapping onto the mounting rail. Each terminal point can be labeled and features a testing option for 2.3 mm ∅ test connectors. Large-surface labeling is also possible in the terminal center.
Phoenix Contact Gmb H & Co. KG • 32823 Blomberg, Germany Phone +49 52 35 3-00 • Fax +49 52 35 3-4 12 00 • www.phoenixcontact.com
Page Summary Contents For Phoenix Contact ST 2,5-PE 3L Four-Level Spring Cage Motor Terminal Block
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 2 |
| File Size | 146.98 KB |
| Published | June 15, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the ST 2,5-PE/3L terminal block designed for?
It is suited for compact wiring of three-phase loads, featuring three feed-through levels and one PE connection.
Does the terminal block support testing connections?
Yes, each terminal point has a testing option for 2.3 mm diameter test connectors.
What are the supported cross-section ranges for stranded wires?
It supports a range from 0.25 mm² to 2.5 mm² for both ferrule and non-ferrule types.
Is there a specific stripping length provided for connection cables?
Yes, the stipulated stripping length is 10 mm.
